* Based on 4x4, there are 2 Cover-Caps per cabinet, so attach the sensor by removing only the
Cover-Cap as shown. (Installed when reclaimed, but not used)
※ Select the sensor closest to the hole in the bezel and use it.
7. Frame Bezel installation
◇ Bezel installation
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16

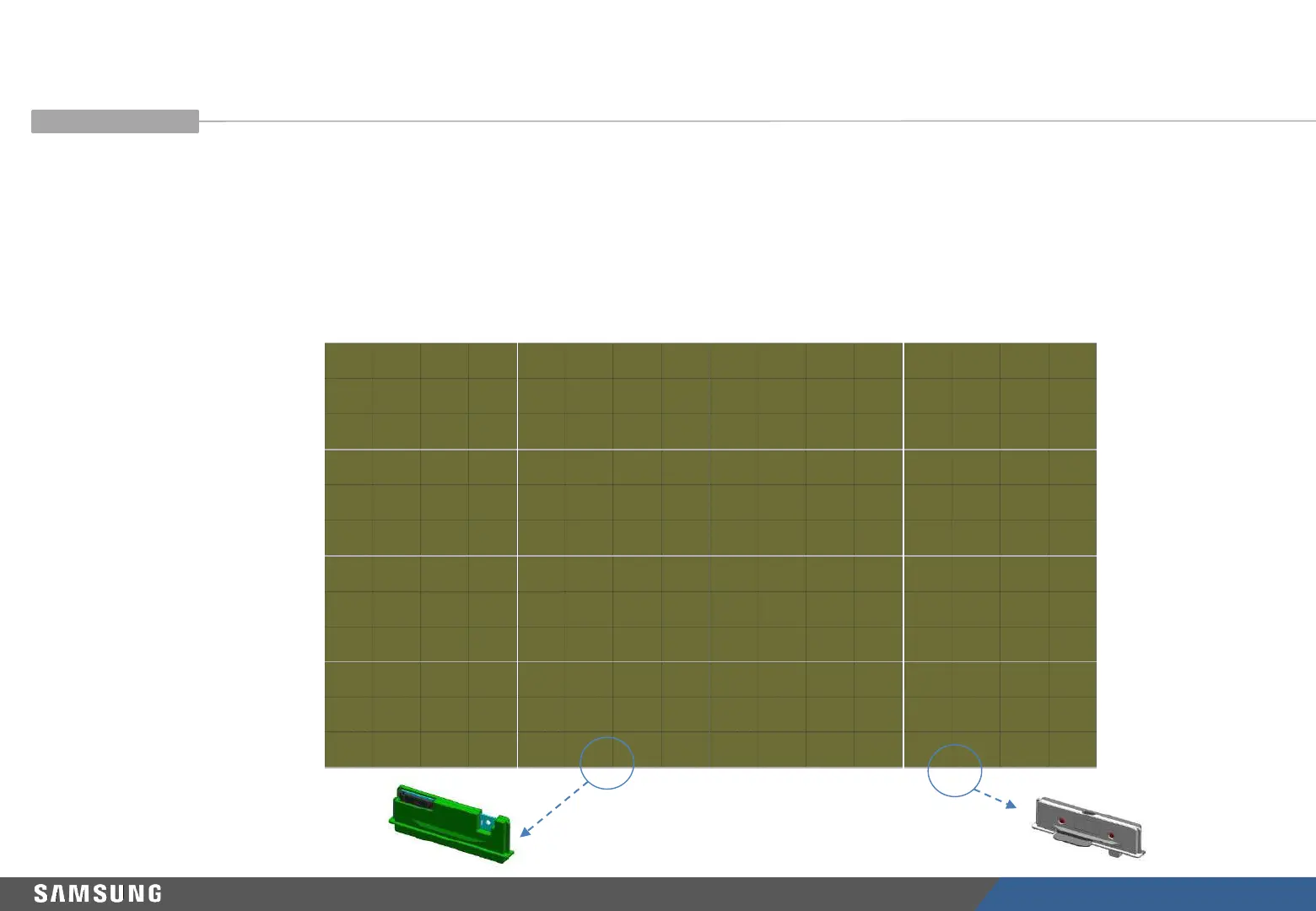

SENSOR BOTTOM
(Bluetooth/Wi-Fi)
SENSOR BOTTOM
(IR/Light sensor)
