108 S&C Instruction Sheet 461-504
Informational and Settings Screens
When Connected to the Service Center Configuration Software via the
Communication Gateway
When connected to the TripSaver II Service Center Conguration Software via the
TripSaver II Communications Gateway instead of the USB transceiver, the Disable and
Enable buttons will be visible. The DNP Remote Drop Open feature can be enabled
or disabled using these buttons. See Figure 150.
Note: Disabling or enabling the DNP Remote Drop Open feature from the service
center conguration software’s DNP Remote Drop Open screen will disable or enable
DNP Remote Drop Open mode in the communication gateway. See S&C Instruction
Sheet 461-509, “TripSaver® II Communications via Gateway: Installation, Operation,
and Conguration,” for more information about conguring this feature.

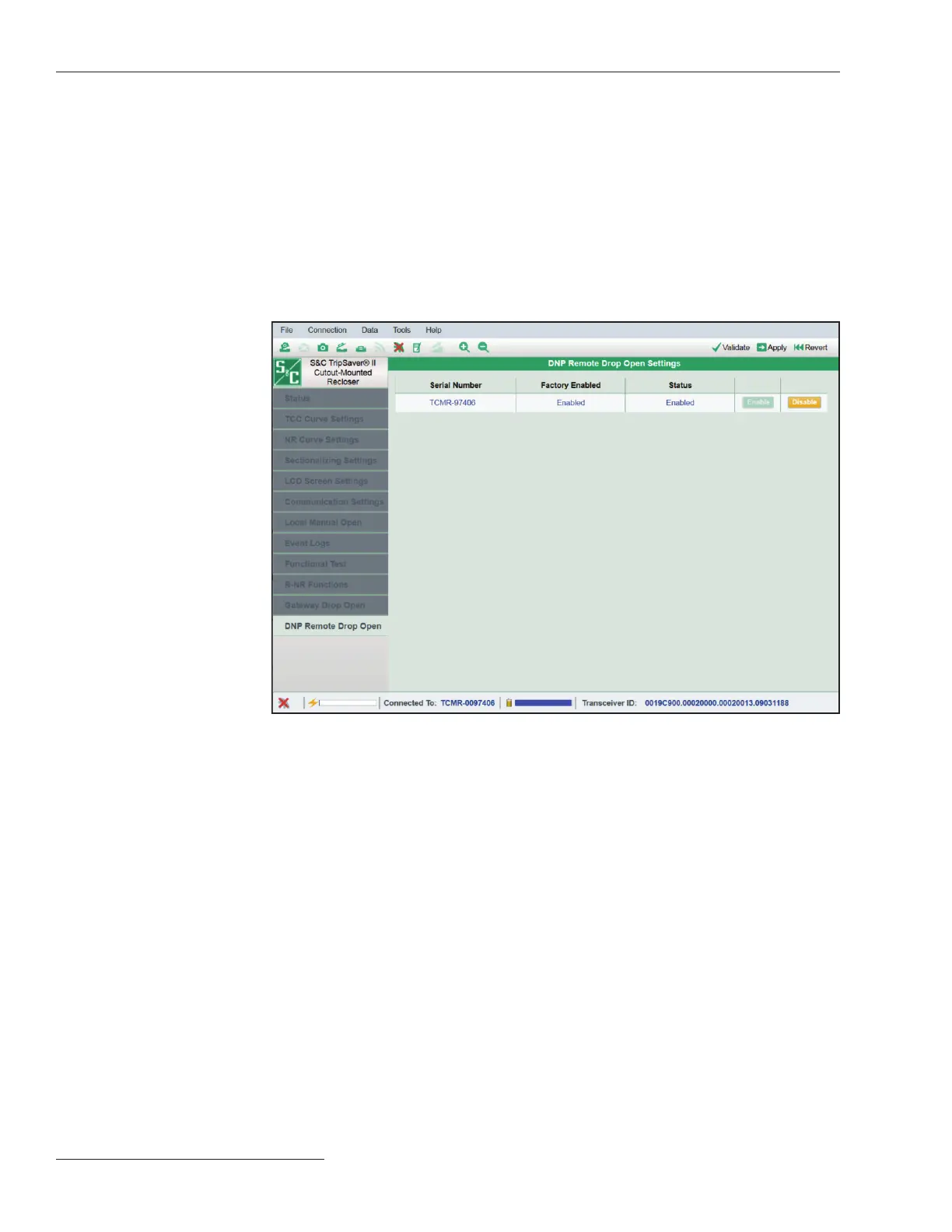

Figure 150. The DNP Remote Drop Open screen, when connected via the communication
gateway.
