76 S&C Instruction Sheet 461-504
Informational and Settings Screens
The TripSaver II recloser uses a non-volatile liquid-crystal-display (LCD) to show various
status and operational information. The screen has two operating modes: Normal screen
and Display screen. The LCD shows the Normal screen most of the time. The Display
screen parameters may be viewed by toggling the MODE SELECTOR. TripSaver II reclos-
ers will scroll through the user-congurable Display screen items the specied number
of times before the screen returns to the Normal screen.
Use the LCD Screen Settings screen to select the desired screens from a list of
available LCD Display screen items. See Figure 108.
LCD Screen Settings
Screen

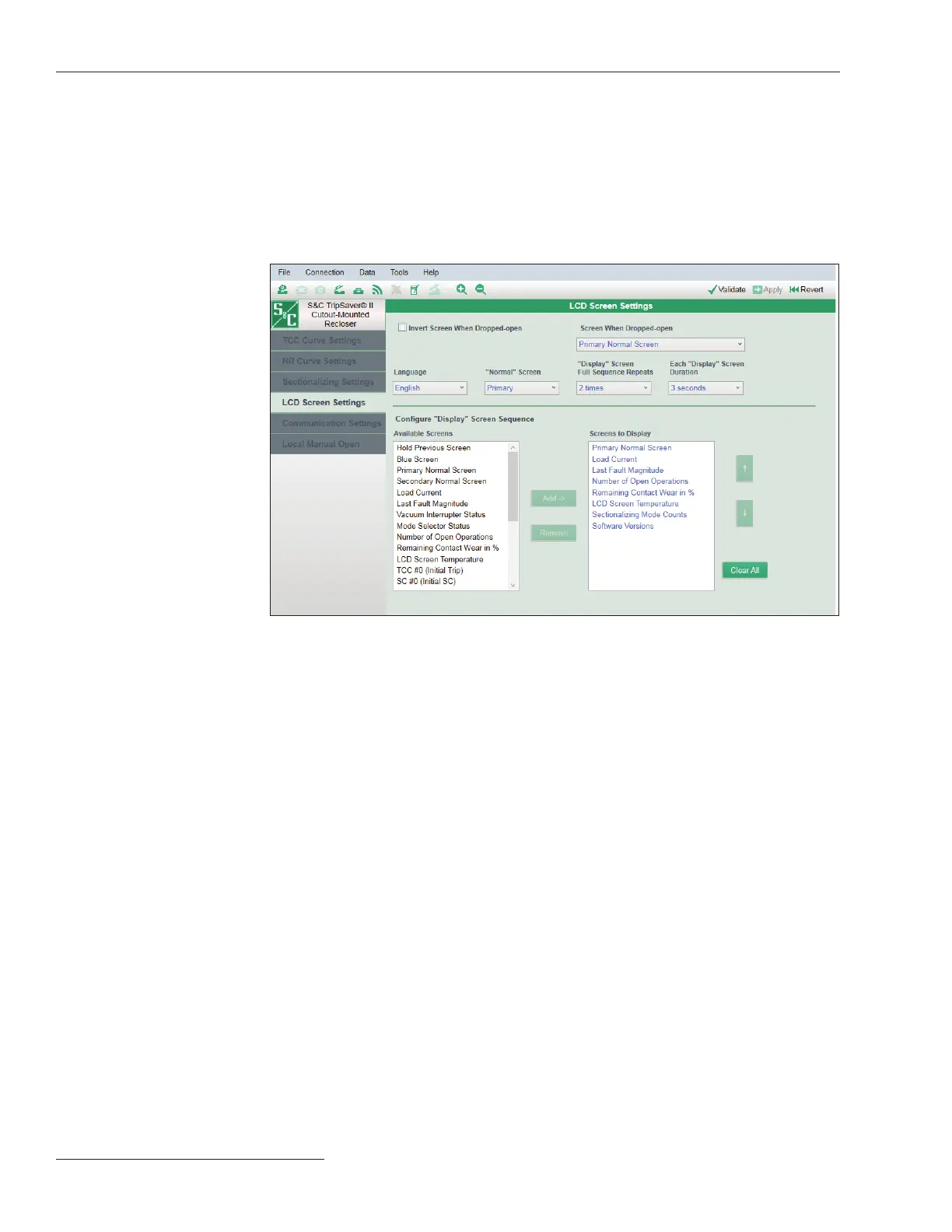

Figure 108. The LCD Screen Settings screen.
Invert Screen When Dropped-open (check box). Select this check box to invert the
LCD screen when the connected TripSaver II recloser is in the Dropped-Open (horizon-
tal) position. The inverted display is easier to read from the ground when a TripSaver II
recloser is in the Dropped-Open position.
Screen When Dropped-open. Select from the list the desired screen to display after
a Drop-Open event.
See Appendix B on page 125 for the available options.
Language. Select from the list the display language for the LCD screen. (Note: This is
not the language for the conguration software.) The following languages are supported:
English, Spanish, Portuguese, French, Chinese, and Arabic.
Normal Screen. Select from the list. Two Normal screen options are available. The
Normal screen is the screen that displays most of the time. See Figure 108 and Table 1
on page 77.
