S&C TripSaver II User Manual

S&C Instruction Sheet 461-504 15
Installing the USB Transceiver and Power Supply
A TripSaver II recloser can be powered by the power module to enable its communica-
tion capability. Complete the following steps before attempting to communicate with a
TripSaverII recloser.
Note: TripSaver II Service Center Conguration Software has an ofine setting mode
that allows TripSaver II recloser settings to be congured and saved without communi-
cating with a recloser.
STEP 1. Plug the connector of the ac adapter into the opening of the power module.
See Figure 12.
Assembling the Power
Supply and Powering
the TripSaver II
Recloser

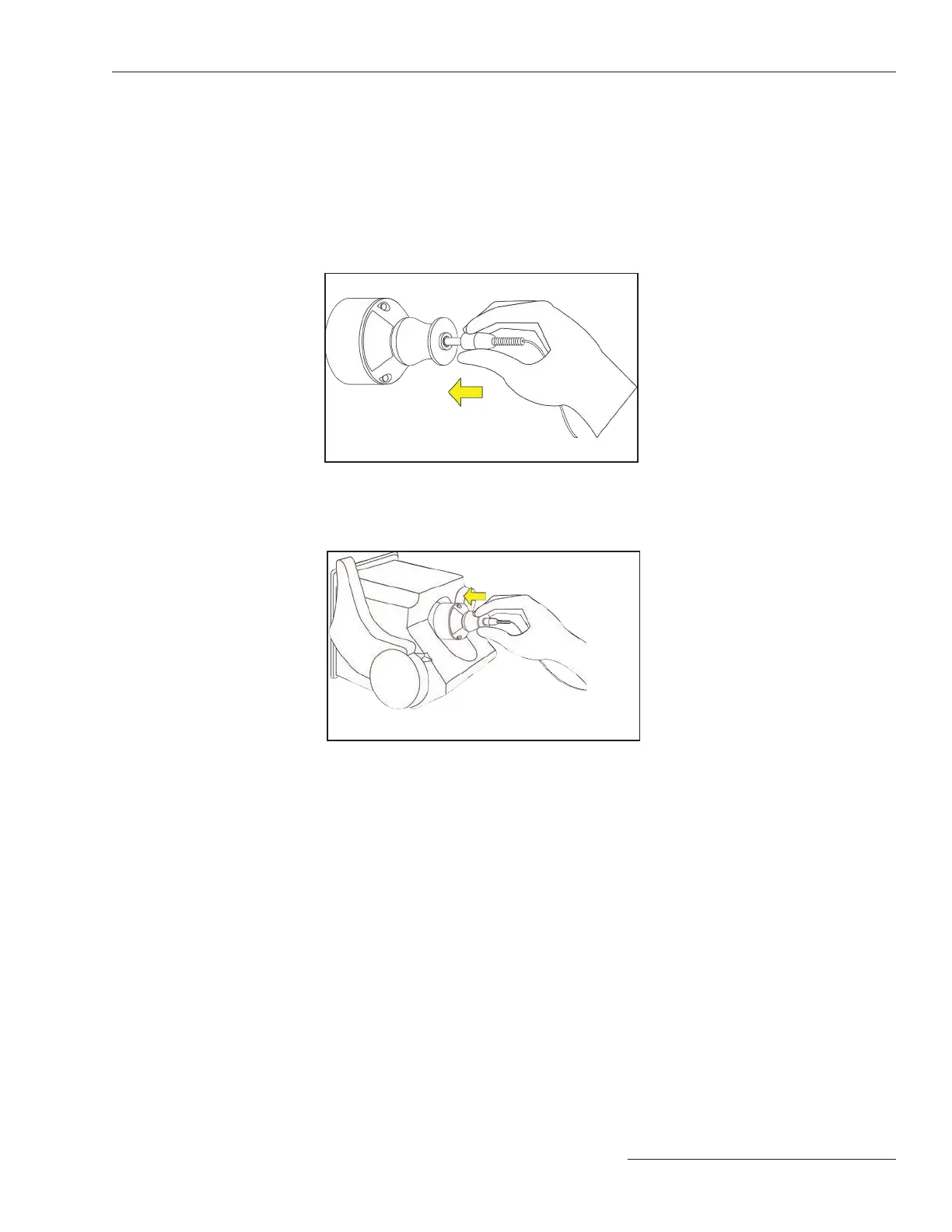

Figure 12. Inserting the power connector into the power module.
STEP 2. Position the power module near the base of the TripSaver II recloser; the
module will be held in place magnetically. See Figure 13.
Figure 13. Attaching the power module to the TripSaver II recloser.
STEP 3. Install the proper power outlet plug adapter onto the ac adapter. See Figure 14
on page 16.
