S&C TripSaver II User Manual

S&C Instruction Sheet 461-504 19
Using TripSaver
®
II Service Center Conguration Software Version 2.0
TripSaver II Service Center Conguration Software is used to communicate with and
congure TripSaver II Cutout-Mounted Reclosers. The user interface is organized in
the following way:
Menu Bar and Quick Access Toolbar
At the top of the user interface is a menu bar that has a number of commands. Below
the menu bar is a quick access toolbar with the most frequently used commands found
in the menu bar. See Figure 20.
Overview
Menu bar
Quick access
toolbar

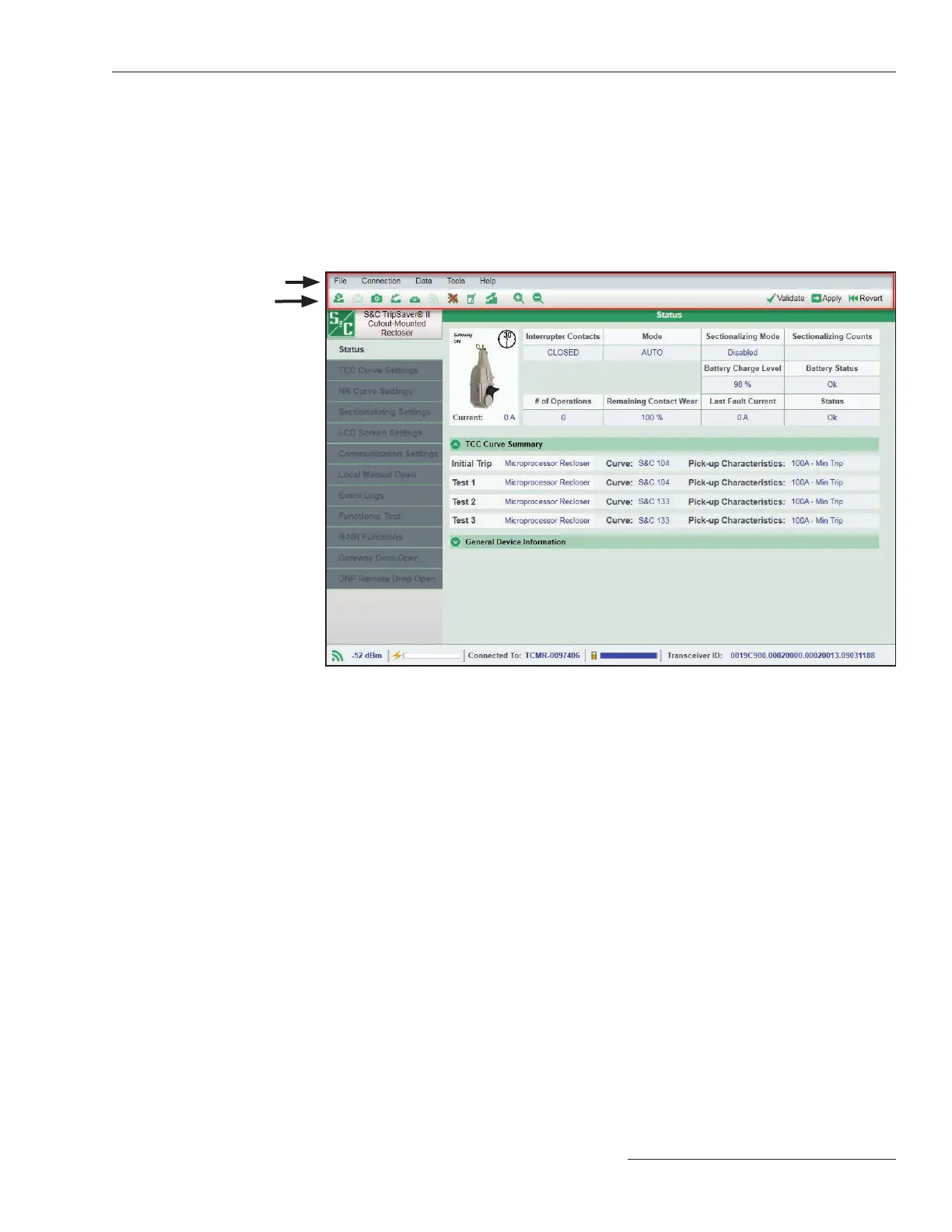

Figure 20. The menu bar and quick access toolbar found on all screens.
