Informational and Settings Screens
This Temporary Auto mode can be disabled by clicking on the Disable Temporary
Auto Post-Fault Wakeup mode in Remote-NR button. With Temporary Auto mode
disabled and the recloser in R-NR mode, the recloser will use the NR Curve settings
instead. See Figure 146.

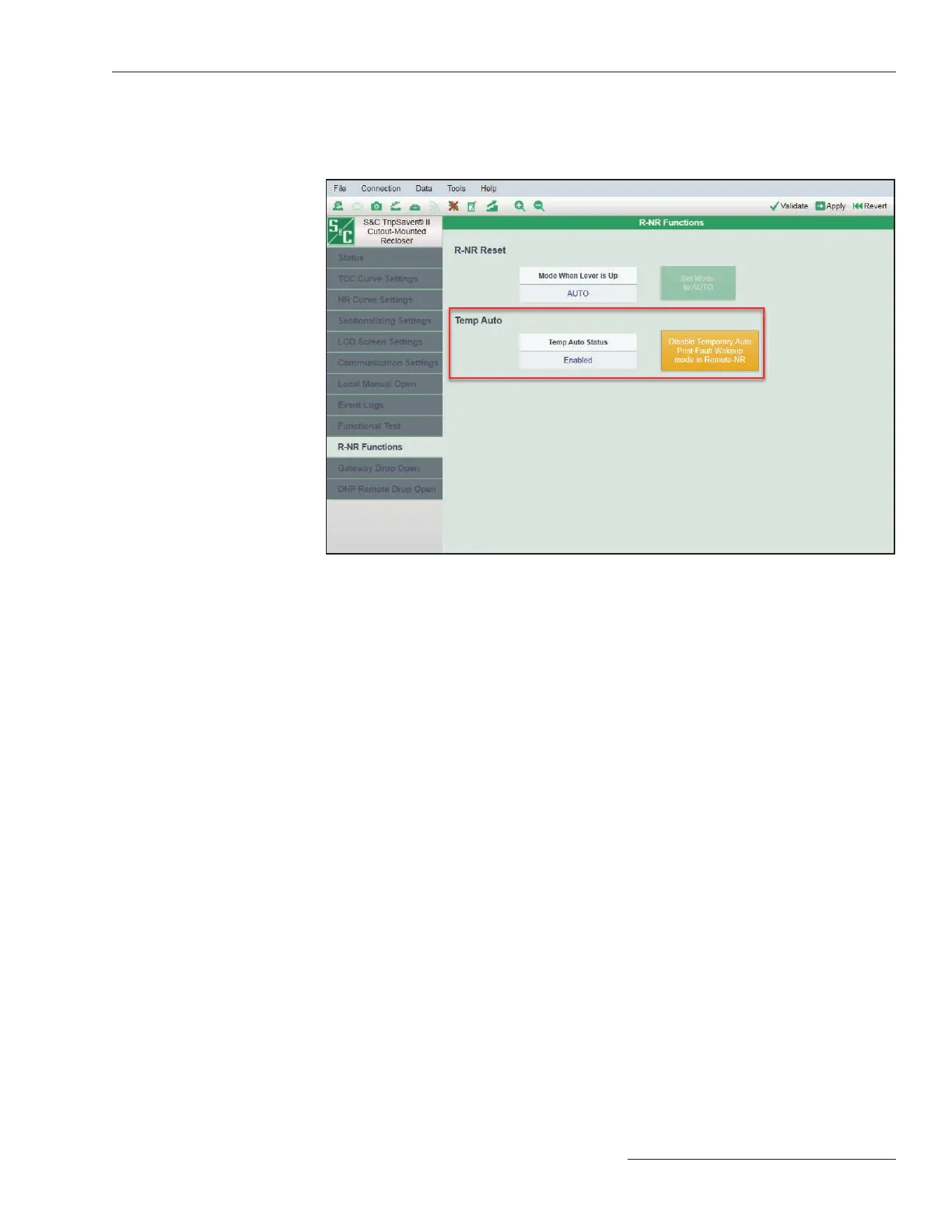

Figure 146. Enable or disable Temporary Auto mode when the recloser is in R-NR mode.
For more information, see Appendix D, “Understanding the Active TCC Curve When
the TripSaver II Recloser is in R-NR Mode” on page 130.
The Gateway Drop Open screen is used with the S&C TripSaver II Communications
Gateway to allow the TripSaver II recloser to drop open by means of a local signal from
the TripSaver II Communications Gateway. It can only be used if the TripSaver II recloser
has been congured using the Gateway Mode setting under the Communication
Settings screen and is connected to a TripSaver II Communications Gateway, and if the
appropriate settings for Gateway Drop Open mode are congured in the communica-
tions gateway. See S&C Instruction Sheet 461-509, “TripSaver® II Communications Via
Gateway: Installation, Operation, and Conguration,” for more details on conguring
the TripSaver II recloser to work in Gateway Drop Open mode.
When the service center configuration software is connected to the TripSaver II
recloser via the USB transceiver and power module, the status of the TripSaver II recloser’s
Gateway Drop Open configuration will appear in the Gateway Drop Open Settings screen
when the software is in the Connected mode. See Figure 147 on page 106.
Gateway Drop Open
Screen
