S&C Instruction Sheet 461-504 33
Data Menu
Settings are temporarily stored in the edit buffer on the computer and are not active
until they have been applied to the TripSaver II recloser. The following commands
manage settings between the edit buffer and the active-settings area of the control.
The Validate command checks settings against validation rules that de๎ne a valid con-
๎guration. This function is available for the Standalone (of๎ine) mode, the Connected
(online) mode, and when a snapshot ๎le is open. To validate settings in the edit buffer
without applying them, select the Data>Validate option from the Main menu or click
the Validate icon
in the quick access toolbar.
If the validation procedure detects an error, a red error message explaining the error
will be displayed in the Validation Results panel at the bottom of the main screen area.
Validate

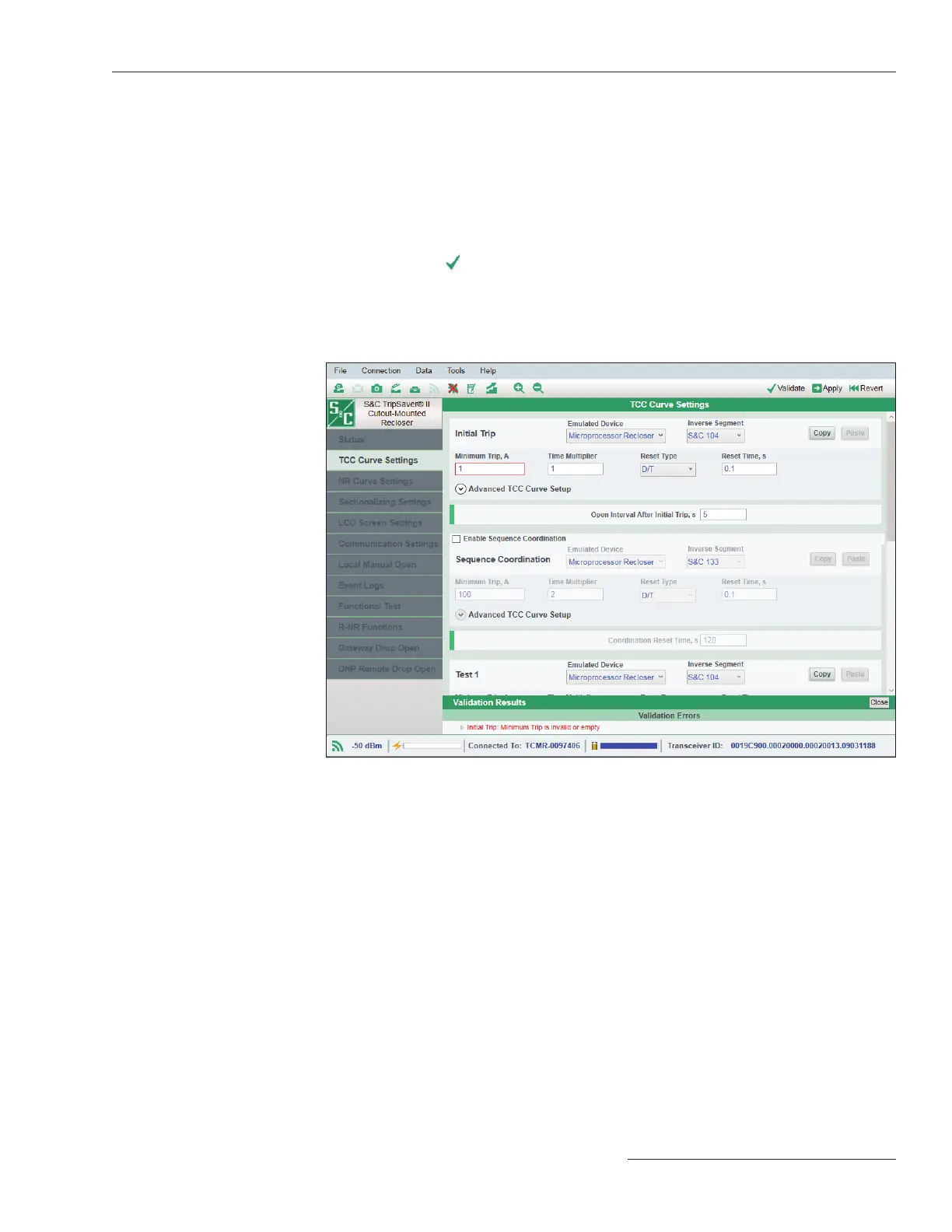

Figure 45. The Validation Results message.
See Figure 45.
To view a setpoint field that failed the validation rules, expand the description by
double-clicking on the red error message and then single-clicking on the name of the
field in black color in the Validation Results panel, as indicated in Figure 46 on page 34.
The border of the erroneous field will be highlighted in red.
Note: When validating settings in Standalone mode, the service center configura-
tion software will provide accurate validation for settings for a 100-A continuous
TripSaver II recloser. When validating settings in Connected mode, the service
center configuration software will detect the actual continuous current rating of
the TripSaver II recloser (40 A, 100 A, or 200 A) and validate settings accordingly.
If a setpoint value entered is out of range, the border of that edit field will be
