Shipping and HandlingShipping and Handling
A complete TripSaver II Conguration Kit, which weighs about 4 lbs. (1.8 kg) and works
with both 15-kV and 25-kV TripSaver II reclosers, consists of the following items stored
in a carrying case:
Packing
Ac adapter
TripSaver II power module
USB transceiver
Carrying case
Power outlet plug adapters
Extension cord for ac adapter
Blank adhesive labels for user
configuration parameters [in pairs: one
white base and one transparent overlay;
[90 mm × 94 mm (3 inches × 3
inches)]. Label attaches to the left side of
the lower TripSaverII recloser housing.

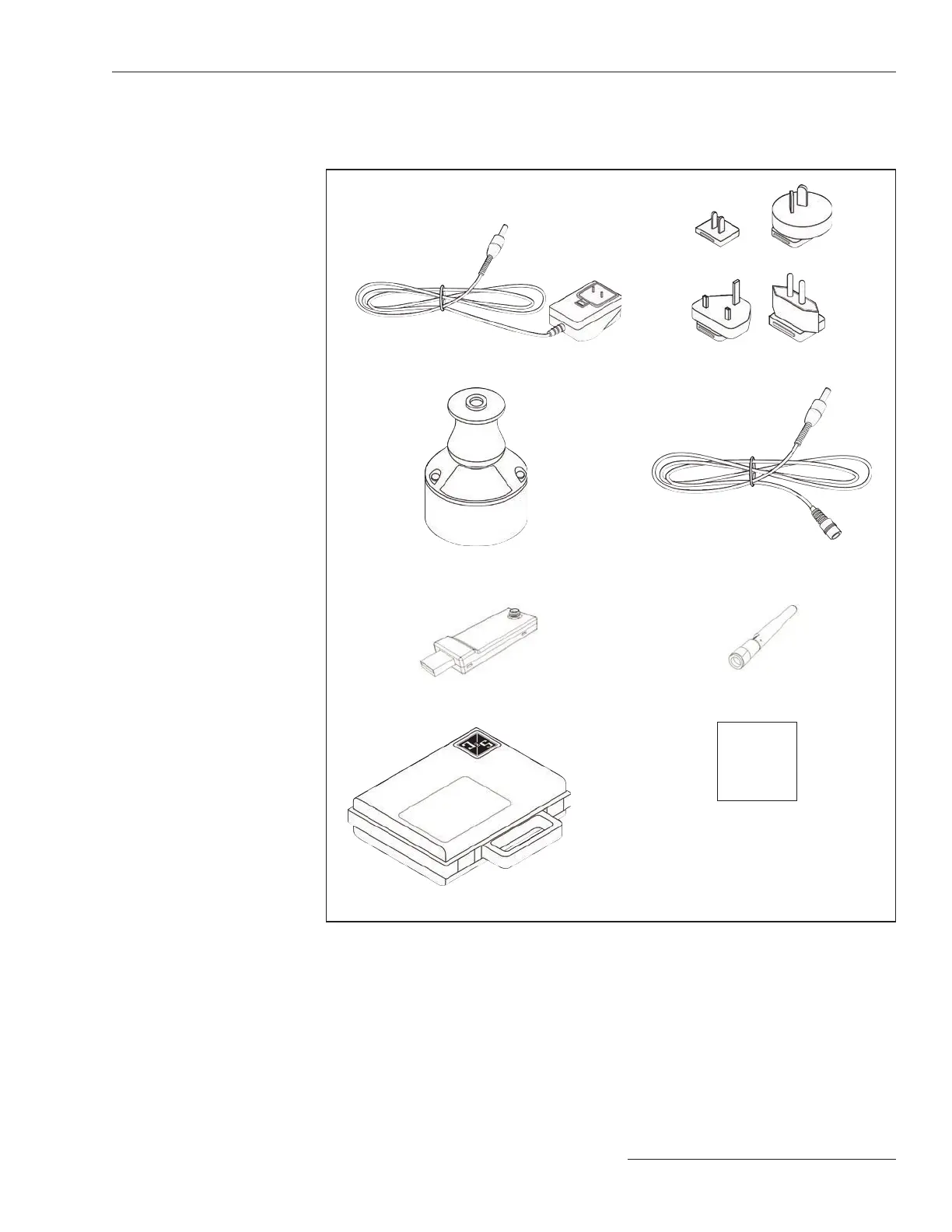

Figure 1. Components of the S&C TripSaver II Configuration Kit.
Antenna for USB Transceiver
