File Menu
Previously saved setpoints, either from a setpoints le (.xspt) or from a saved snapshot
le (.xdss), can be loaded into the edit buffer le by selecting the File>Load Setpoints
option from the Main menu or by clicking the Load Setpoints icon
in the quick access
toolbar. When the setpoint changes have not been saved or applied in the edit buffer, an
Operation: Load Setpoints dialog box will open. See Figure 34.
Note: When loading a setpoints le made in SCC Software version 1.8 (or earlier) to a
TripSaver II recloser using version 1.9 (or later) rmware, the older setpoints le will
congure the TripSaver II recloser with the 1.8 (or earlier) settings by default. If any of the
new functions available in SCC Software version 2.0 are required, they must be manually
set after the older setpoints le is loaded.
Click on the Discard button to load setpoints without saving settings. Click on the
Save button to save setpoints in the edit buffer first. Or click on the Cancel button to
quit the Load Setpoints process.
Load Setpoints
The Load Setpoints dialog box opens to allow browsing and selecting a setpoint file or
a snapshot file to load. When the setpoints are loaded successfully, the message shown
in Figure 35 will open.
Note: Loaded setpoint values will not take effect in the recloser until they have been
applied.

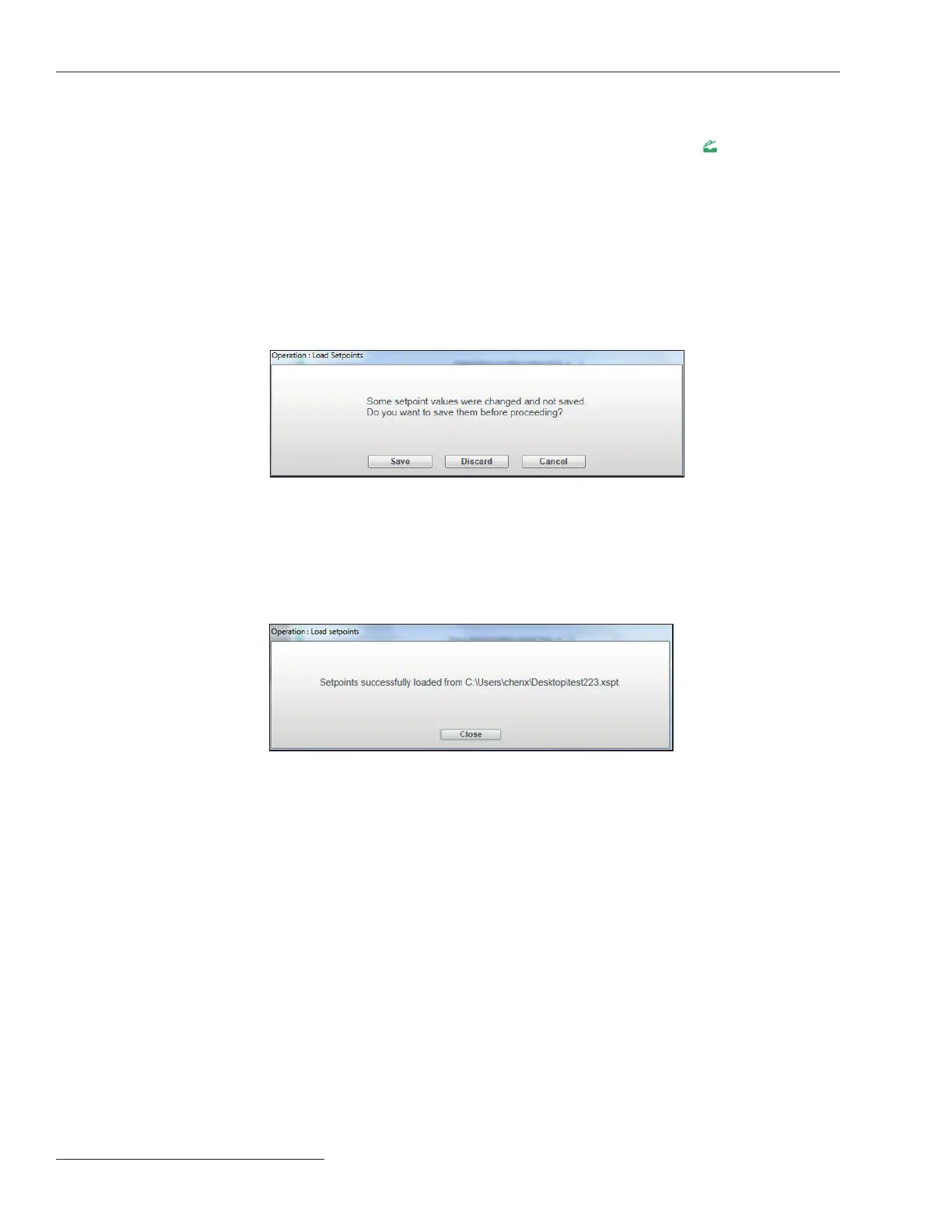

Figure 34. The Operation: Load Setpoints dialog box for saving changes before a Load
Setpoints operation.
Figure 35. The dialog box noting setpoints were loaded successfully.
