16 S&C Instruction Sheet 461-504

Installing the USB Transceiver and Power Supply

A Transceiver ID unique to each TripSaver II recloser is needed to establish communi-

cations between the computer and the recloser. The ID consists of a 32-digit character

string in the format of:

“0019C900.00020000._ _ _ _ _ _ _ _ . _ _ _ _ _ _ _ _”.

The Transceiver ID for the TripSaver II recloser can be obtained through the

following methods:

• Method 1: The Transceiver ID is embedded in the QR code laser-etched onto the lower

housing of each TripSaver II recloser. See Figure 16 on page 17. Download a free QR

scanner app to a smart phone and scan the QR code to obtain the Transceiver ID.

• Method 2: Rotate the MODE-SELECTOR lever to initiate the Display screens after

the TripSaver II recloser is powered up. The LCD screen will begin to scroll. The rst

screen displayed contains the TransceiverID. See Figure 17 on page 17.

Note: This screen does not appear when communication is disabled or when no

screens are added to the Display screen sequence.

Obtaining the

Transceiver ID

STEP 4. Plug the ac adapter into a wall outlet. See Figure 15.

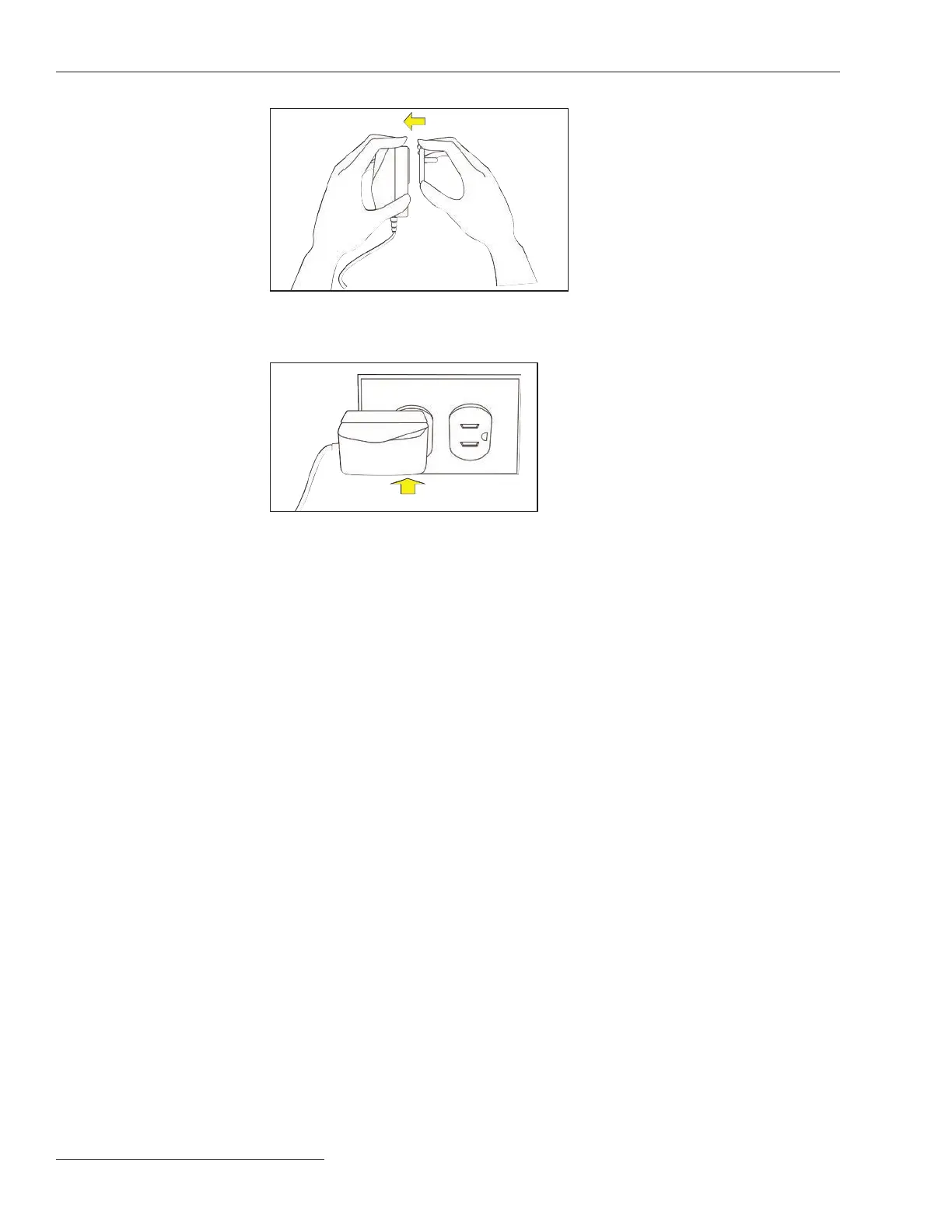

Figure 15. Plugging the ac adapter into a live outlet.

To verify the TripSaver II recloser is powered up, rotate the MODE-SELECTOR lever

and observe the LCD screen. If the LCD screen begins to scroll, it indicates the recloser has

been successfully powered.

Figure 14. Installing the outlet plug adapter.
