S&C Instruction Sheet 461-504 39
Tools Menu
Open after save. Select the check box to open the file automatically after it is saved.
Report. Click on this button to generate a report. This button is grayed out when none
of the check boxes in the What to report field are selected or when the Save to file
path is left empty.
Cancel. Click on this button to exit the Create Report process.
When a report file is created, an information message similar to that shown in
Figure 51 will be displayed.

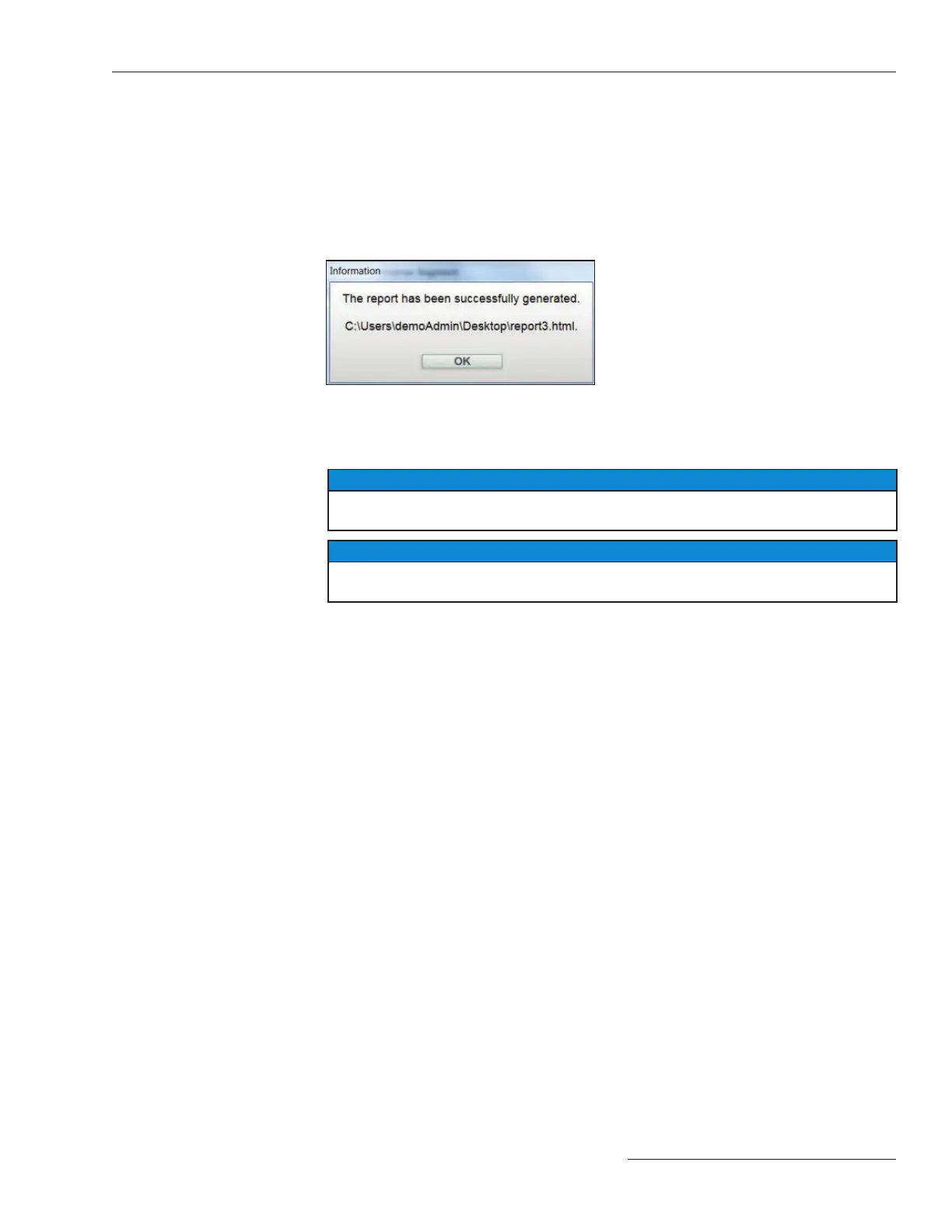

Figure 51. The dialog box showing a report successfully generated and its file location.
NOTICE
The TripSaver II recloser must be removed from the utility pole and placed near the
USB Transceiver before performing a firmware update.
NOTICE
DO NOT perform a firmware update using the cordless power module. Use the corded
power module attached to an appropriate ac power source.
TripSaver II Service Center Conguration Software 2.0 (this release) is backward-
compatible with all TripSaver II recloser rmware versions: 2.0, 1.9, 1.8, 1.7, 1.6, 1.5, 1.3,
and 1.0. It can update TripSaver II recloser rmware versions 1.5, 1.6, 1.7, and 1.8 to 1.9,
and rmware version 1.0 to 1.3.
Because of changes in TripSaver II recloser hardware, service center configuration
software version 2.0 is unable to update TripSaver II reclosers loaded with firmware
versions 1.3 to the latest firmware version 2.0. A TripSaver II recloser with firmware
version 1.3 can no longer be updated. Also, because of hardware changes, TripSaver
II reclosers loaded with firmware versions 1.8, 1.7, 1.6, and 1.5 can only be upgraded
to firmware version 1.9. A TripSaver II recloser with firmware version 1.9 cannot be
updated to 2.0.
To update the rmware in the TripSaver II recloser, complete the following steps:
STEP 1. Connect to the TripSaver II recloser with a computer loaded with service
center conguration software v2.0, plug a USB transceiver into the USB port of
the computer and attach the ac power module to the TripSaver II recloser.
Firmware Update
