STEP 2. Make a note of the serial number, starting with “TCMR,” of the TripSaver II
recloser to be updated. See Figure 52. This number is also etched on the body
of the TripSaver II recloser.

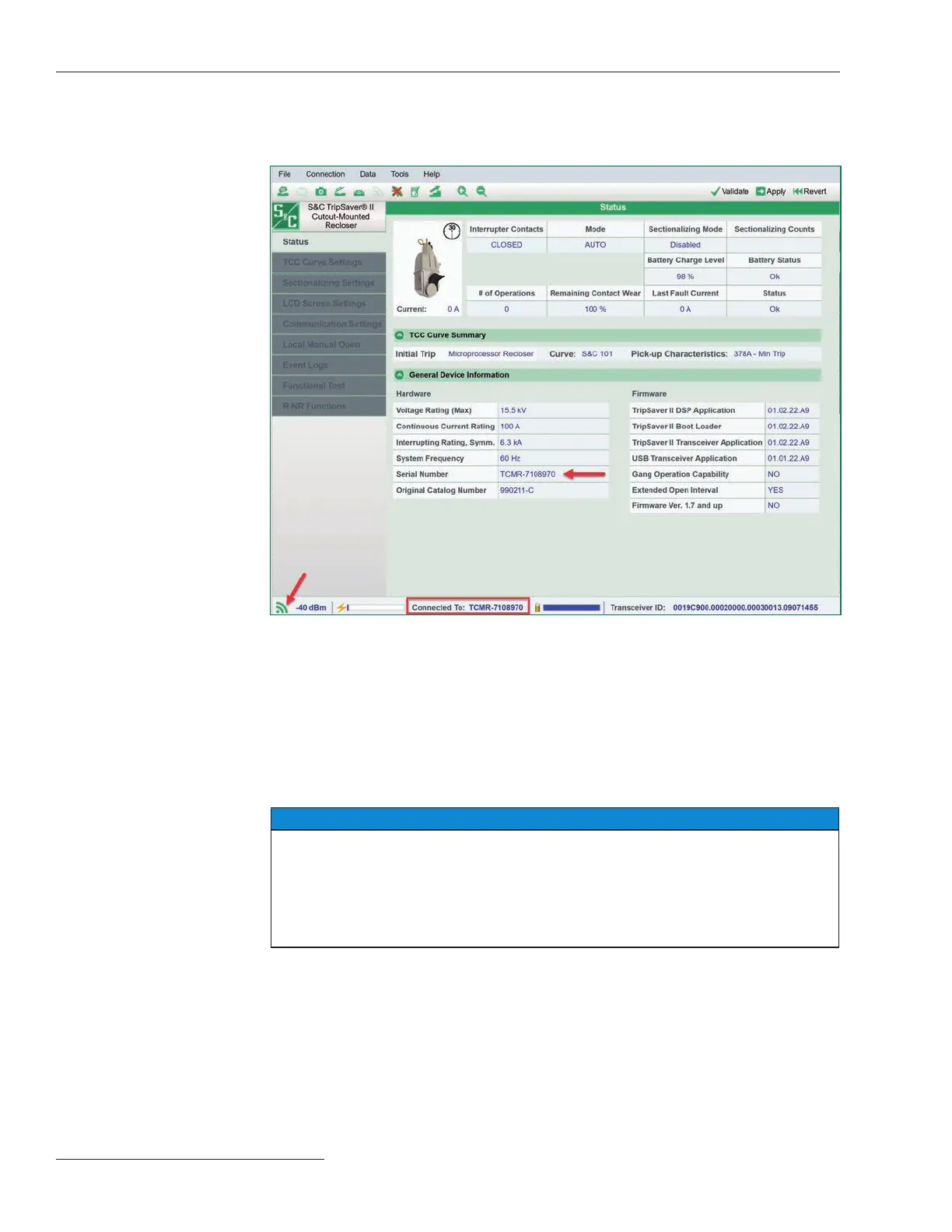

Figure 52. The TripSaver II recloser serial number and Signal Strength indicator
locations.
STEP 3. Check that the Signal Strength indicator on the left side of the Additional
Information Bar is green. See Figure 52. See the “Additional Information Bar”
section on page 49 for more information on the Signal Strength indicator.
Then, optimize the signal strength between the TripSaver II recloser and USB
transceiver, as described in the “Optimizing Signal Strength” section on
page 109. If in an area with strong signal interference, or if the Signal
Strength indicator is yellow or red, do not try to update the TripSaver II
recloser’s rmware.
NOTICE
DO NOT unplug the USB transceiver or power down the recloser until the Firmware
Update process is completed.
When the Service Center Configuration Software is communicating with a
TripSaver II recloser via the communications gateway, the firmware update function
will be disabled. Firmware updates can only be done using the USB transceiver from
the Service Center Configuration Kit.
