S&C Instruction Sheet 461-504 89
Informational and Settings Screens
Number of Drop-Opens due to Overcurrent. This is the number of times the
TripSaver II recloser has dropped open because of an overcurrent condition. See
Figure 123 on page 88.
Number of Drop-Opens Due to Overload. This is the number of times the TripSaverII
recloser has dropped open because of an overload condition.
Number of Drop-Opens Due to Sectionalizing. This is the number of times the active
Sectionalizing feature has counted up to the specied number and commanded the
TripSaver II recloser to drop open.
Number of Drop-Opens Due to Local Manual Open. This is the number of times the
TripSaver II recloser has dropped open, triggered by the Local Manual Open feature.
Total Number of Drop-Opens. This is the total number of times the TripSaver II
recloser has dropped open, including the number of drop-opens during a functional test
and triggered by the Local Manual Open feature.
Trip Events
The TripSaver II Service Center Conguration Software allows viewing the relative time
stamp, duration, and current level of the last 25 interrupter trip events in the Trip Events
table. When the table is full (loaded with 25 events), each new event will overwrite the
oldest event in the table. For example, the 26th event will overwrite the 1st event shown
in the table.
Note: While the Trip Events table only displays the last 25 interrupter trip events for user
review, the rmware uses a separate memory to store full event logs for future engineer-
ing analysis use. The full log can be obtained by saving a snapshot le.
The Trip Events table is located in the lower section of the Event Logs screen.
Five columns of data are presented. See Figure 124.

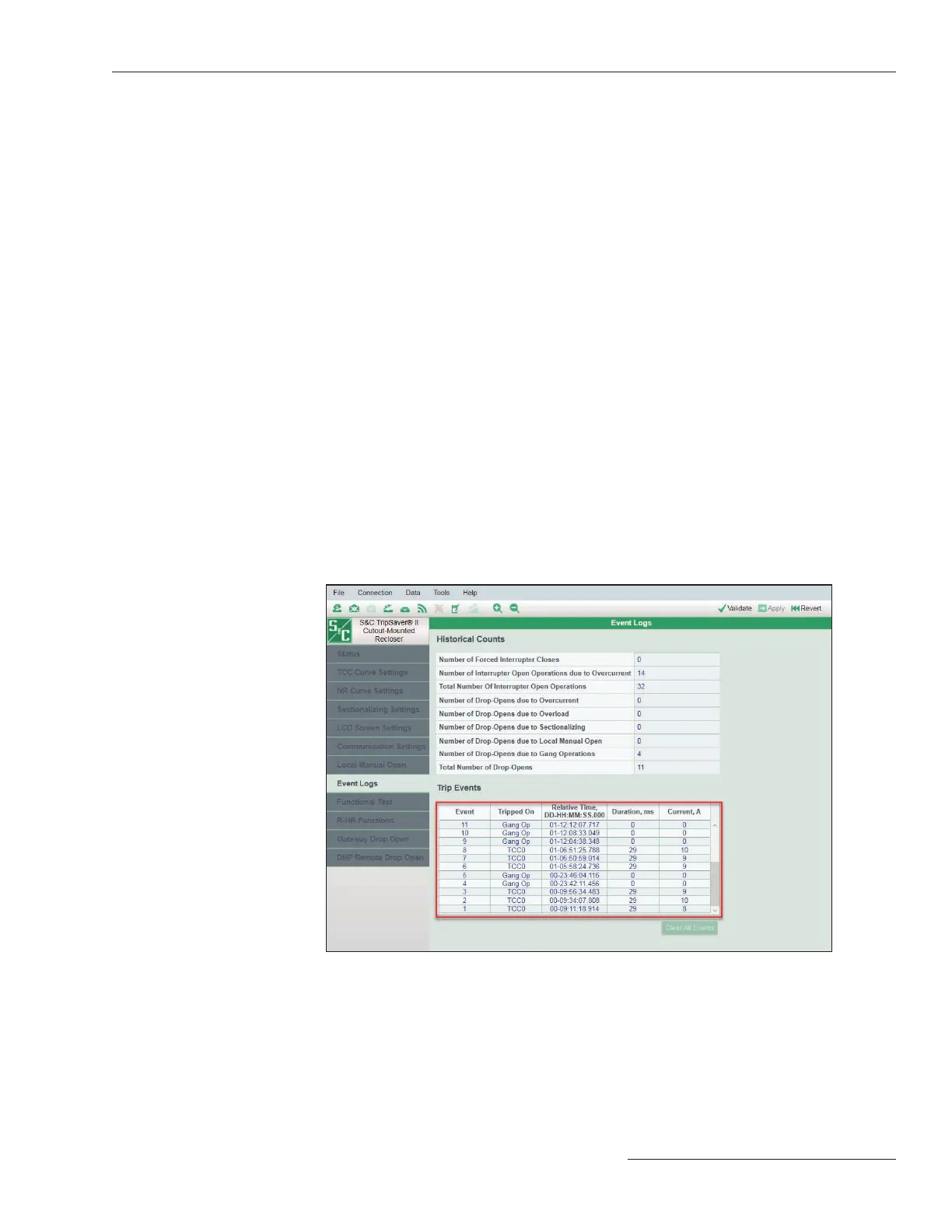

Figure 124. The Trip Events table.
