-162-

Troubleshooting

- 162 -

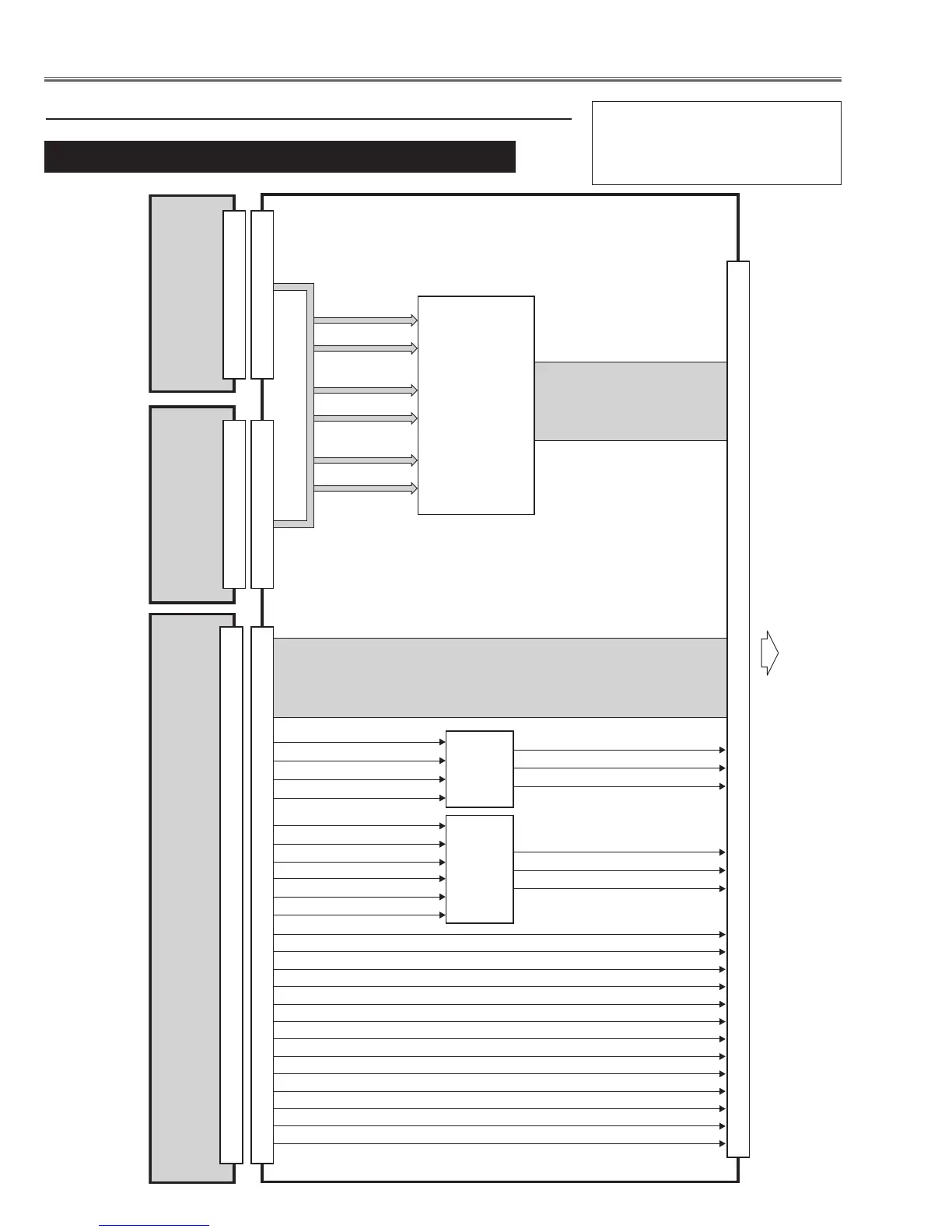

Check the MOTHER board.

Check the signals (RGB signals, H/V

sync signals, Component signals and

vide signals) at connector "K90E".

No Picture

IC9071

RGB SW

A_R1

A_G1

A_B1

SLOT_R

SLOT_G

SLOT_B

DSUB_R

DSUB_G

DSUB_B

DSUB_H

DSUB_V

5BNC_R

5BNC_G

5BNC_H

5BNC_V

S_Y

S_C

SCART_CV

5BNC_B

IC9091

SYNC SW

SLOT_H

SLOT_V

SLOT_C

A_R2

A_HS1

A_VS1

A_HS2

A_VS2

A_G2

A_B2

IC9001

K90BK90A

TO MAIN BOARD “K22A”

SLOT2

SLOT1

K90E

LVDS SW

K80A

K90C

THS_SLOT TCLK1_SLOT

TVS_SLOT TCLK2_SLOT

TA2_SLOT TA1_SLOT

TB2_SLOT TB1_SLOT

TC2_SLOT TC1_SLOT

TD2_SLOT TD1_SLOT

THS_AV TCLK1_AV

TVS_AV TCLK2_AV

TA2_AV TA1_AV

TB2_AV TB1_AV

TC2_AV TC1_AV

TD2_AV TD1_AV
