-47-
Optical Parts Disassembly
L

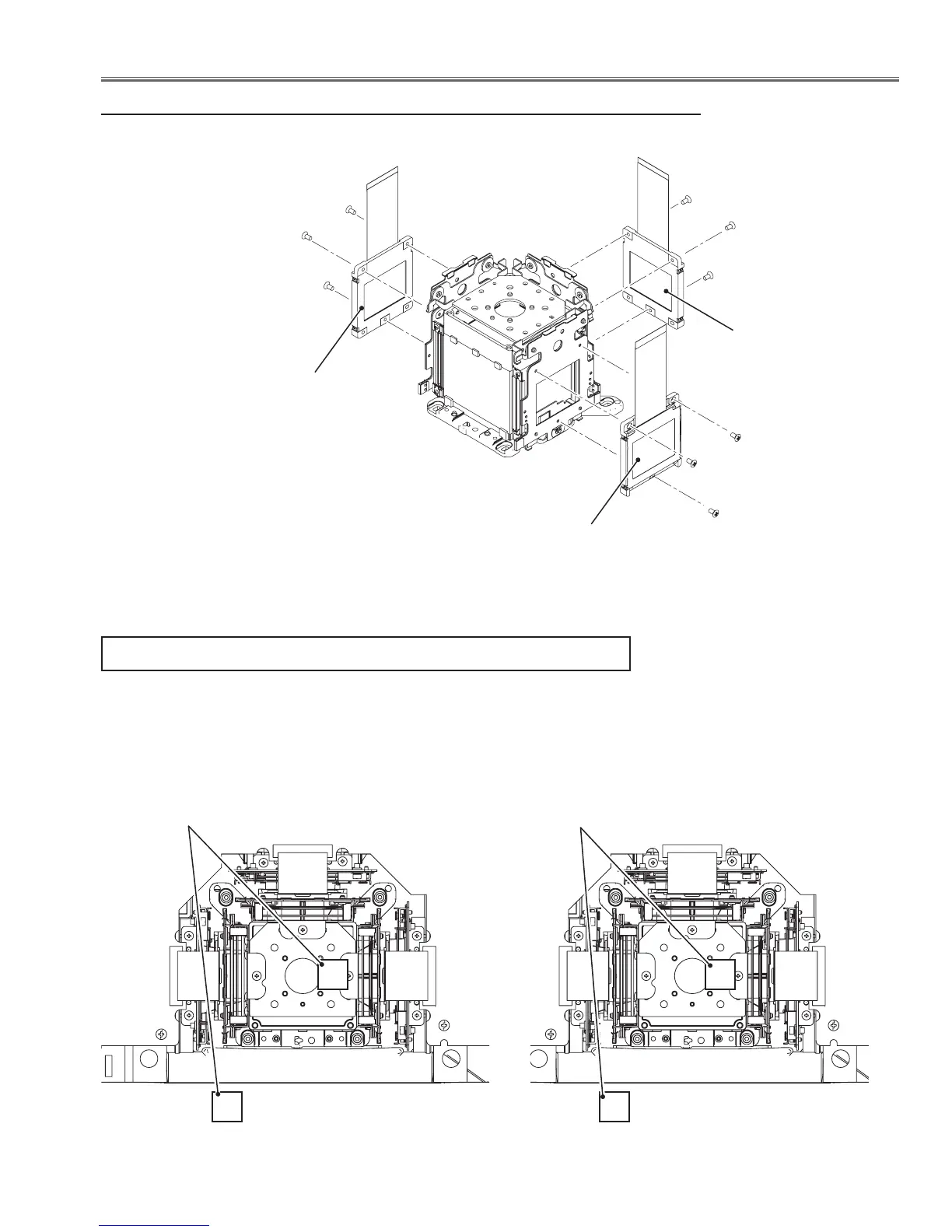

2-2 LCD panels removal
Remove 3 screws-C (M2x6) on each LCD panel and remove the LCD panel.
C
C
C
C
C
C
C
C
C
R-LCD panel
B-LCD panel
LCD Panel Type Check
There are 2 types combination of the LCD panel/prism assembly and the optical parts, named Type-R and Type-L.
Since both have no compatibility, each type should be combined with the same type, and the specific parts should
be used. If not, the poor optical characteristics may degrade the quality of a projected image.
Confirm the "R" label or "L" label on top of the LCD panel/ prism assembly and optical unit.
Confirm that both marking "R" is matched.
LCD Panel/Prism Assy Type-R
Confirm that both marking "L" is matched.
LCD Panel/Prism Assy Type-L
G-LCD panel
L
R
R
To Next Page
