Sanyo PLC-HF15000L - Duct Top Removal; Fans Removal

-41-

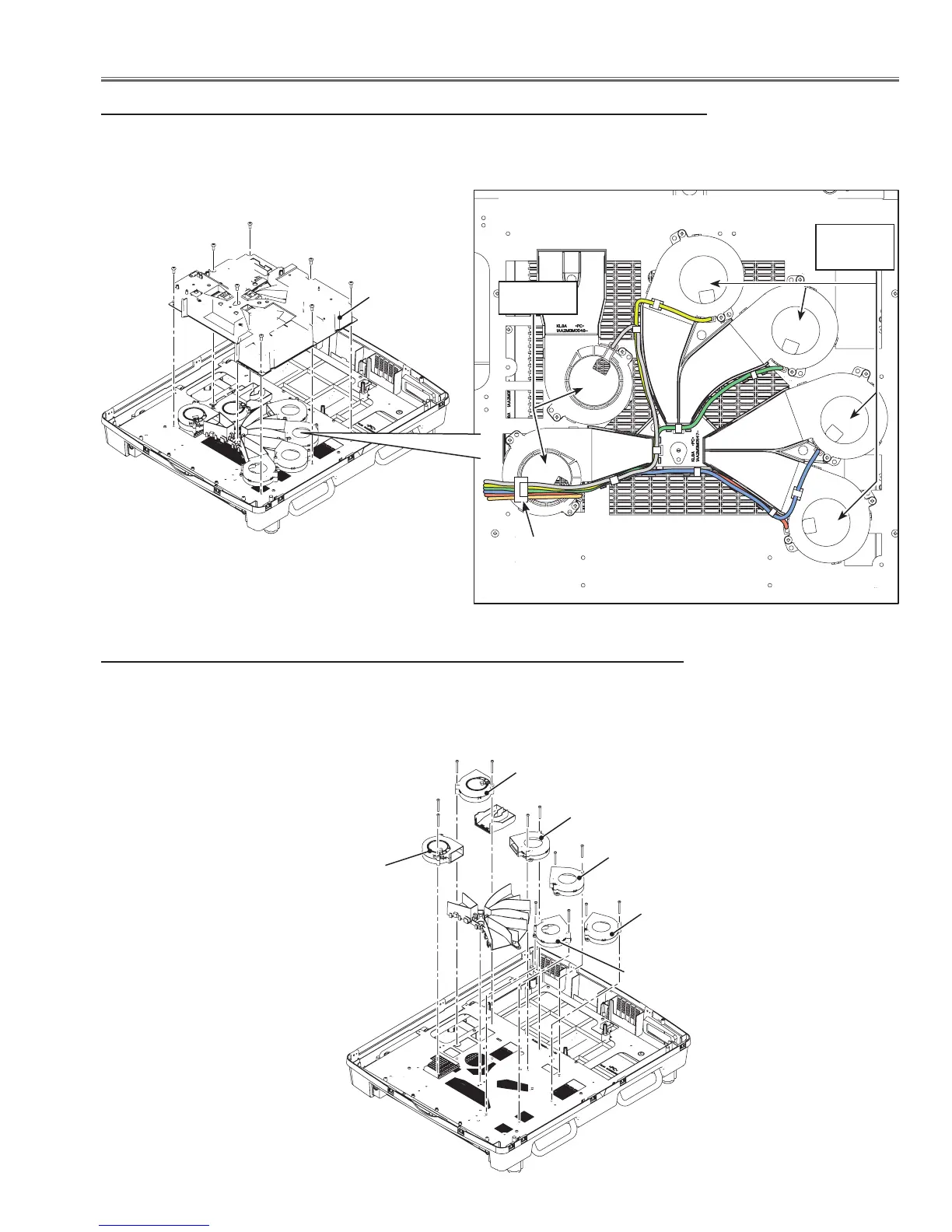

Mechanical Disassembly
15 Duct top removal
1 Remove 8 screws-A (M4x6) to remove the duct top.
16 Fans removal
1 Remove fans on the cabinet bottom.
FN903 with screws-A(M4x40)
FN906 with screws-B(M4x40)
FN904 with screws-C(M4x40)
FN905 with screws-D(M4x40)
FN902 with screws-E(M4x40)
FN901 with screws-F(M4x40)
Duct top
A
A
A
A
A
A
A
A
A
B
C
D
E
F
FN905 (To K67E)
FN904 (To K67D)
FN906 (To K67F)
FN902 (To K67B)
FN901 (To K67A)
FN903
(T0 K67C)
Wiring of fans
Label side
Label side
(Behind)
Hook
