-64-
Optical Adjustment

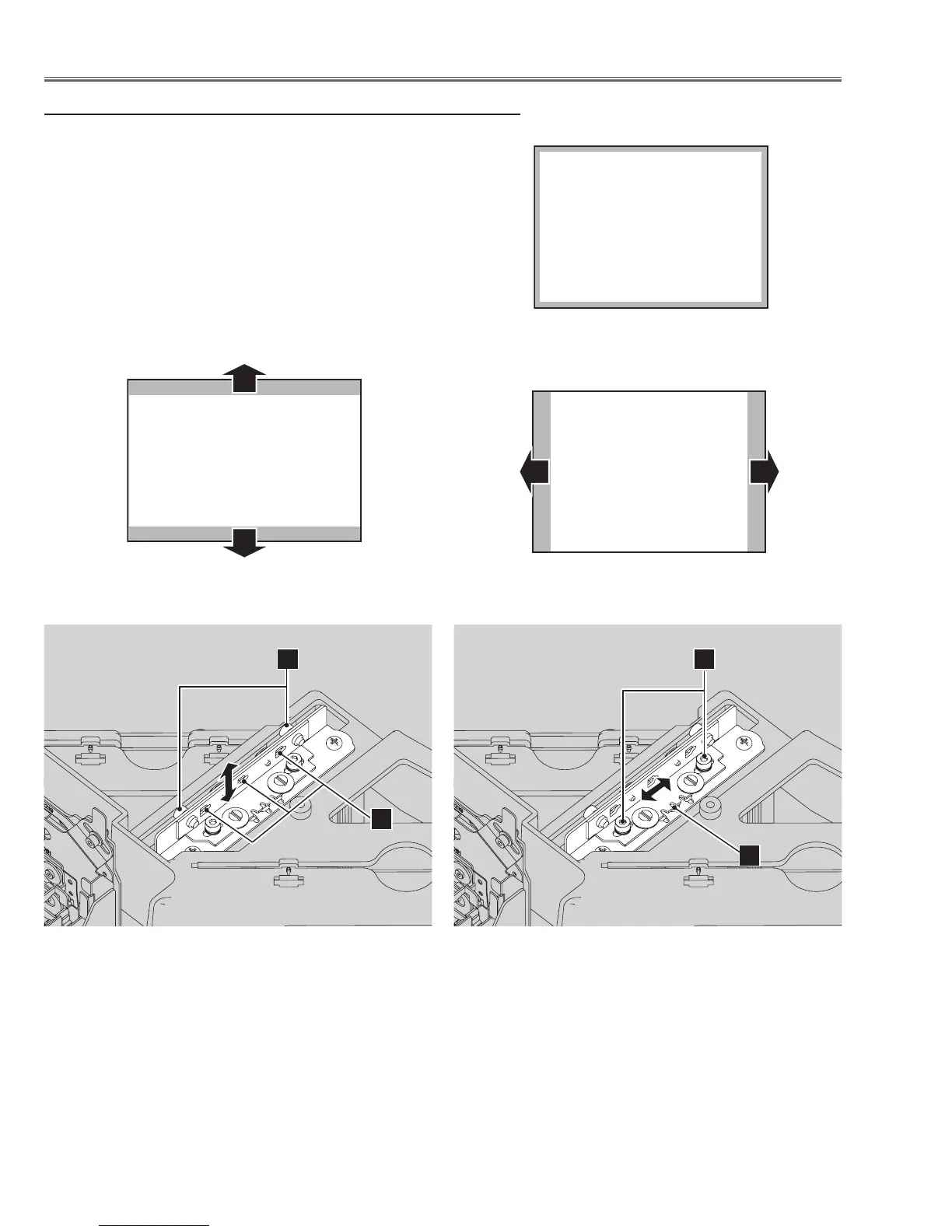

c Condenser lens adjustment
1 Move the condenser lens to make the same width of yellow and
blue color-offset on the top/bottom and left/right of the screen.
1) To adjust the image vertically as shown in Fig.3-1, loosen 2
screws A, and move the slots B by using a slot screwdriver.
2) To adjust the image horizontally as shown in Fig.3-2, loosen 2
screws C, and move the slot D by using a slot screwdriver.
2 Tighten screws A and C to fix the condensor lens.
(Target screen image)
Fig.3-1
Fig.3-2
A
B
C
D
To Next Page
