Sanyo PLC-HF15000L - Optical Parts Locations in the Optical Unit

-54-
Optical Parts Disassembly
6

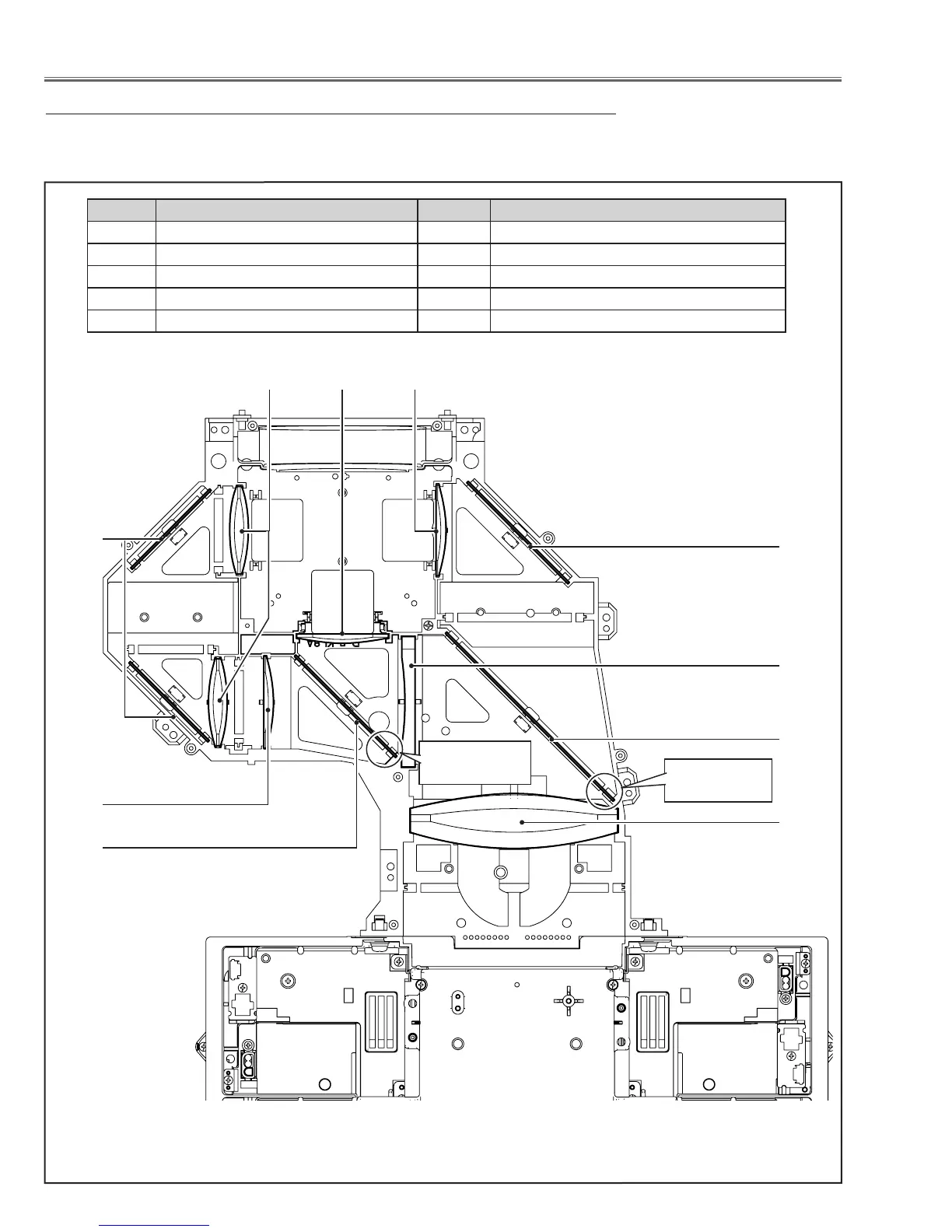

9-1 Optical parts locations in the optical unit
When mounting the optical parts in the optical unit, the parts must be mounted in
the specified location and direction as shown in the figure below.
No. Parts Name No. Parts Name
1 MIRROR(R) 6 MIRROR(B-COLD)
2 LENS, CONDENSOR(R-FIL) 7 DICHROIC MIRROR (Y/IA)
3 LENS, CONDENSOR(G) 8 LENS, CONDENSOR(OUT)
4 LENS, CONDENSOR(UV-FIL) 9 DICHROIC MIRROR (C)
5 LENS, RELAY(IN) 10 LENS, CONDENSOR(IN)
10
4
7
9
1
8
2
35
Marker comes
this side up.
Marker comes
this side down.
