-69-
Optical Adjustment
5. Convergence adjustment
Before adjustment :
Remove the shutter assy on the prism/LCD panel assy.
When adjusting the convergence of LCD panels, Convergence Adjustment Tool is required. This tool can be ordered
as a service parts. Parts No. is shown below.
Mount the Adjustment Tool on the LCD panel and adjust each panel convergence.
Make sure each Red, Green and Blue LCD panel unit has been correctly installed before performing convergence
adjustments.
[Note]
This convergence adjustment is especially designed for the service. It is not for the precise adjustment as the factory
adjustment.

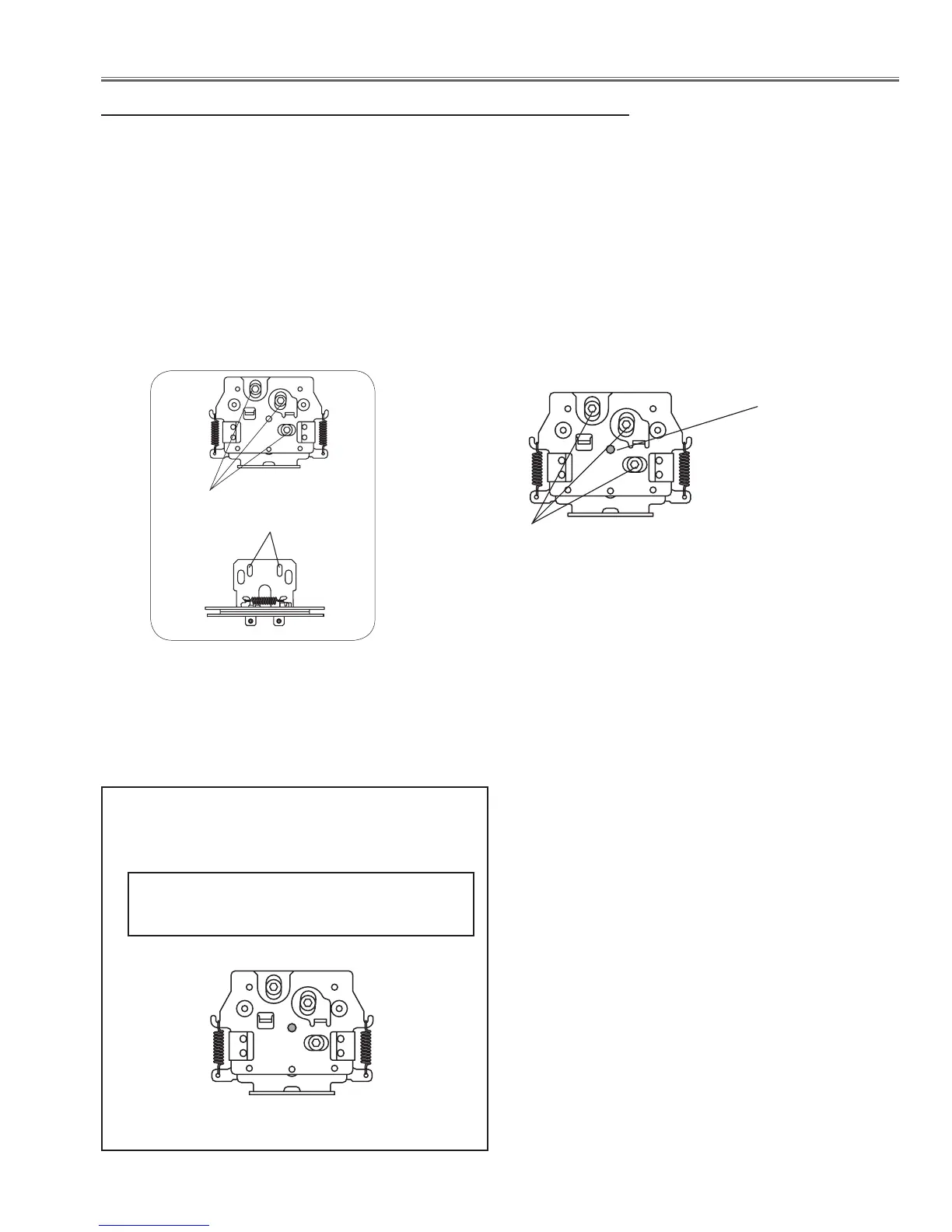

Convergence Adjustment Tool
the hole for the guide
The screw for the adjustment
Top View
Hole
Adjust each screw for Hole can be seen clearly through the
hole.
Screw Setting
The convergence adjustment tool is needed when
taking the convergence adjustment.
Give the following information to the dealer to order
it.
Part Name ;ASSEMBLY CG ADJUST LCD
Service Parts No. 910 304 8209
To Next Page
