Mechanical Disassembly

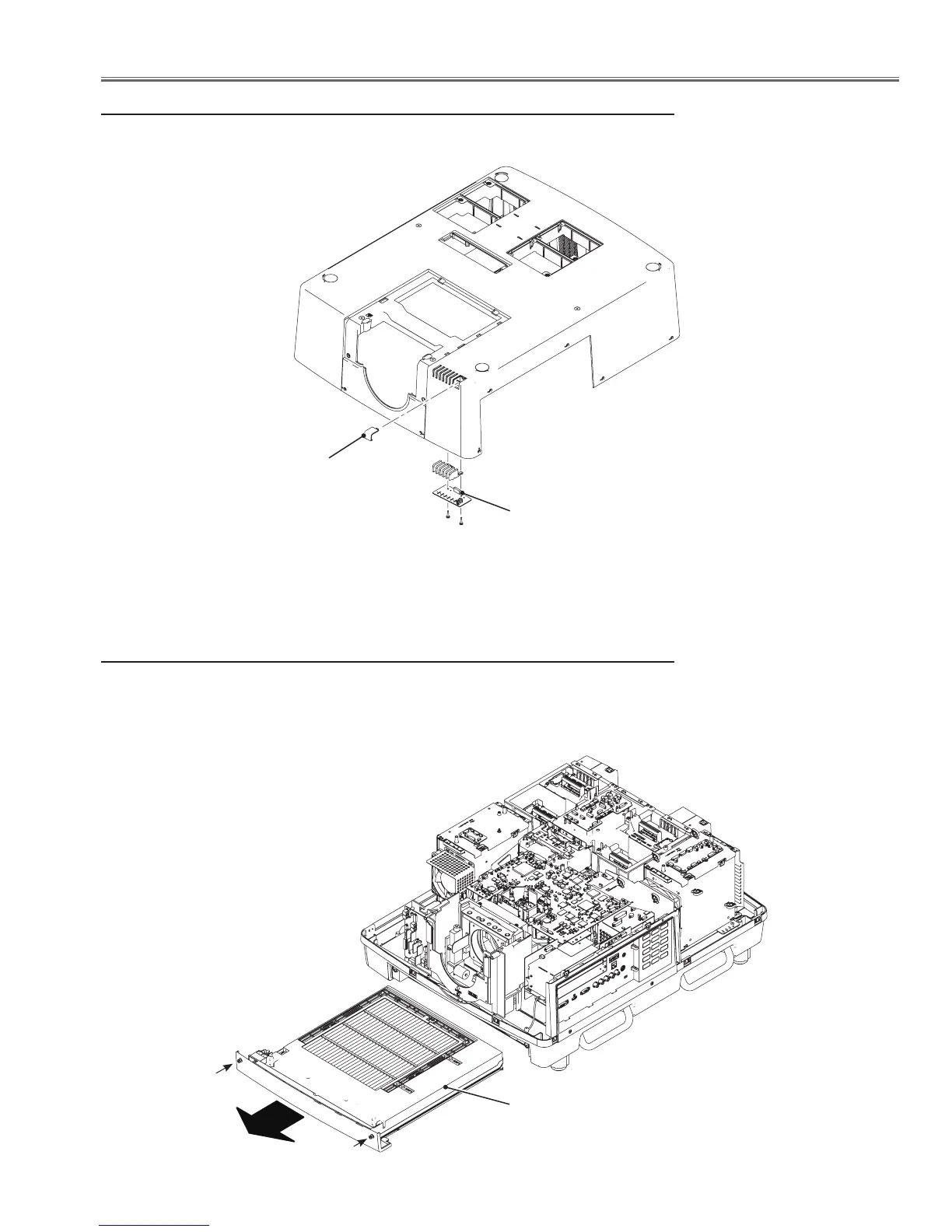

3 AMC (Active Maintenance Cleaner) unit removal

1 Loosen 2 screws-A on the AMC unit and pull it to remove.

AMC

2-2 LED board removal

1 Remove 2 screws-A (T3x12) and remove the LED board, RC front window.

LED board

RC front window
