-70-
Optical Adjustment
1 Loosen 2 screws-A of Prism/LCD panel unit.
CAUTION: When loosening the screws-A, do not touch the other mechanical part or give it shock.
2 Fully loosen 2 screws-B on the Adjustment tool.
3 Fully slide the Adjustment tool part-A into the LCD panel bracket hole.
4 Mount Adjustment tool on the LCD panel/prism unit with 2 screws-C attached with Adjustment tool along the guide
on top of prism assy.
CAUTION: Do not use other kind of screws for mounting, otherwise LCD panel/prism unit may be damaged.
5 Tighten screws-B and hold the LCD panel bracket.

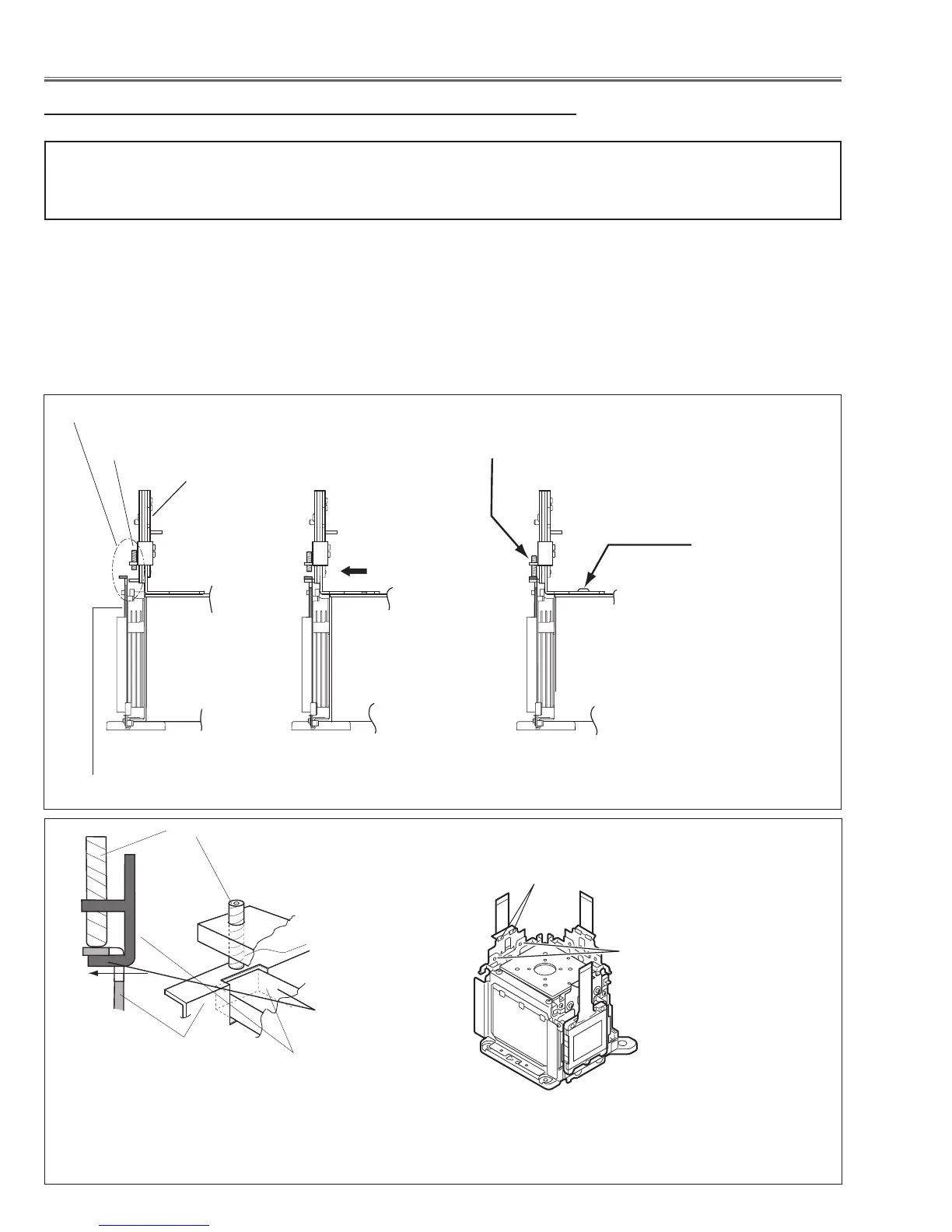

Adjustment tool installation
Note; Before mounting the Adjustment tool, set adjustment screws of Adjustment tool in center of the adjustment
range.
Refer to Screw setting.
Tool
Screw-B
LCD Panel Bracket
Part-A
Screw-A
LCD Panel
Bracket hole
Screw-B
Screw-C
Adjustment Tool
Loosen 2 Screws-B before installation.
LCD Panel bracket
Prism/LCD Panel
unit
Tighten 2 Screws-B and
hold the LCD Panel bracket
Tighten 2 Screws-C and
hold the Prism/LCD Panel
unit
Slide the
Adjustment Tool.
Insert Adjustment tool leg (2 Legs) into LCD
panel bracket holes, and tighten screws-B and
hold LCD panel bracket with Adjustment tool.
Step 2 Step 3 Step 4
LCD panel/prism unit
To Next Page
