Sanyo PLC-HF15000L Service Manual

-42-
Mechanical Disassembly

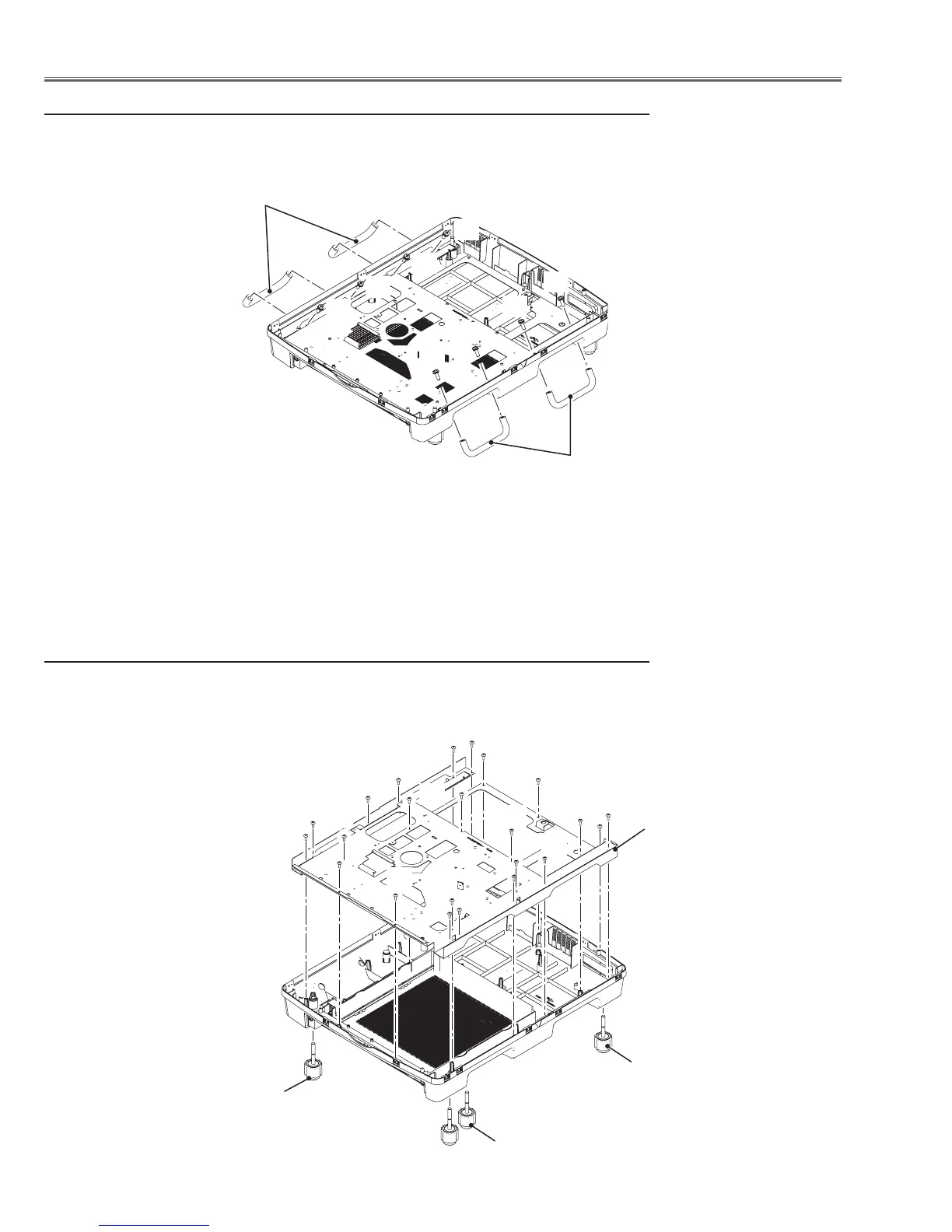

17 Handles removal
1 Remove each 2 screws-A (M8x25) to remove handles.
Handles
Handles
A
A
A
A
A
A
A
A
18 Cabinet bottom frame and stand legs removal
1 Remove 22 screws-A (M4x10) to remove the cabinet bottom frame.
2 Remove 4 stand legs to turn it counter-clockwise.
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Cabinet bottom frame
Stand legs
Stand legs
Stand legs
