Optical Parts Disassembly
10 Optical lamp unit top removal

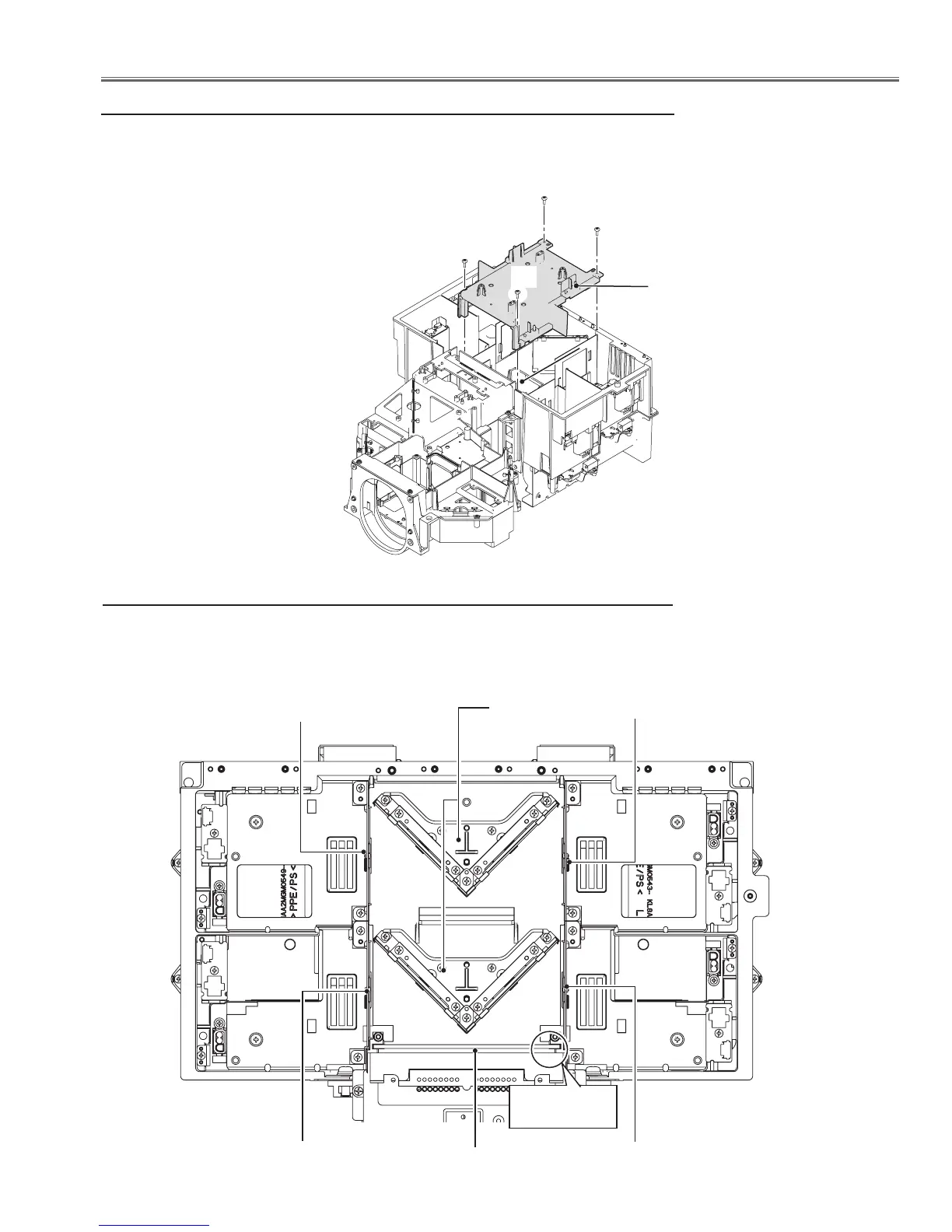

1 Remove 4 screws-A(T3x8) and remove the optical lamp unit top.
A
A
Optical lamp
unit top
A
A
10-1 Optical parts locations in the optical lamp unit
When mounting the optical parts in the optical lamp unit, the parts must be mounted
in the specified location and direction as shown in the figure below.
Mirror assy
Optical filter
Optical filter B assy
Optical filter A assy
Optical filter D assy
Optical filter C assy
Marker comes
this side up.
