Optical Adjustment
After completing the adjustment, remove the Adjustment tool as follows.
1 Loosen 2 screws-B and release LCD panel bracket.
Remove 2 screws-C, then remove Adjustment tool.
2 Slide the Adjustment tool, and release from the LCD panel bracket.
3 Remove the Adjustment tool upward.

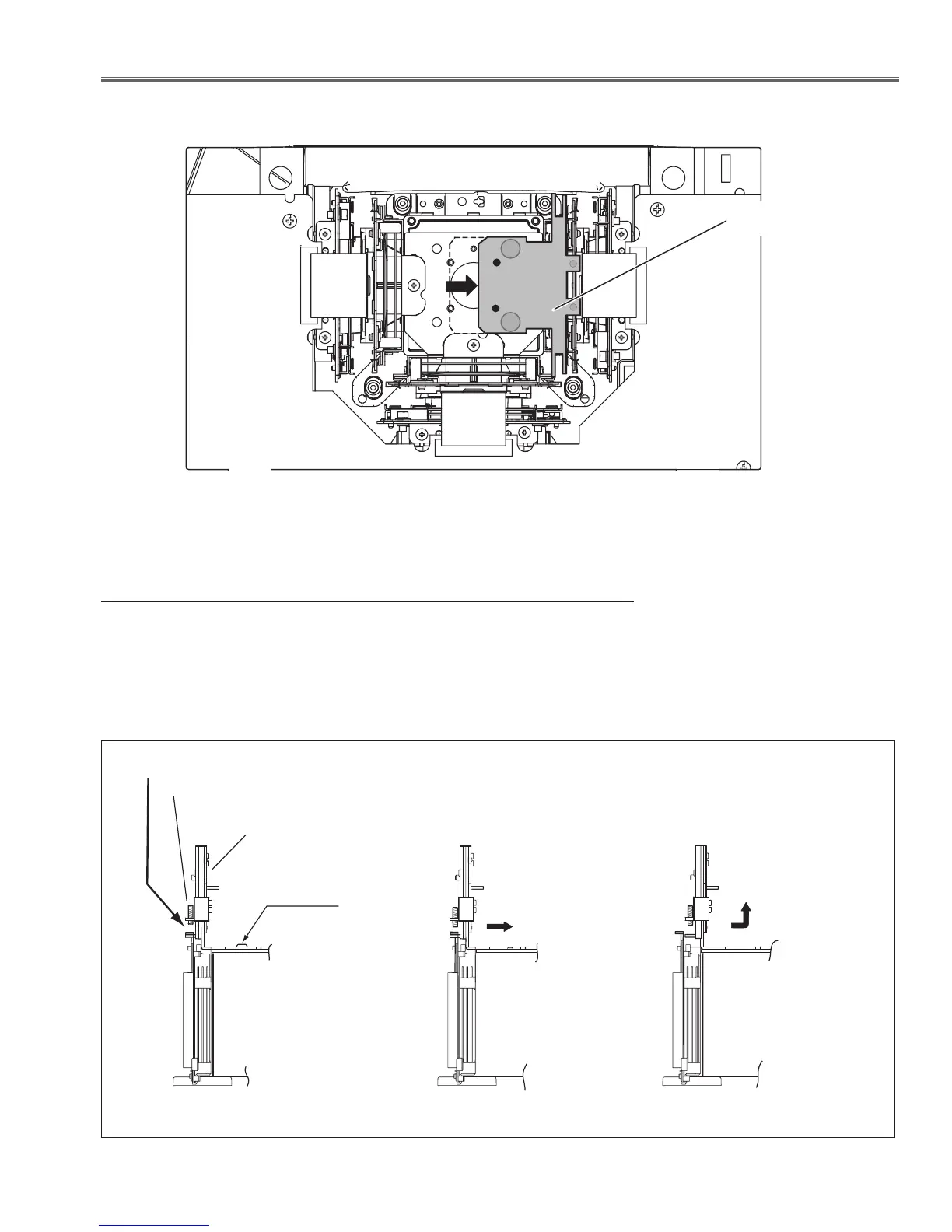

Adjustment tool removal
The figure is an installation figure for
the adjustment of the Red LCD panel.
Step 3
Step 1
Screw-B
Screw-C
Adjustment Tool
Step 2
Loosen 2 Screws-B before remove
Loosen 2 Screws-C
before remove
Prism/LCD Panel
unit
Slide the
adjustment tool
Adjustment tool
To Next Page
