-26-
Mechanical Disassembly

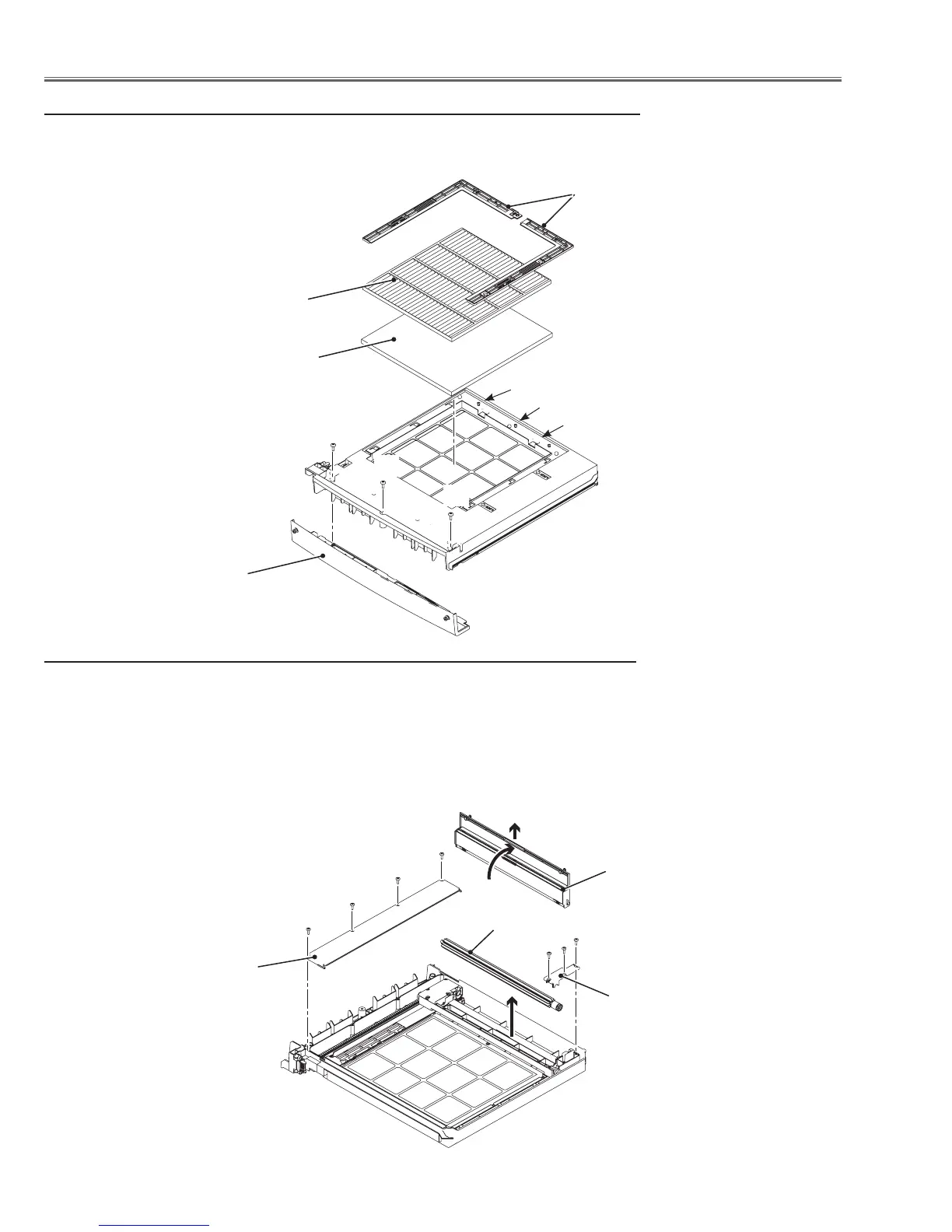

3-1 AMC unit disassembly-1
1 Loosen 3 screws-A and remove the filter holders upward. Remove the electrostatic
pleated filter and electrostatic honeycomb filter.
2 Remove 3 screws-B (T4x10) and remove the AMC front cover.
3-2 AMC unit disassembly-2
1 Turn the AMC unit upside down. Loosen 2 screws-A and pull the dust bin up as the
shown in the figure.
2 Remove 4 screws-B (T3x8) to remove the cover.
3 Remove 3 screws-C (T3x8) to remove the drive case top-B and then remove the
brash upward.
Drive case top B
Electrostatic pleated filter
Dust bin
B
B
B
B
Electrostatic honeycomb filter
AMC front cover
Cover
A
A
A
B
B
B
Filter holders
C
C
C
A
A
Brash
To Next Page
