Sanyo PLC-HF15000L Service Manual

-27-

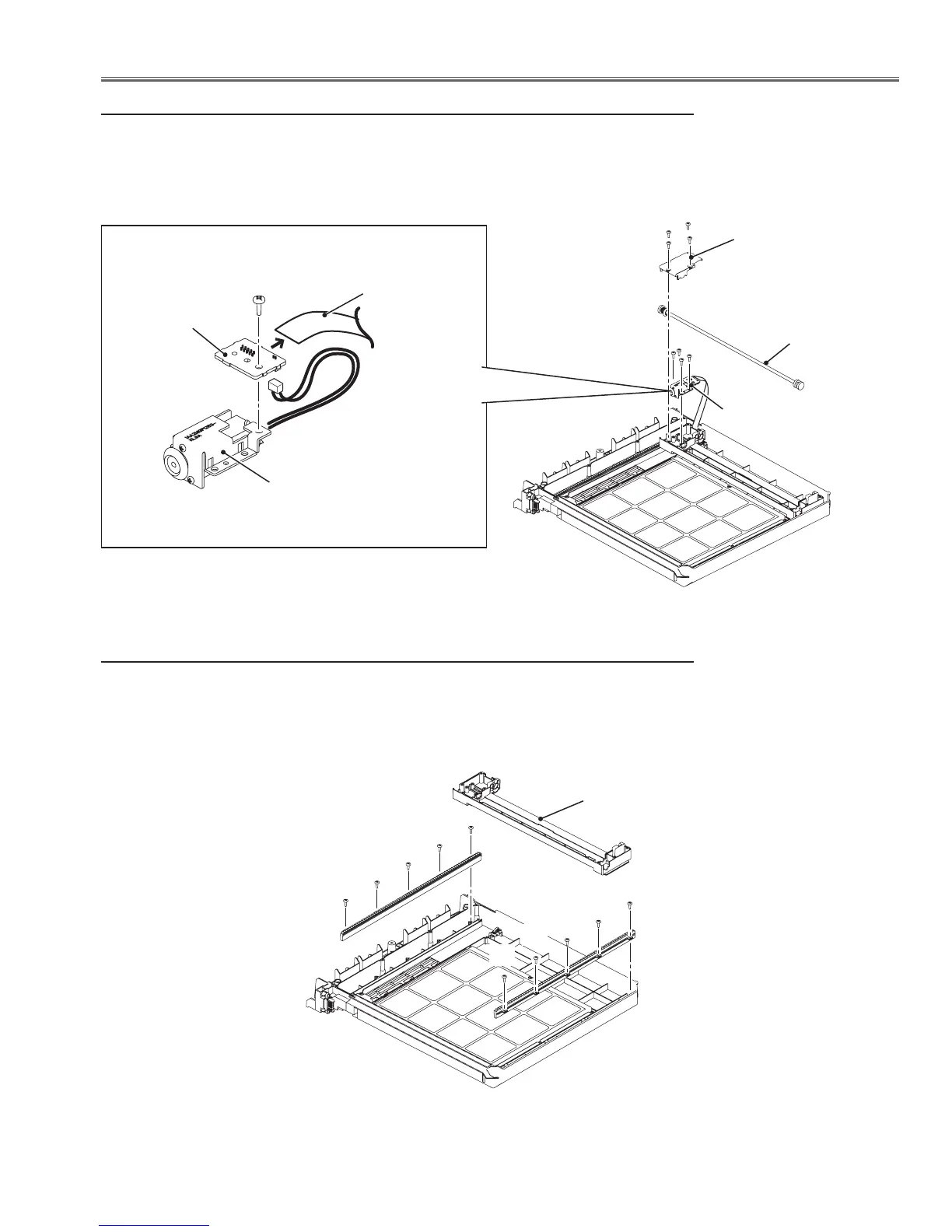

Mechanical Disassembly
3-3 AMC unit disassembly-3
1 Remove 4 screws-A (T3x8) to remove the drive case top-A.
2 Pull the gear shaft upward off..
3 Remove 4 screws-B (T3x8) to remove the motor assy.
Drive case top A
Gear shaft
B
A
A
Motor assy
B
(M3x8)
Flat cable
Drive link unit
Motor assy
3-4 AMC unit disassembly-4
1 Remove each 5 screws-A (T3x8) to remove the gear rails and drive case base.
A
A
A
A
A
A
A
A
A
A
Drive case base
