The projector provides 2 temperature sensor ICs, 1 sensor on the Main board and 1 sensor on the Ex Temp board,
and 1 wind sensor on the intake duct. The sensor ICs monitor surrounding temperature of the panels/prism, and
surrounding temperature of the intake duct, and the wind sensor monitors airflow passed through the air filter in the
intake duct.
- Temperature sensor (IC8851) on the Main board for monitoring the surrounding temperature of B-panel.
- Temperature sensor (IC8811) on the Ex Temp board for monitoring the surrounding temperature of the intake
duct.
- Wind sensor (S901) on the filter box.
Circuit Protections

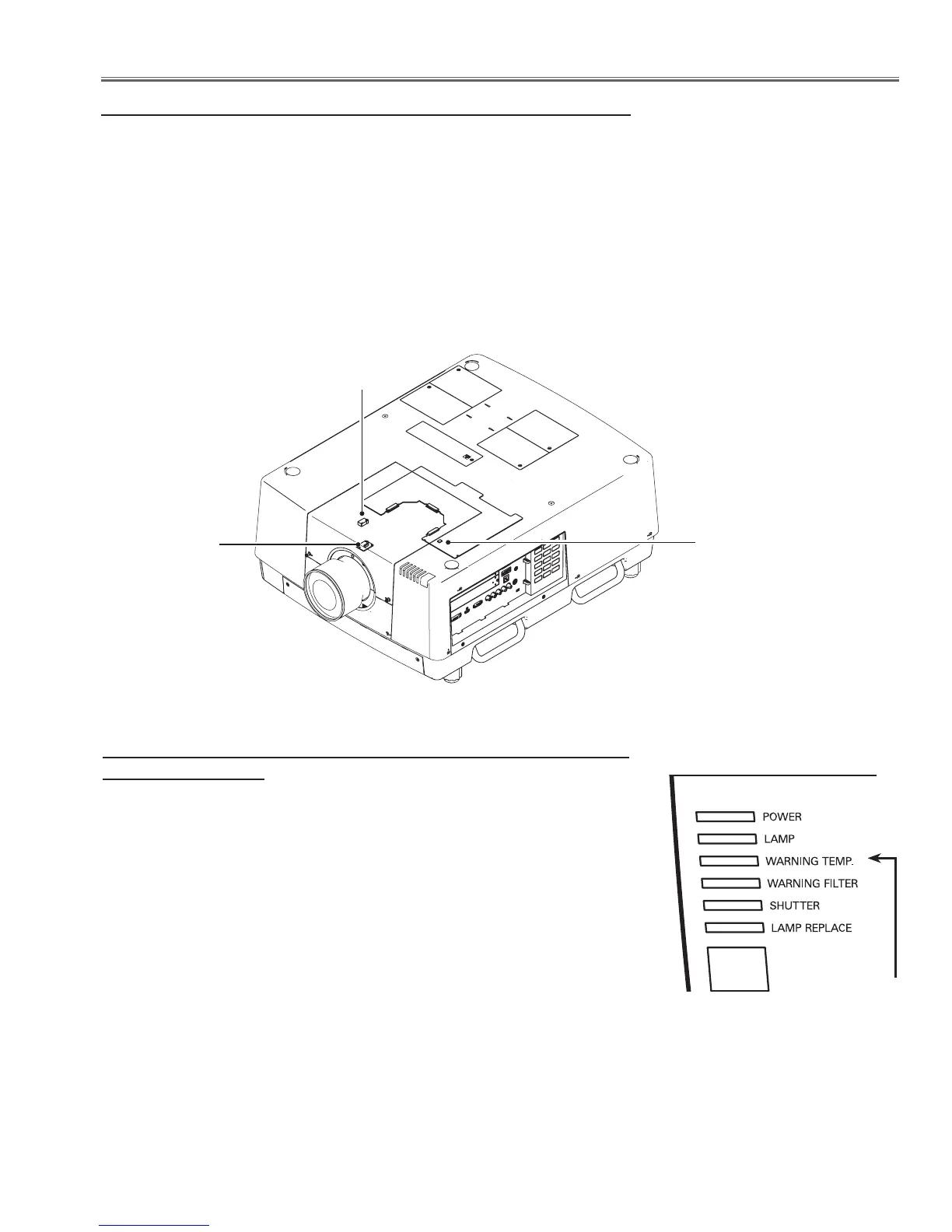

IC8851
(Behind)
Temperature sensors, wind sensors
S901
Wind sensor
IC8811
The projector is shut down and the WARNING TEMP. indica-
tor is blinking red.
When the temperature inside the projector reaches a certain level, the WARN-
ING TEMP. indicator starts blinking. If the temperature rises moreover, the
projector will be automatically shut down to protect the inside of the projector,
and the WARNING TEMP. indicator is blinking fast and the POWER indicator
turns off. When the projector has cooled down enough (to its normal operat-
ing temperature), the POWER indicator turns on and the projector can be
turned on again by pressing the ON/STAND-BY button.
✔Note:
• The WARNING TEMP. indicator continues to blink even after the tempera-
ture inside the projector returns to normal. When the projector is turned on
again, the WARNING TEMP. indicator stops blinking.
Indicators
WARNING TEMP.
blinking red
Check the items below
- Remove dust around the air filter.
- Ventilation slots of the projector are blocked. In such an event, reposition the
projector so that ventilation slots are not obstructed.
- Check if projector is used at higher temperature place (Norma; operating
temperature is 5 to 40 ºC or 41 to 104 ºF).
