Sanyo PLC-HF15000L Service Manual

-23-
Mechanical Disassembly
Mechanical disassembly

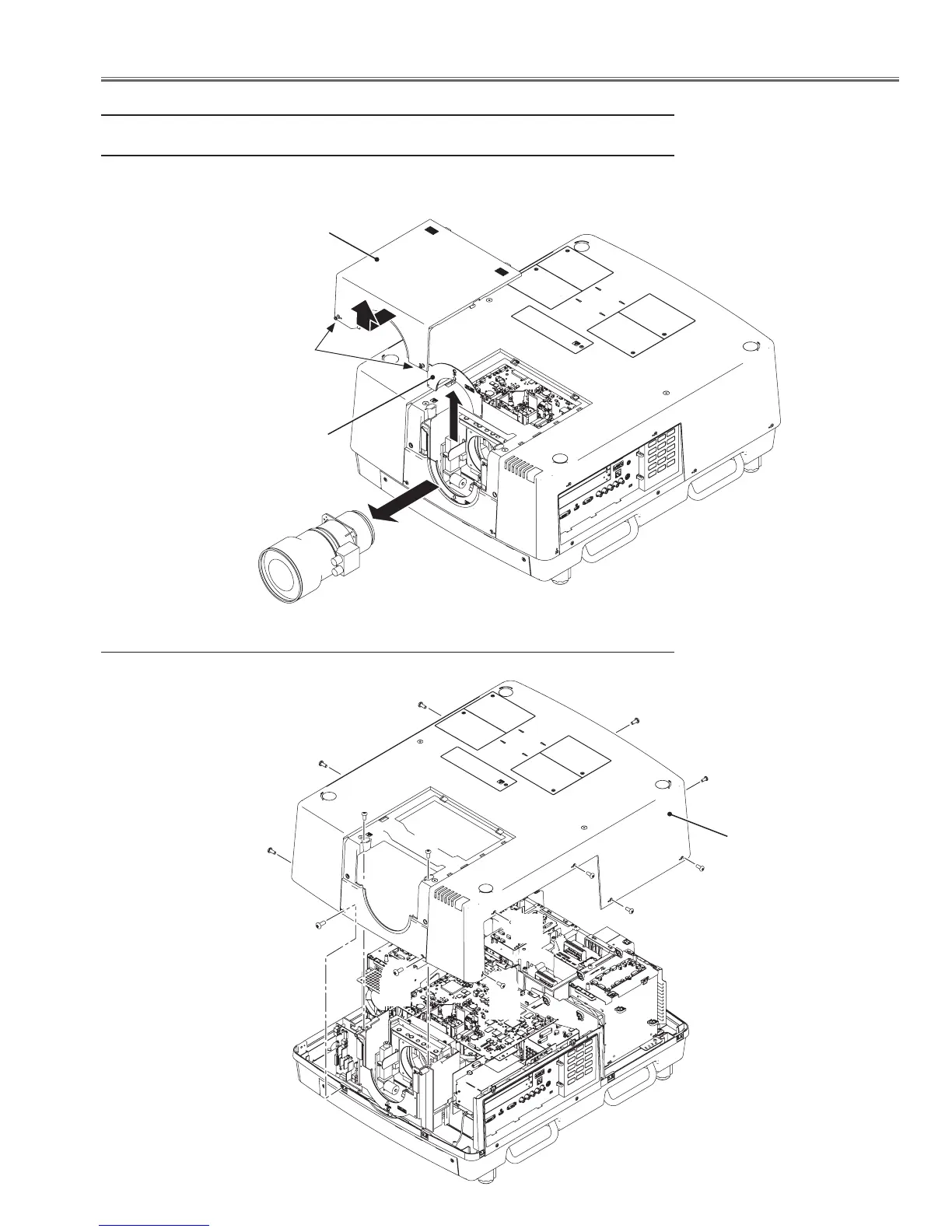

Cabinet front cover-A
1 Cabinet front cover removal
1 Loosen 2 screws-A, and pull the cabinet front cover-A forward.
2 Remove the projection lens assy. See item "Lens Mounting" for further informa-
tion.
Light block plate
upper
A
2 Cabinet front removal
1 Remove 14 screws-A (M4x10) and pull the cabinet top upward off.
Cabinet top
A
A
A
A
A
A
A
A
A
A
A
A
A
A
