-29-
Mechanical Disassembly
3-6 Drive unit mounting
Mount the drive unit following to steps below carefully.

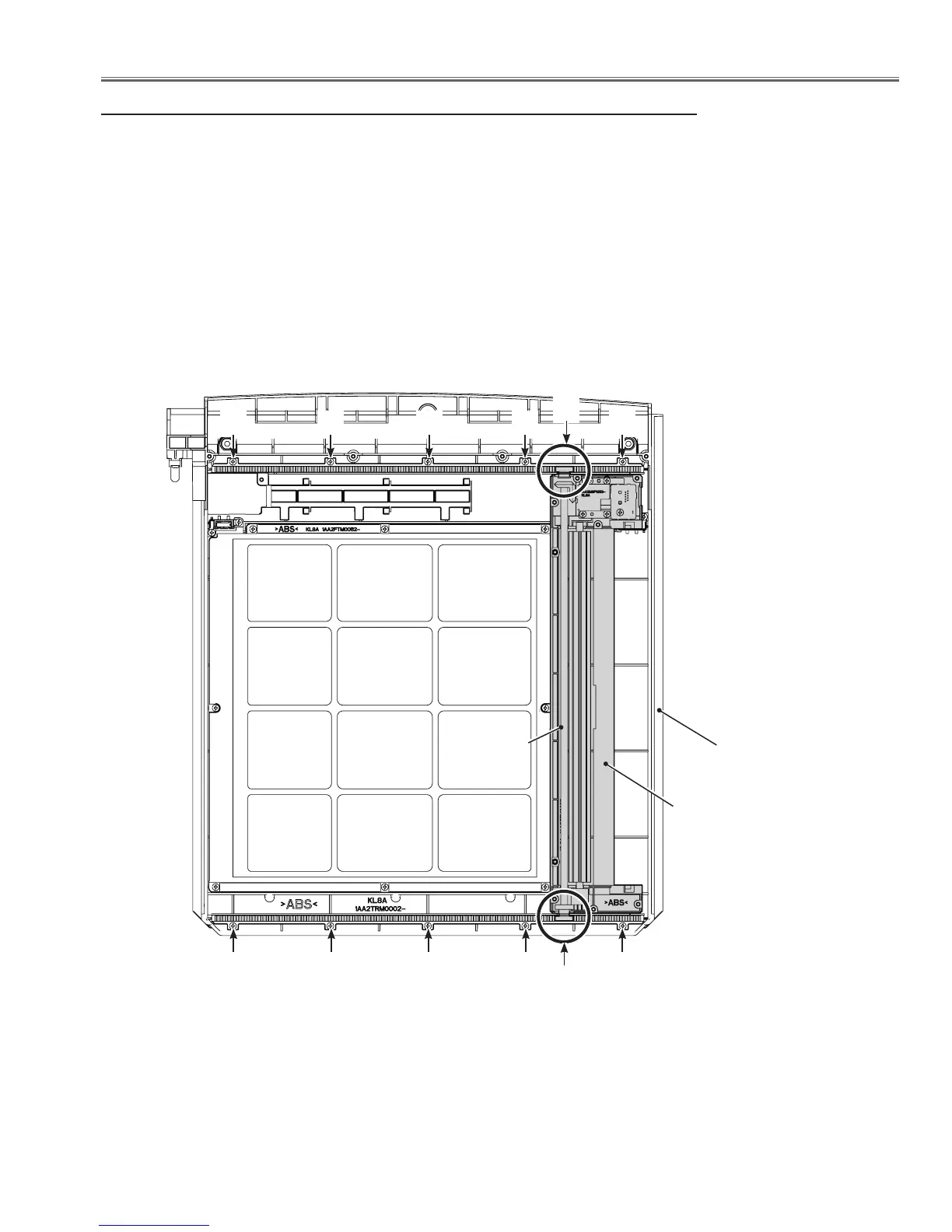

1 Insert the guides on the drive unit base into the groves of the gear rails and set them
on the AMC unit base. Fix the gear rails with each 5 screws-A (T3x8).
2 Mount the gear shaft onto the gear rails firmly by pressing the parts B in the figure.
When mounting the gear shaft, pay attention that the drive unit base should not be
mounted in the slant, otherwise the drive unit might be defective.
3 Mount the drive case top-A with 3 screws (T3x8) and drive case top-B with 4 screws
(T3x8).
A A A A A
AAAAA
B
B
Gear shaft
AMC unit bottom
Drive unit base
To Next Page
