-53-

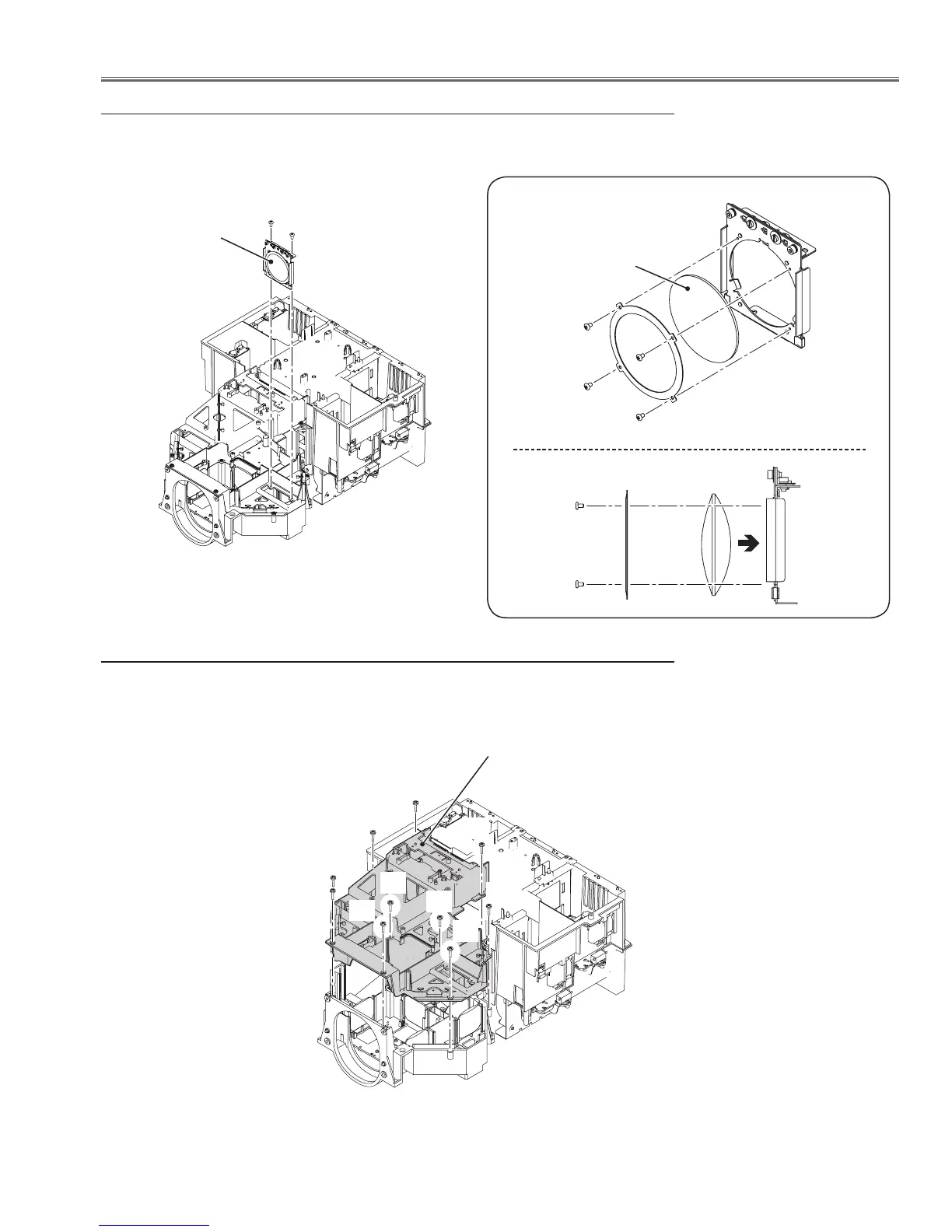

Optical Parts Disassembly
8 Relay lens(OUT) assy removal
Remove 2 screws-A(M3x6) and remove the relay lens(OUT) assy upward off.
Relay lens assy
A
A
(M2x4)x4
Relay lens(OUT)
Side View
9 Optical unit top removal
Remove 10 screws-A(T3x12) and remove the optical unit top.
Optical unit top
A
A
A
A
A
A
A
A
A
A
