Sanyo PLC-HF15000L Service Manual

-52-

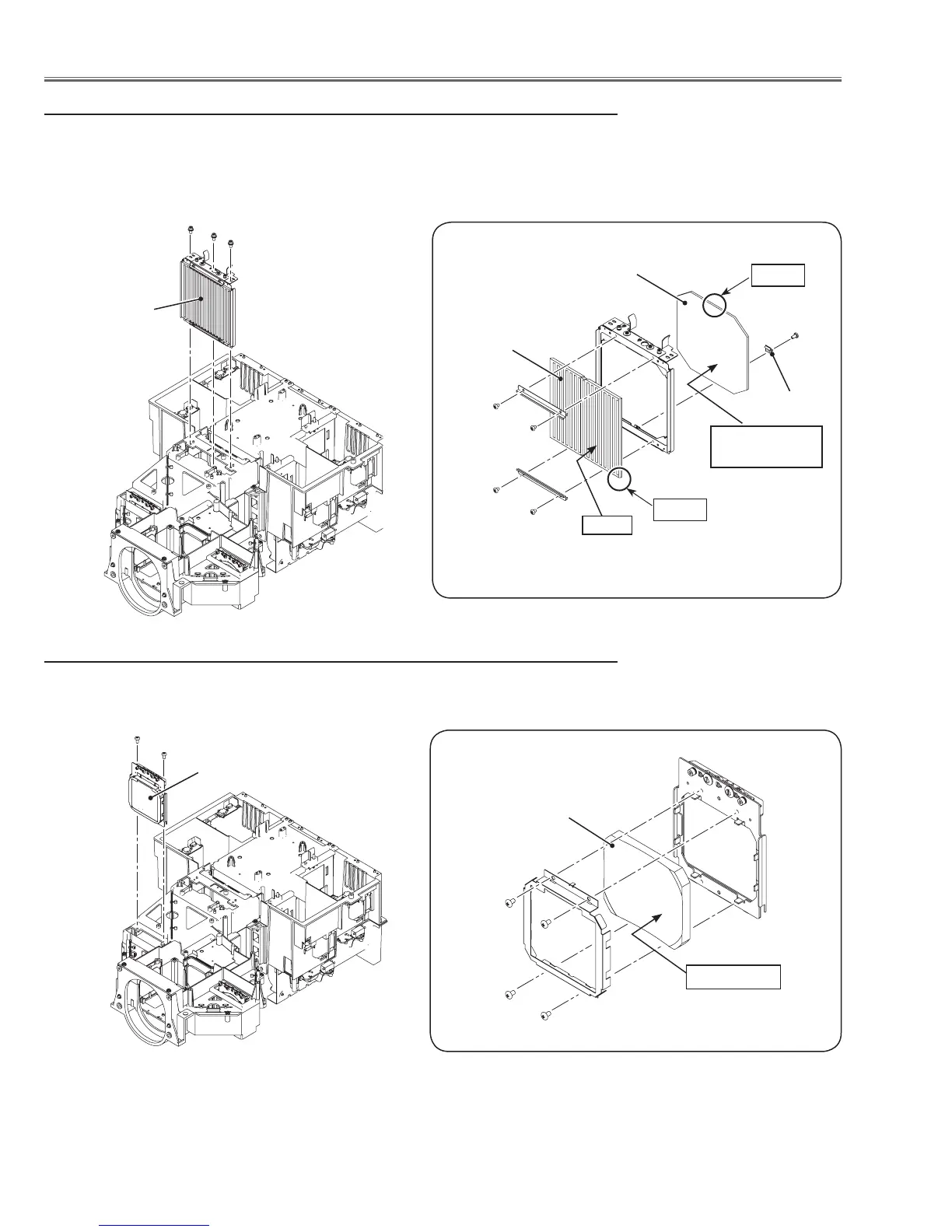

Optical Parts Disassembly
6 PBS/Integrator assy removal
Remove 3 screws-A (M3x6) and remove the PBS/Integrator assy upward off.
A
A
PBS/Integrator
assy
(M3x4)x2
(M3x4)x2
PBS
Integrator
Bumpy surface
comes this side.
7 Condenser lens assy removal
Remove 2 screws-A (M3x6) and remove the mirror assy upward off.
(M3x4)x2
A
Condenser lens
Condenser lens assy
A
A
(M3x6)
Stopper
Notch
Marker
Film
(M3x4)x2
Bent surface
