Sanyo PLC-HF15000L Service Manual

-43-
Mechanical Disassembly

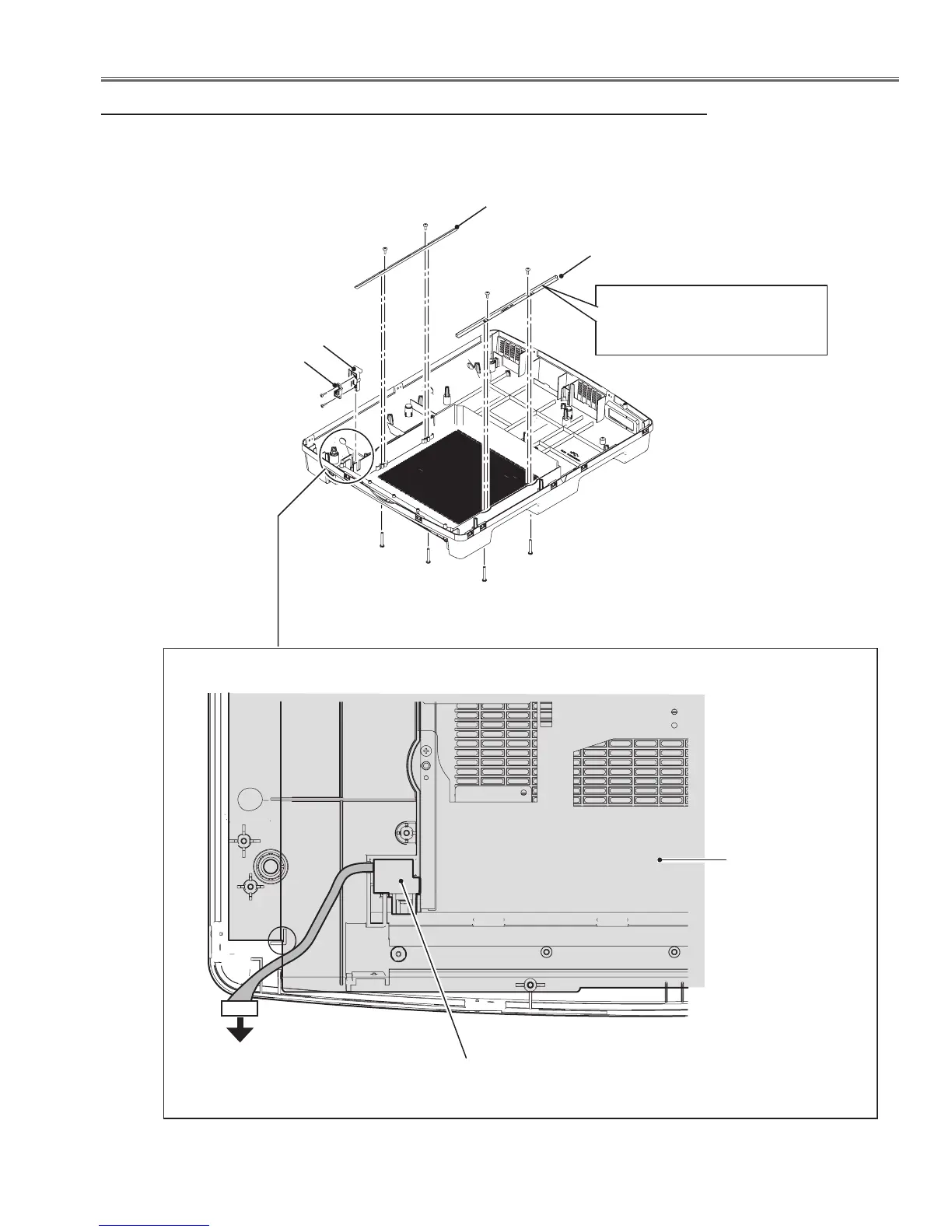

19 AMC unit rails and socket removal
1 Remove 2 screws-A (T4x10) and 2 screws-B (M4x20) on each rail and remove the
AMC unit rails.
2 Take the socket holder upward and remove 2 screws-C (T3x12) to remove the socket.
A
A
A
A
B
B
B
B
C
Rail
Rail
Holder
Socket
Cabinet bottom frame
Socket holder
To Motor board
Mount rails as the chop marking
on the rail comes upward.
