Sanyo PLC-HF15000L Service Manual

-37-
Mechanical Disassembly

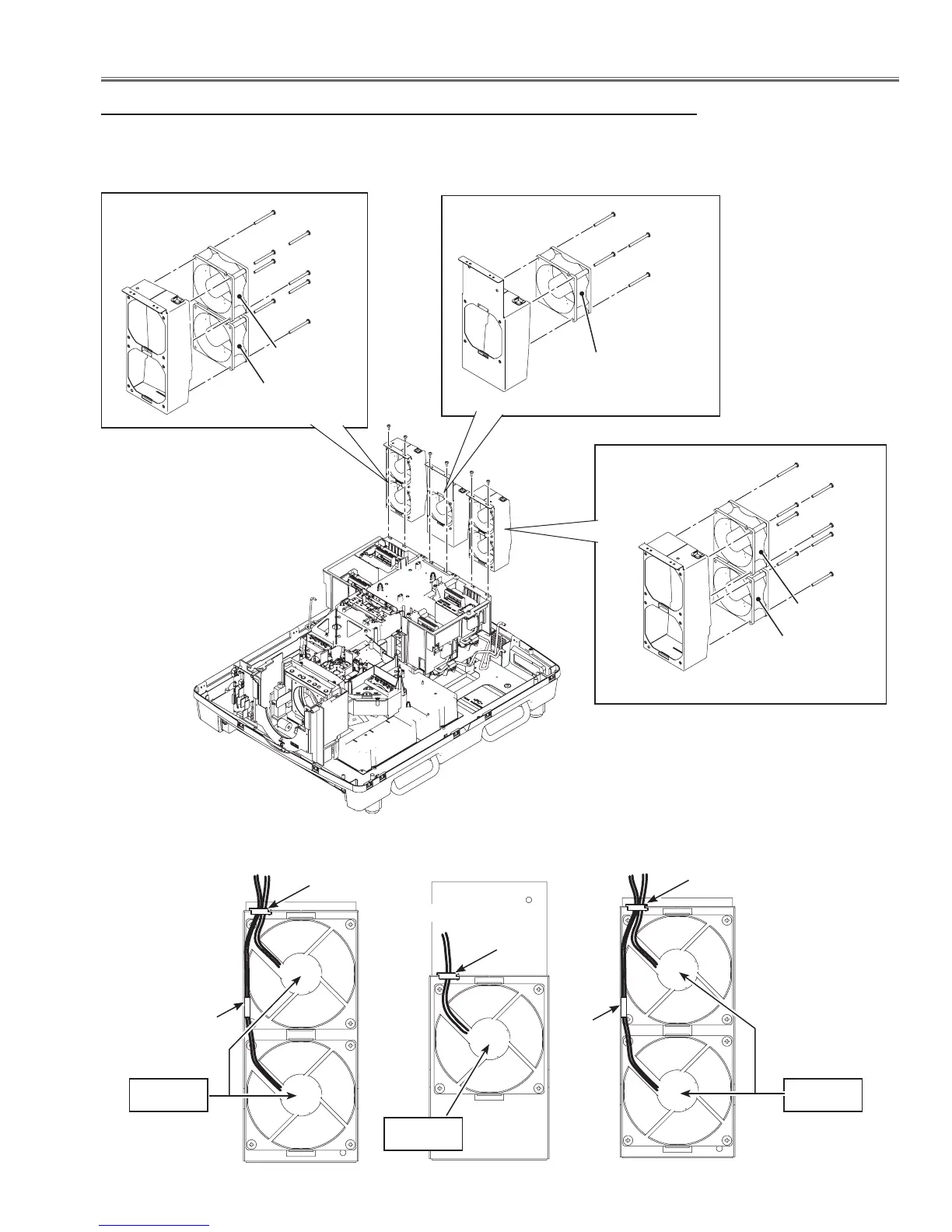

11 Rear fans assy removal
1 Remove 2 screws-A (T3x8) to remove fans(FN910,FN911) assy.
2 Remove 2 screws-B (T3x8) to remove fan(FN914) assy.
3 Remove 2 screws-C (T3x8) to remove fans(FN912,FN913) assy.
A
B
B
C
A
C
(M4x45)x4
(M4x45)x4
(M4x45)x4
(M4x45)x4
(M4x45)x4
Wiring of fans (Rear view)
Label side
Hook
Hook
Hook
Tape
Tape
Label side
Label side
FN914
FN912
FN910
FN913
FN911
To: K27P
To: K27N
To: K27R
To: K27S
To: K27Q
