-36-

Mechanical Disassembly

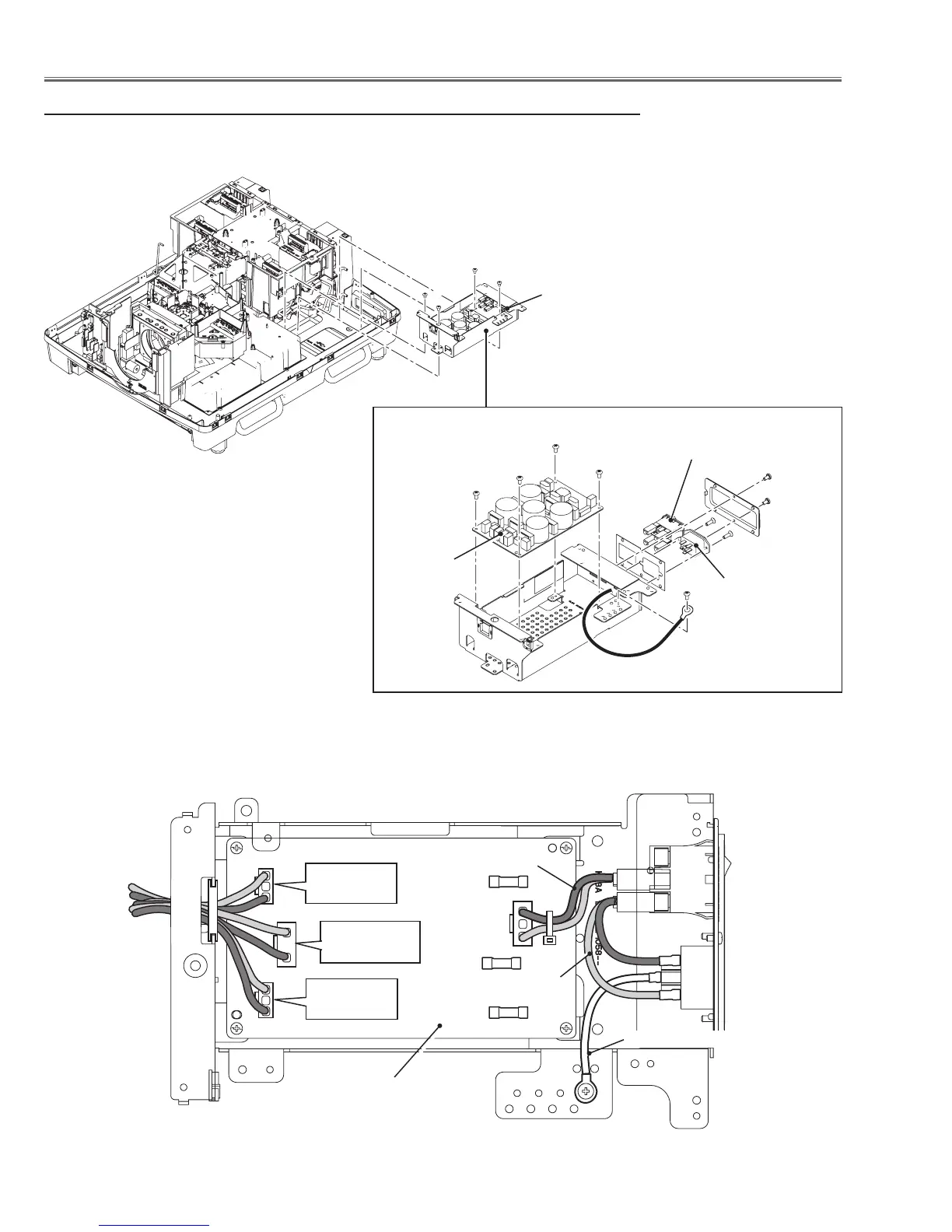

10 AC filter board assy removal

1 Remove 4 screws-A (M4x6) to remove the AC filter assy.

AC filter board assy

AC inlet

SW901

AC filter board

(M3x6)x4

(M3x10)x2

(M3x6)x2

(M4x6)

Wiring of Mains switch and AC Inlet

K6D: from

PFC1 board

Brown

Grounding lead

K6B: from

PFC2 board

K6C: from

AC-DC board

AC filter board

Blue
