-40-
Mechanical Disassembly
14 Optical unit assy removal

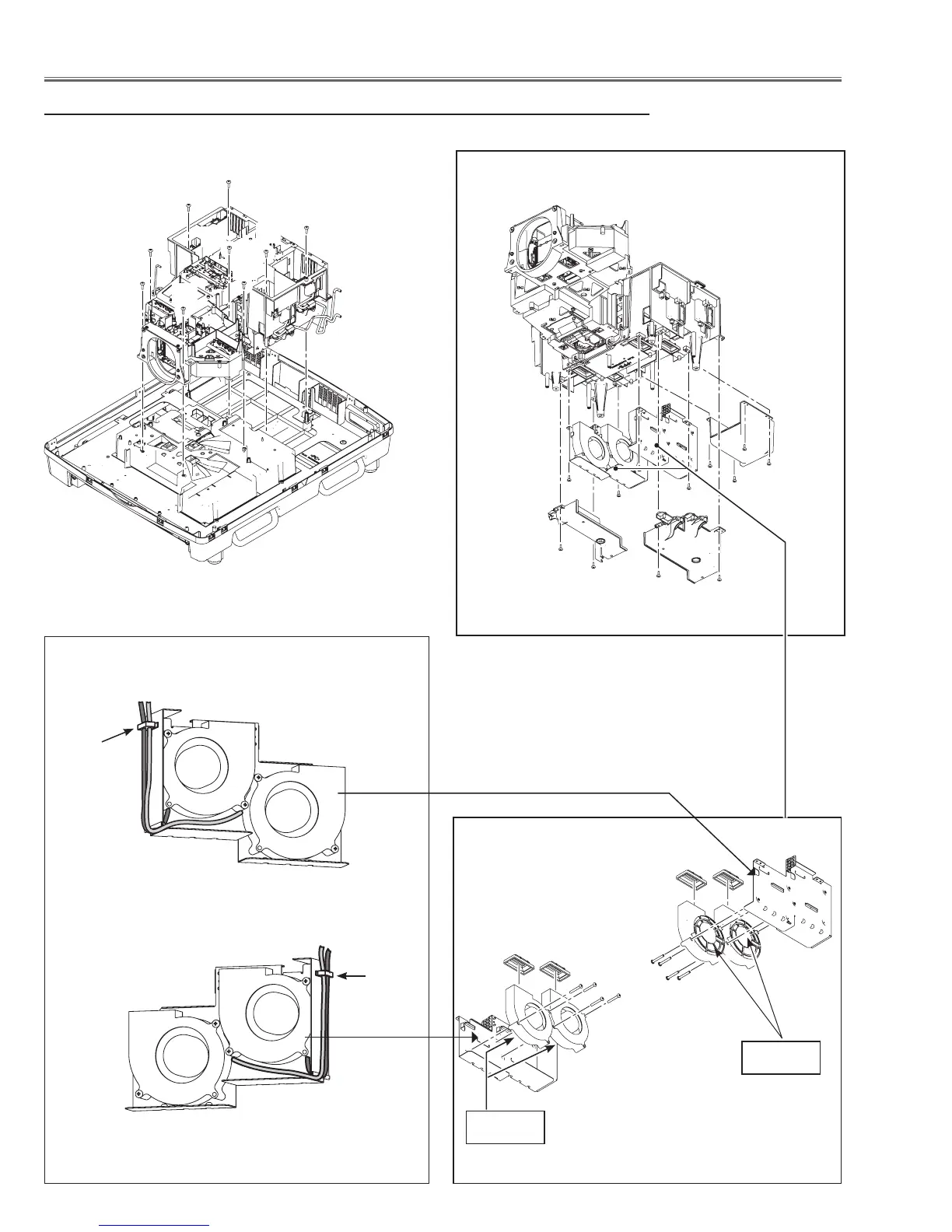

1 Remove 9 screws-A (T4x10) to remove the optical unit assy.
A
A
A
A
A
A
A
A
A
(T3x8)x4
(M4x30)x2
(M4x30)x2
(M4x30)x2
(M4x30)x2
(T3x8)x2
(T3x8)x2
(T3x8)x2
(T3x8)x2
FN918
FN916
FN915
FN917
Label side
Label side
Wiring of fans
Hook
Hook
To: K77STo: K77T
To: K77V
To: K77U
