-39-

Mechanical Disassembly

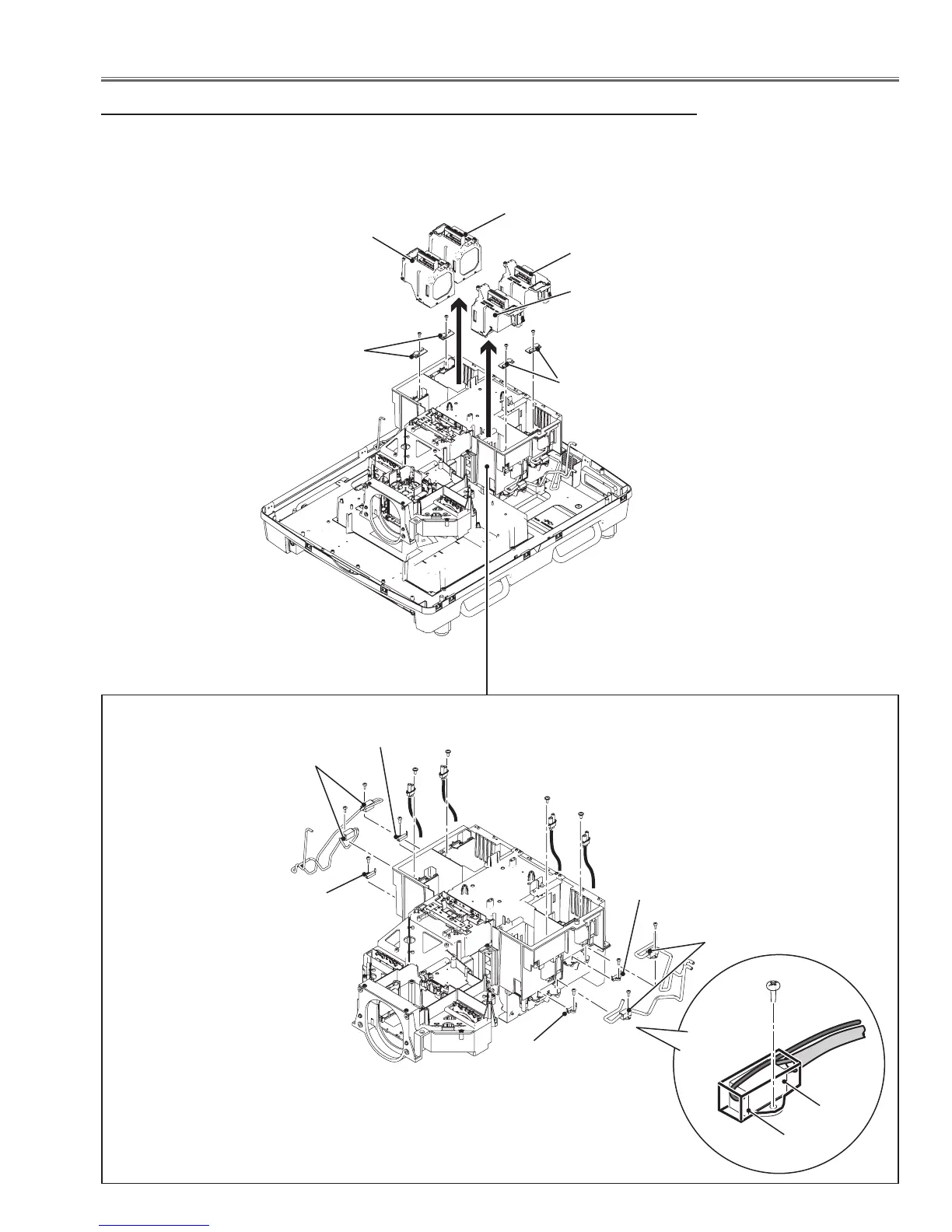

13 Lamps and ID IF boards and peripheral parts removal

1 Loosen each 2 screws on the lamp and pull it upward of.

2 Remove each 1 screw-A (T3x8) to remove the ID IF board.

ID IF boards

Trigger boxes

SW906

SW905

SW903

SW904

(T3x8)

LP901

LP903

LP902

LP904

Spacer

Trigger

box

Service Manual1
