-38-
Mechanical Disassembly

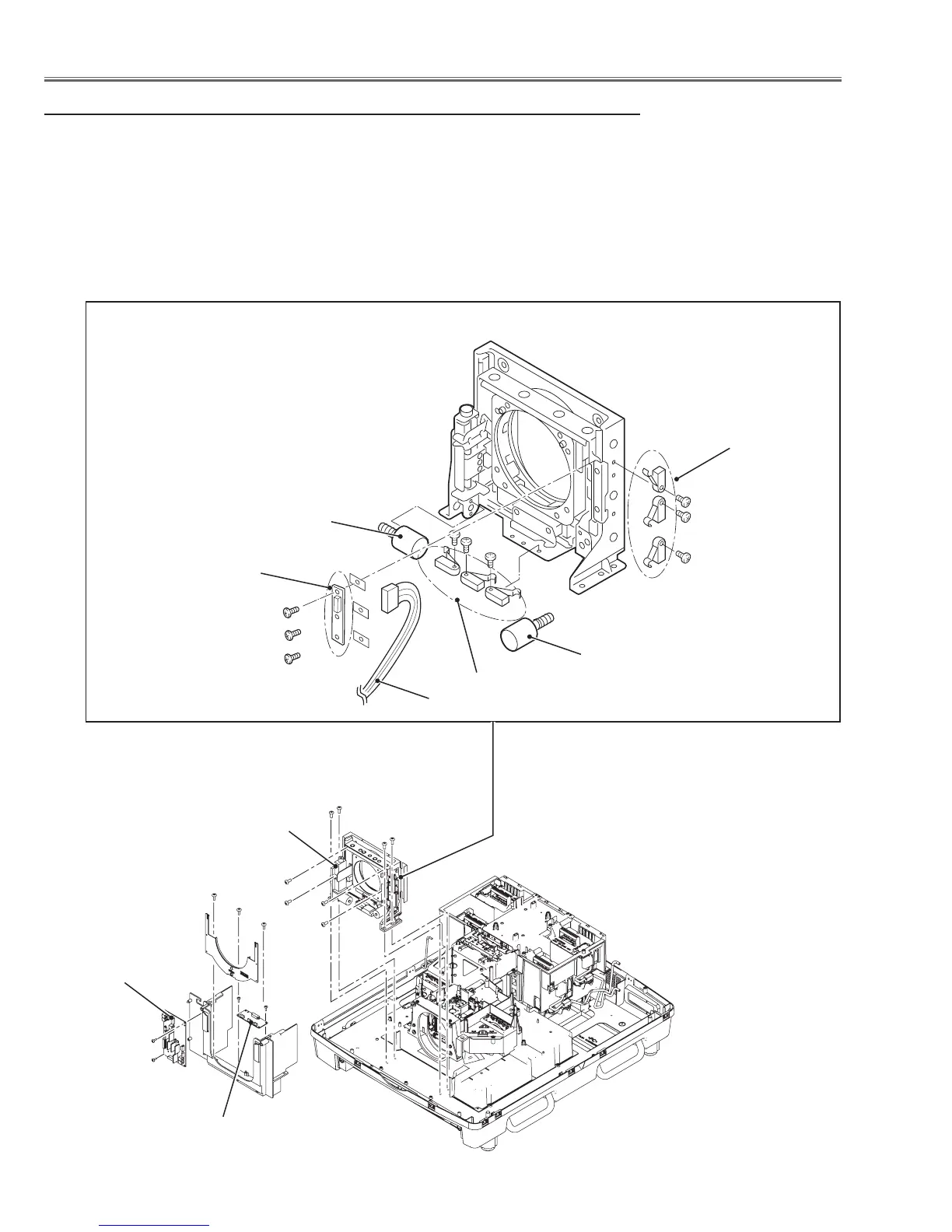

12 Lens shift assy removal
(Before disassembling, make sure the lens should be adjusted to the center po-
sition.)
1 Remove 2 screws-A (T3x8) to remove the motor board.
2 Remove 2 screws-B (T3x8) to remove the lens net board.
3 Remove 3 screws-C (T4x10) to remove the lens shift cover.
4 Remove 4 screws-D (M4x12) and 4 screws-E (M4x12) to remove the lens shift assy.
Sensor switch Y
Sensor switch X
Lens shift motor (L/R)
Lens shift motor (U/D)
Cord
Lens base net board
A
A
B
B
C
C
C
E
D
D
D
D
E
E
E
Lens shift assy
Motor board
Lens net board
To Next Page
