-24-
Mechanical Disassembly

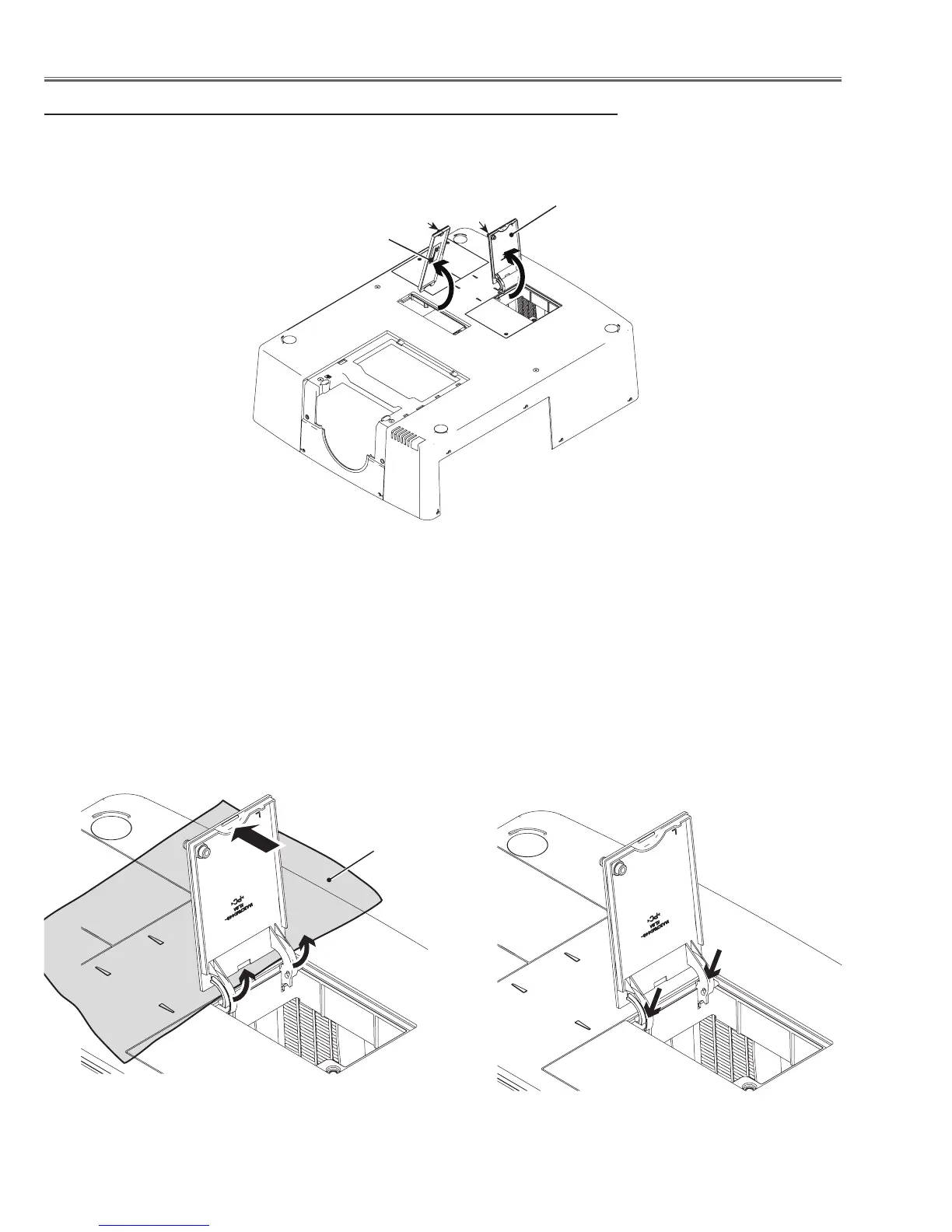

2-1 Lamp cover and PBS cover removal
1 Loosen 1 screw-A and open the Lamp cover.
2 Loosen 1 screw-B and remove the PBS cover.
Lamp cover
PBS cover
A
B
Note on removing the Lamp cover
To avoid the scratch on the cabinet top, put a protec-
tive sheet between the edge of the lamp cover and the
cabinet top.
Open the lamp cover fully until the guide of the groove
ends come on the shafts of the cabinet top and then
gently press top of the lamp cover in the arrow direc-
tion.
Note on mounting the Lamp cover
Set the guide groove ends of the lamp cover onto the
shafts of the cabinet top. Gently press the handles on
the lamp cover until it clicks.
Protective sheet
To Next Page
