-65-
Optical Adjustment

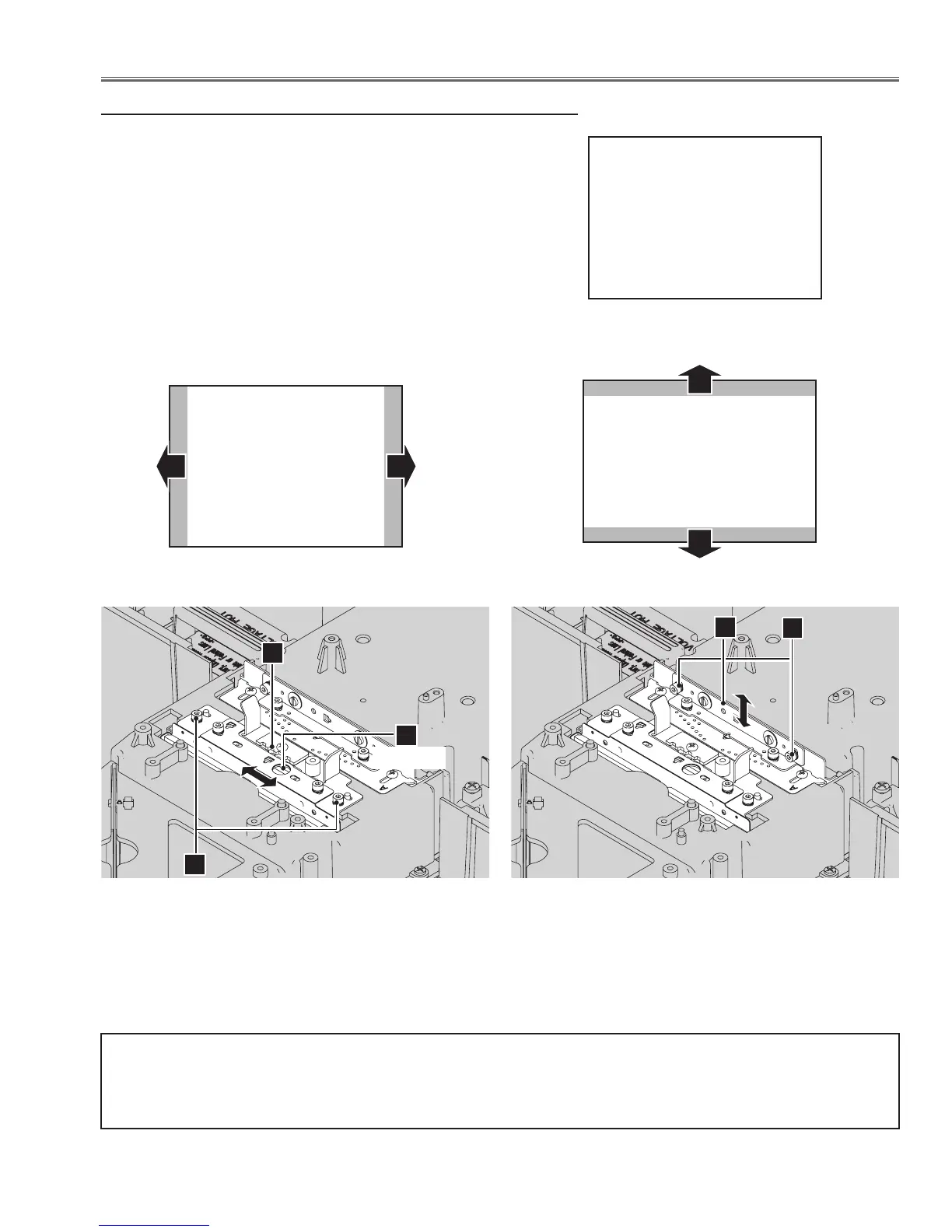

v Integrator and PBS adjustment-2
1 Move the integrator-(OUT)/PBS and integrator(IN) to remove the
color bands on the top/bottom or left/right of the screen.
1) To adjust the image horizontally as shown in Fig.4-1, move the
slot C by using a slot screwdriver.
2) To adjust the image vertically as shown in Fig.4-2, turn the screw
F by using a hex driver.
2 Tighten screws A, B and D to fix the Integrator(OUT)/PBS and
Integrator(IN) unit.
(Target screen image)
Fig.4-1
Fig.4-2
After completing the optical center adjustment, replace the optical adjustment tools with the polarized
glass/optical filter assy and connect the LCD panel cables and connectors on the main board.
A
C
F
D
B
(Bottom)
To Next Page
