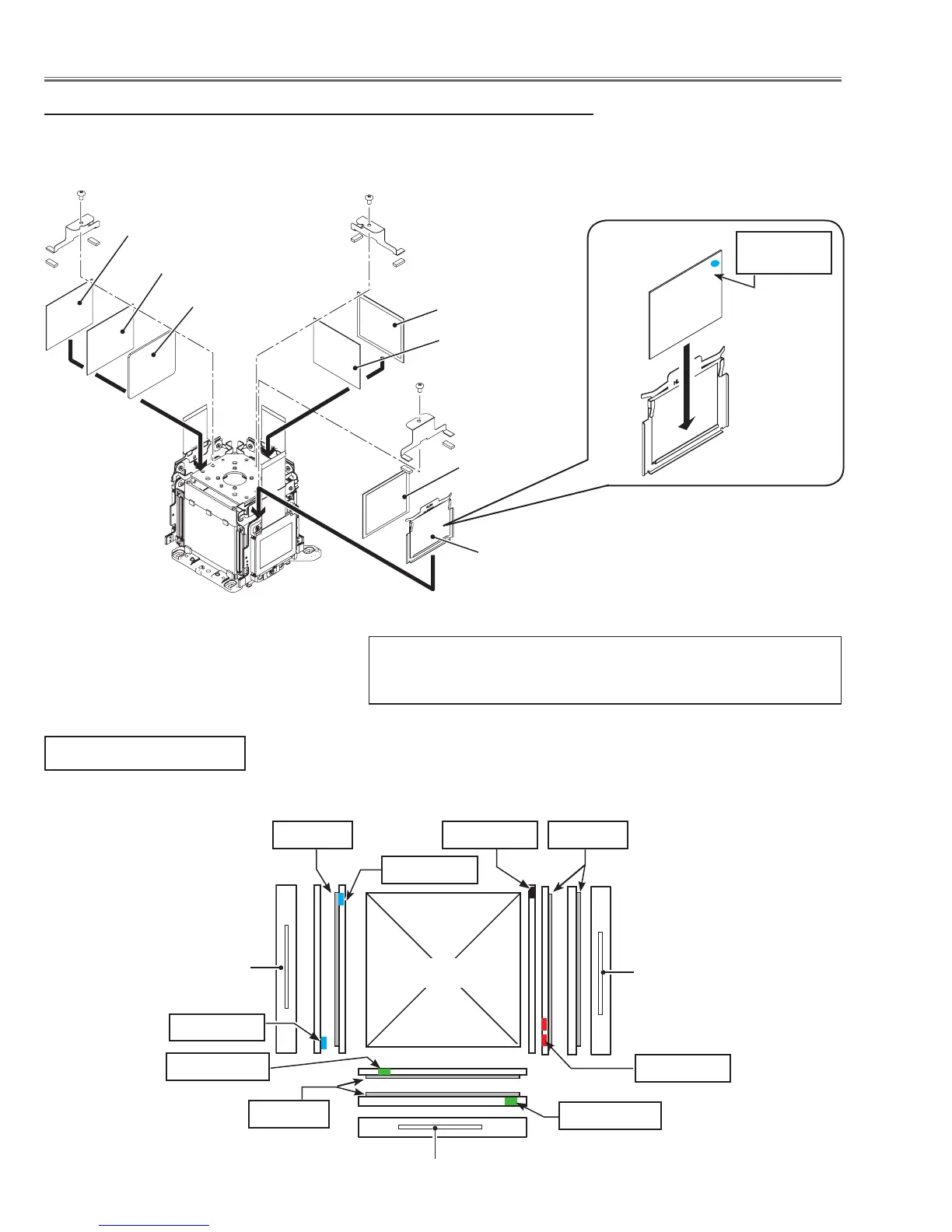

Optical Parts Disassembly
2-1 Polarized glasses(OUT)/pre-polarized glasses removal
Remove 1 screw-B (M2.5x4) on each stopper and take the polarized glasses
upward off.
B
B
B
Polarized glass(OUT/R)2
Polarized glass(OUT/R)1
Polarized glass
(OUT/G)2
Polarized glass
(OUT/G)1
Pre-Polarized
glass (OUT/B)1*
Polarized glass
(OUT/B)2
(Green)
(Red)
(Blue)
Mount the pre-polarized glasses and polarized glasses as shown in the figure below.
Mounting direction
LCD panel/Prism top view
B-LCD panel
G-LCD panel
R-LCD panel
Prism
Film side
Film side
Film side
Green Marker
Blue Marker
Black Marker
Green Marker
Blue Marker
Red Marker
Condenser lens
* When removing the outer Pre-polar
-
ized glass(OUT/B)1, remove the
inner Polarized glass(OUT/B)2 first.
Otherwise the edge of the holder
may scratch the surface of polar-
izged glass.
Blue Marker
(Behind)
* Note on handling the pre-polarized glass(OUT/B)1
Pre-polarized glass(OUT/B)1 is a very sensitive parts. Grab the edge of
the glass by new gloves when handling the polarized glass.
