-45-

Optical Parts Disassembly

A

A

LCD panel/prism

top view

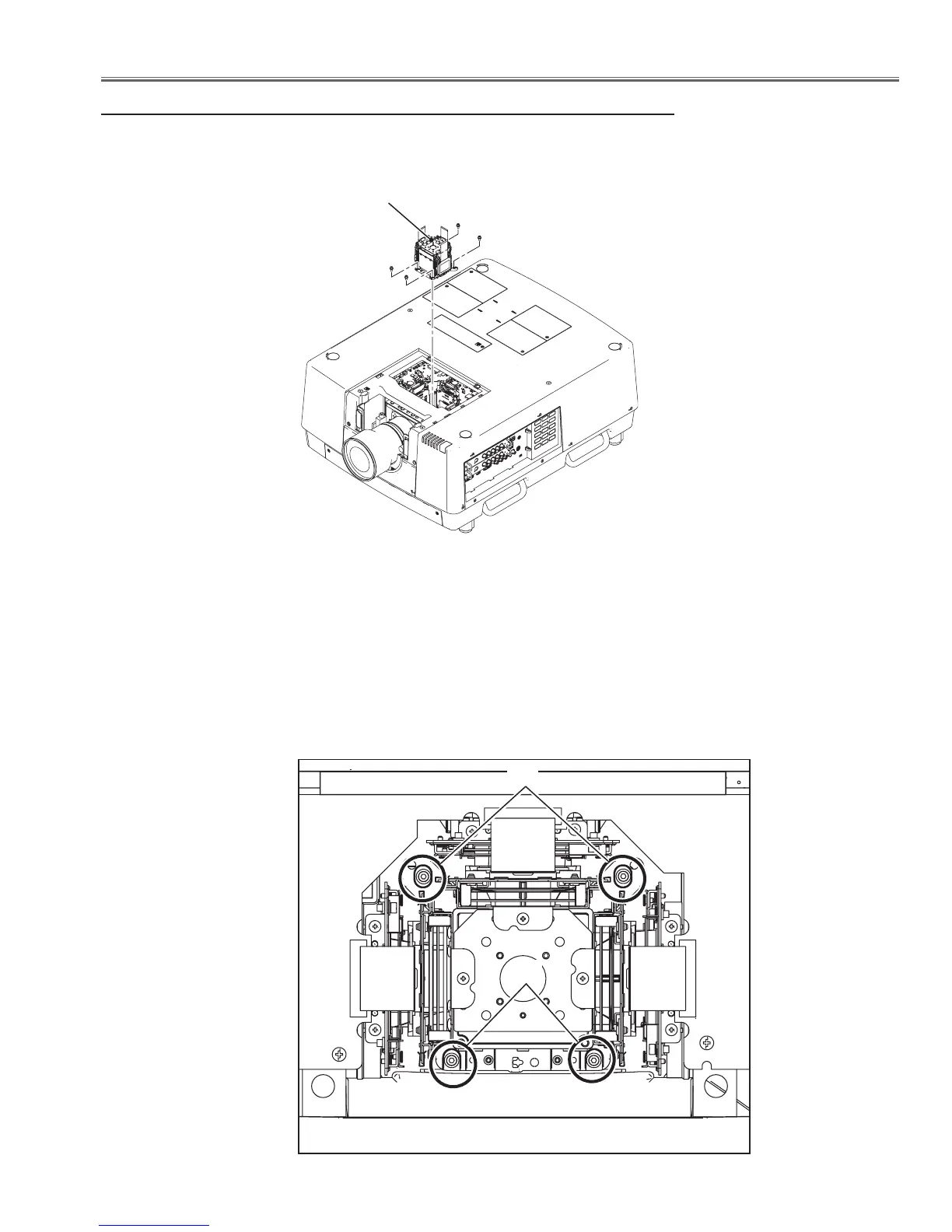

2 Panel/Prism assy removal

Remove 4 hex screws-A (M2.5x6) to remove the panel/prism assy upward.

A

A

Panel/Prism assy
