-48-
Optical Parts Disassembly
3 Polarized glass(IN)/Optical filter assy removal

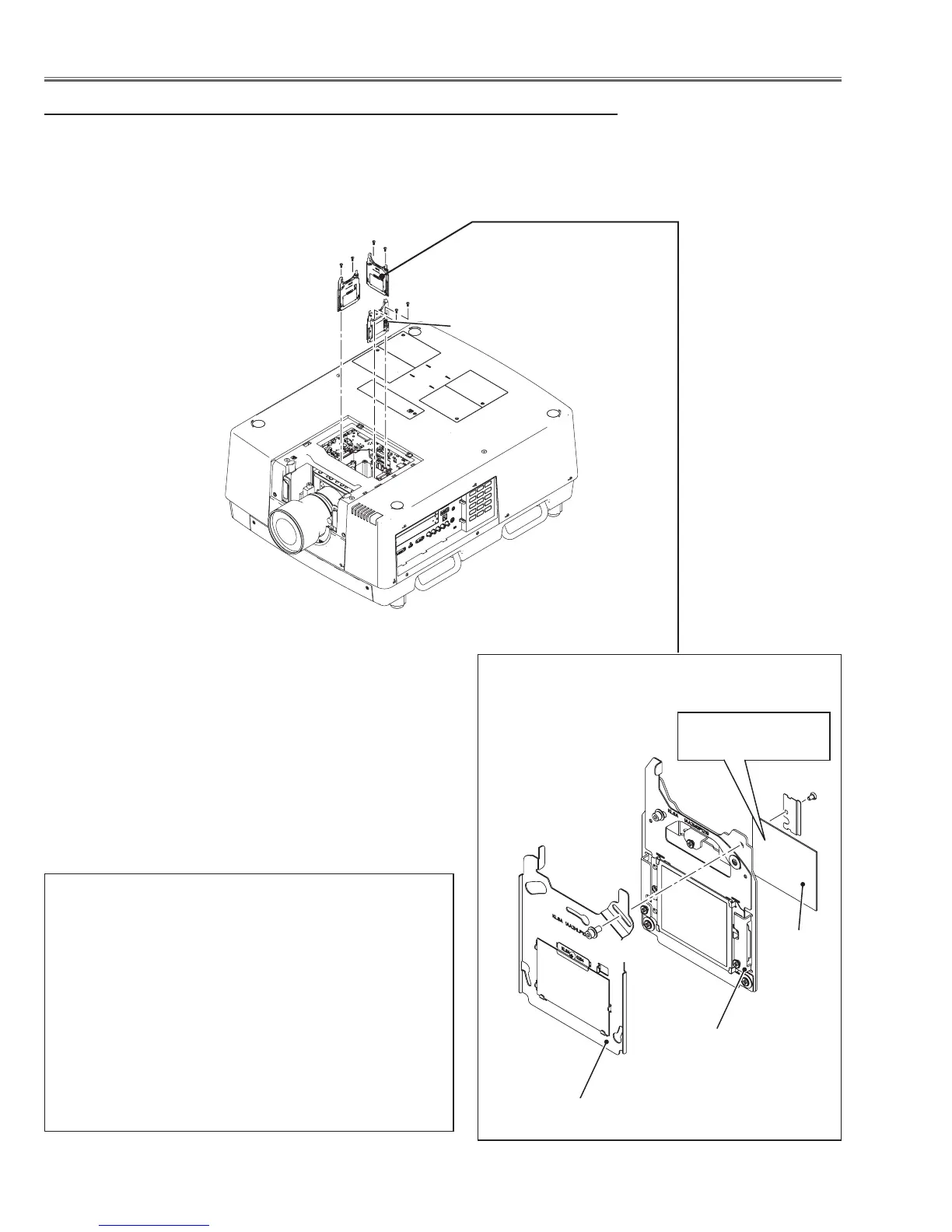

Remove 2 screws-A (M2.6x6) on each stopper and take the polarized glasses up-
ward off.
A
A
A
* Note on handling the polarized glass (IN) assy
Care the following points to maintain the Polarized glass (IN)
assy.
- When removing the dust on the outer surface of the Polarized
glass (IN) assy, wipe with the soft cloth gently.
- When removing the dust on the inner surface of the Polarized
glass (IN) assy, The inner surface of the Polarized glass(IN/
R)1, Polarized glass(IN/B)1 and Polarized glass(IN/G)1 have
a very sensitive surface. Never touch or wipe the surfaces.
When removing the dust, use a commercial (inert gas) air
spray to remove them. Never use organic solvents. Grab the
edge of the glass by new gloves when handling the polarized
glass.
Optical filter (ICV) assy
Polarized glass (IN)
assy
(M3x6)
Polarized glass(IN)/
Optical filter assy
Never touch or wipe
the surface here
Polarized
glass (IN)1
To Next Page
