Parts Location Diagrams

KL8-HF15000L00

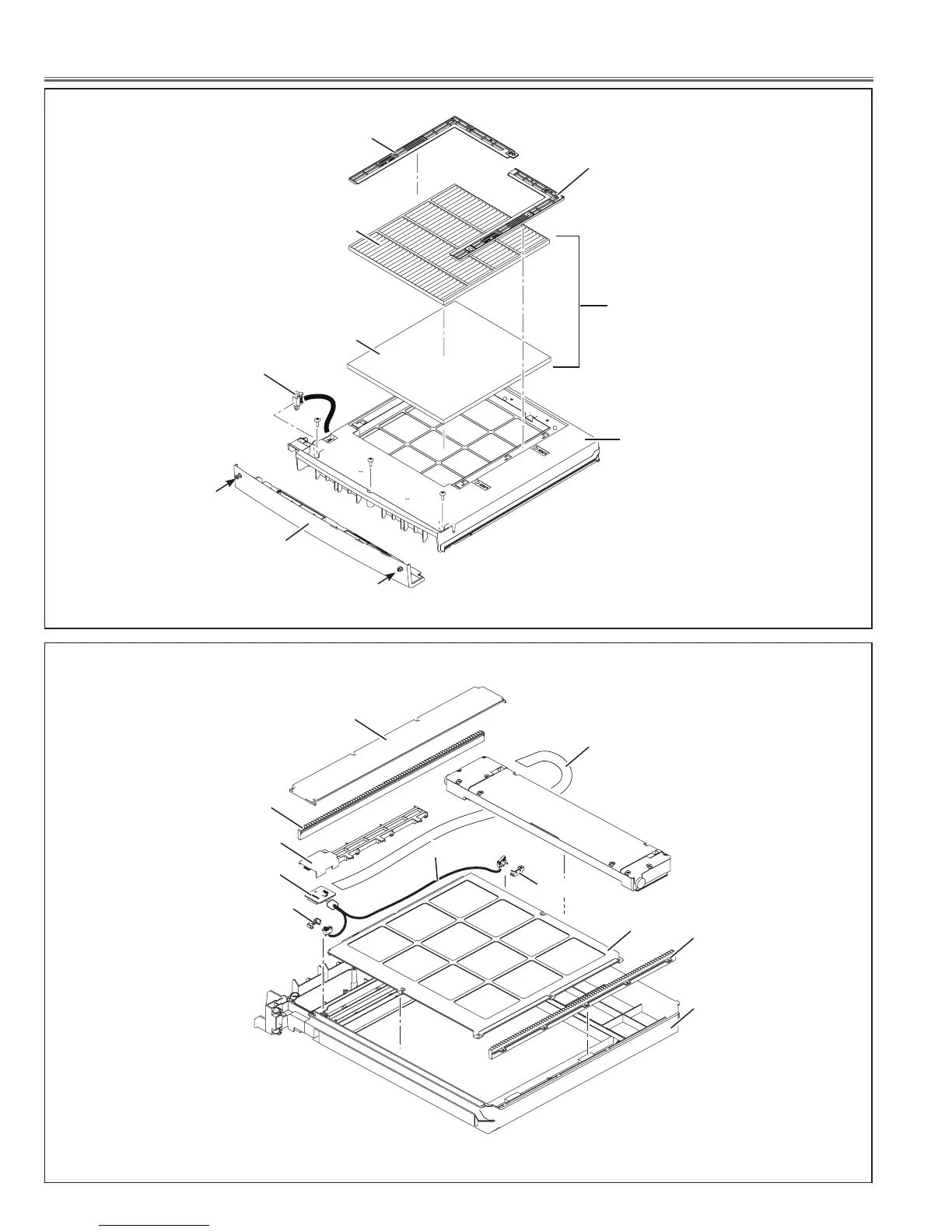

AMC unit-1 assembly

C03-15

C03-14

C04-2

C04-1

ZAMF12&8

C09

S02

S02

AMC unit-2 assembly

C03-8

C03-11

C03-9

C03-19

C03-21

C03-10

C03-11

C03-16

C03-18

C03-13

C03-13

C03

C04

* C03 includes C03-1 to C03-21.

* C04 includes C04-1 and C04-2.
