-50-

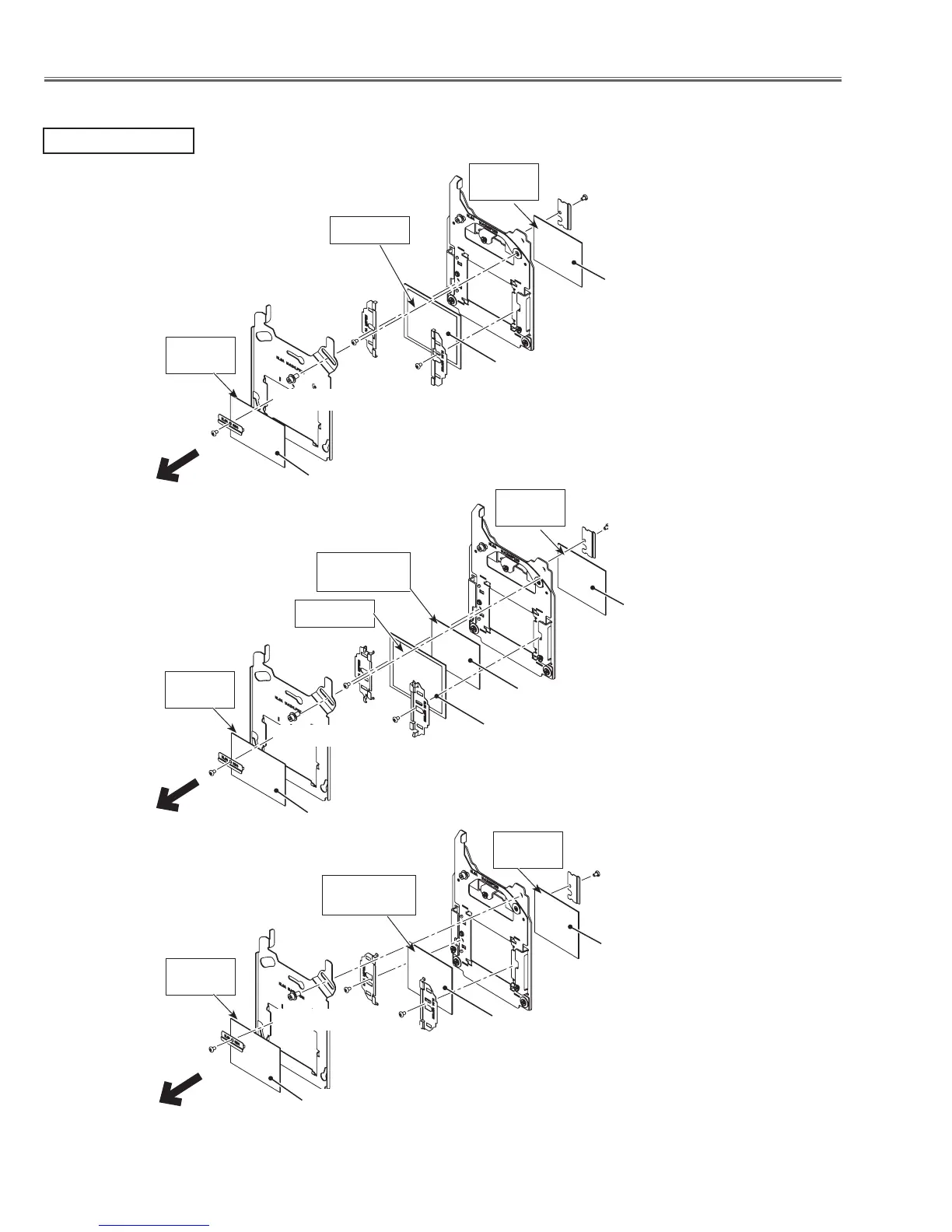

Optical Parts Disassembly
Prism side
Optical filter(ICV)
TYPE-R
Polarized glass Assy for Red
Polarized glass Assy for Green
Polarized glass Assy for Blue
Polarized glass(IN/R)1*
Pre-Polarized glass(IN/G)
(M2x2)
(M2x2)
(M2x2)
(M2x2)
(M3x6)
(M2x2)
(M3x6)
(M2x2)
(M2x2)
(M2x2)
Polarized glass(IN/G)1*
Optical filter(IN/B)2
Optical filter(ICV)
Optical filter(ICV)
Polarized glass(IN/B)1*
Optical filter(IN/B)2
(M2x2)
(M3x6)
(M2x2)
(M2x2)
(M2x2)
Film side
Marking
(Behind)
Marking
(Behind)
Film side
No mounting
direction
Marking
(Red)
Marking
(Black)
Marking
(Red)
Prism side
Prism side
Polarized glass(IN/G)2
Marking
(Behind)
No mounting
direction
