The multi-module mode allows one
operator to simultaneously control up
to 4 (LMA100P: 4 units connectable;
LMA110S: 2 units connectable) heater
modules connected to a single Control
Module� This is possible by
connecting each heater module to
a Mod Comm port on the back of the
Control Module�
To initiate an additional heater module:
§ Connect the inter-module cable�
§ Power off and back on again the heater
module that powers the control module
(press Enter to override Warm-up)�
§ On power up, a scan is initiated to
determine which Mod Comm ports have
a heater module attached� If more than
one is connected, the screen will display
in the Multi-module mode� Note that
a double set of bars shows the active
heater module�

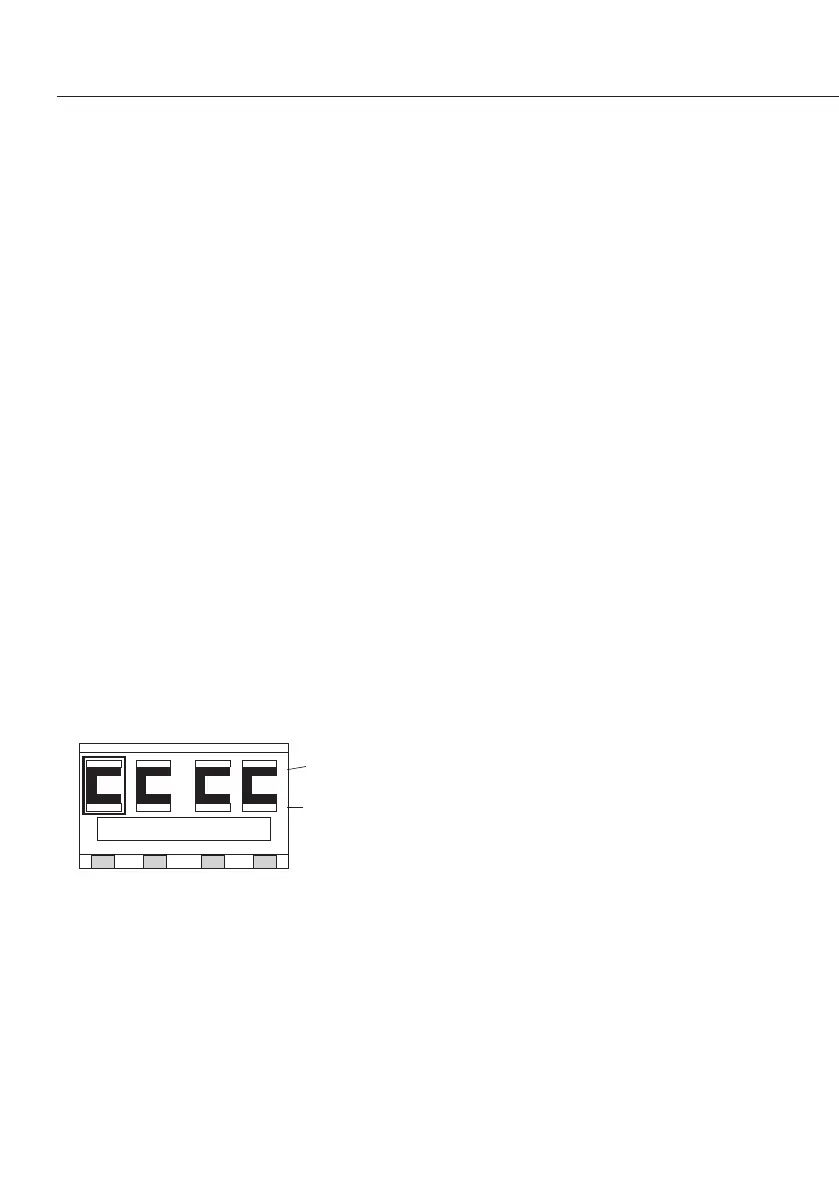

Multi-module screen description:
§ Heater module icon: Separate display of
heater module information including:
§ Status: warm-up, test done, pass/fail,
minutes in test
§ Test result
§ Current temperature and temperature
status
§ Program name: current program for
active heater module
§ Time and date
§ Recall soft key: Select program for
active heater module
§ Setup soft key: Access to global setup
§ Service soft key: Access to specific
functions for active heater module
§ Users soft key: Access to list of users for
active heater module
§ Warning box: Messages specific to
active heater module
Multi-module key functions:
§ Navigational keys (right and left
Arrows): Moves double bars to activate
heater module (or press keys 1–4)�
§ Start|Stop: Initiates test for active
heater module
Multi-module Mode
Status
Result
}
Temperature info
Test Done
PASS
Test Done
DRY MILK POWDER 09/07/2 012 02:14 PM
Recall Setup
Users Service
Press START ke y to begin test
Standby
3.45 % M
60
97
Current
Temp 1
2.81% M
105
105
Current
Standby
7.48 % M
60
60
Current
Standby
7.44 % M
150
149
Current
1
2
3 4
3.5 mins
