SATO S84 - Information Mode

4 Operation and Configuration
147
S84-ex/S86-ex Operator Manual
4.2.15 Information Mode

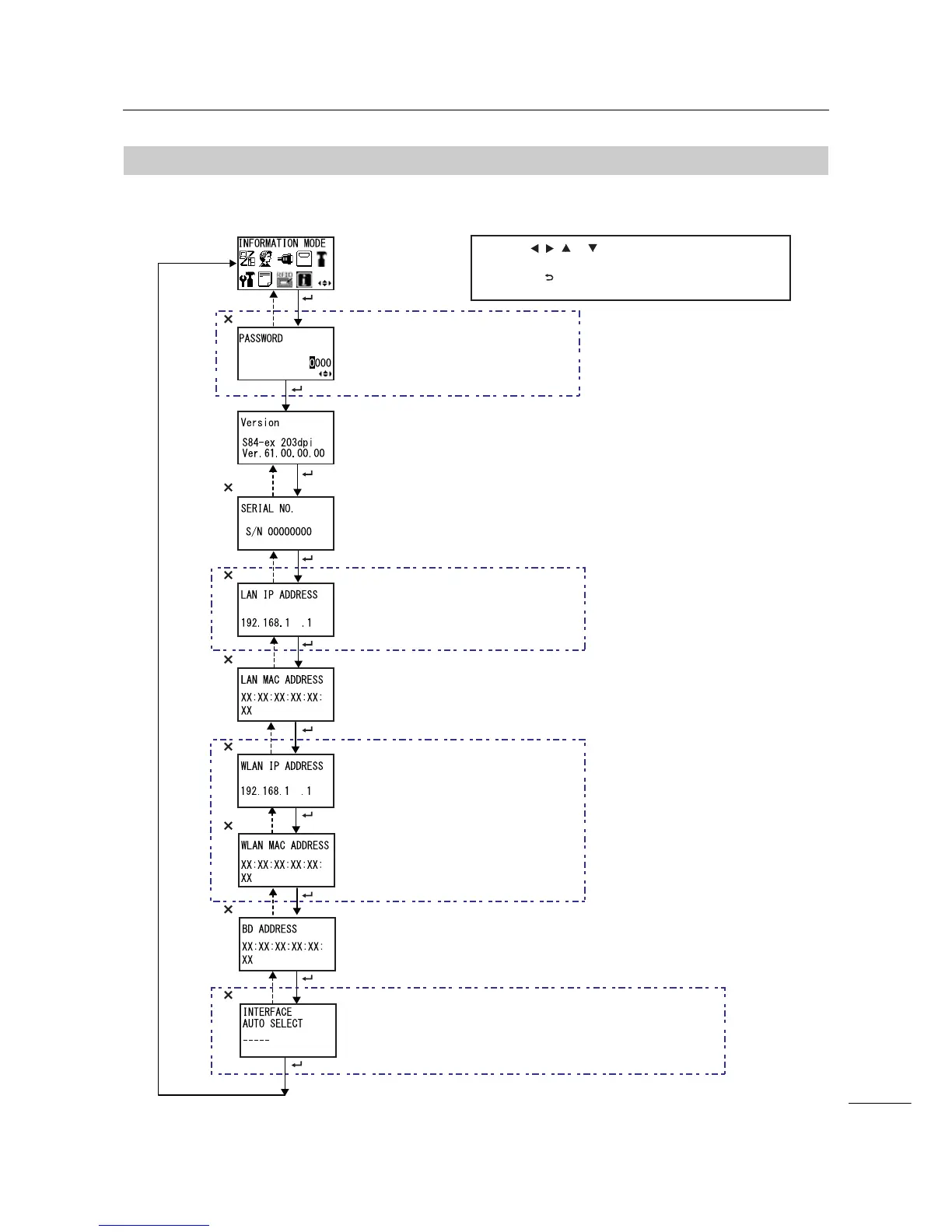

The flowchart shows the sequence of the setting screens for the information mode. The table describes
each setting screen in detail.
* Press the , , or button to select an item or set the value
accordingly. The active arrow icons are shown on the screen.
* Pressing the button on each screen will revert to the
INFORMATION MODE menu.
button
button
button
button
button
Shows as “---.---.---.---”
if an IP address is not acquired
from the DHCP setting.
button
button
button
button
button
button
button
button
button
button
button
button
Shows only when a
wireless LAN unit is installed.
Shows only when the
PASSWORD input is enabled
button
Shows with the following conditions:
Manual setting: DISABLE
Auto settings (not confirmed):-----
Auto settings (confirmed):IEEE1284/RS-232C/LAN/USB/WLAN/Bluetooth
