S84-ex/S86-ex Operator Manual
4.1 Display and Operation
The display of the printer varies depending on the following modes:
• Normal mode: refer to Section 4.1.1 Normal Mode Display and Icons.
• Setting mode menu: refer to Section 4.1.2 Setting Mode Menu and Icons.
• Error display: refer to Section 4.1.3 Error Display and Icons.
• Setting display: refer to Section 4.1.4 Setting Display.
4.1.1 Normal Mode Display and Icons
In normal mode, the screen shows the following printer status.

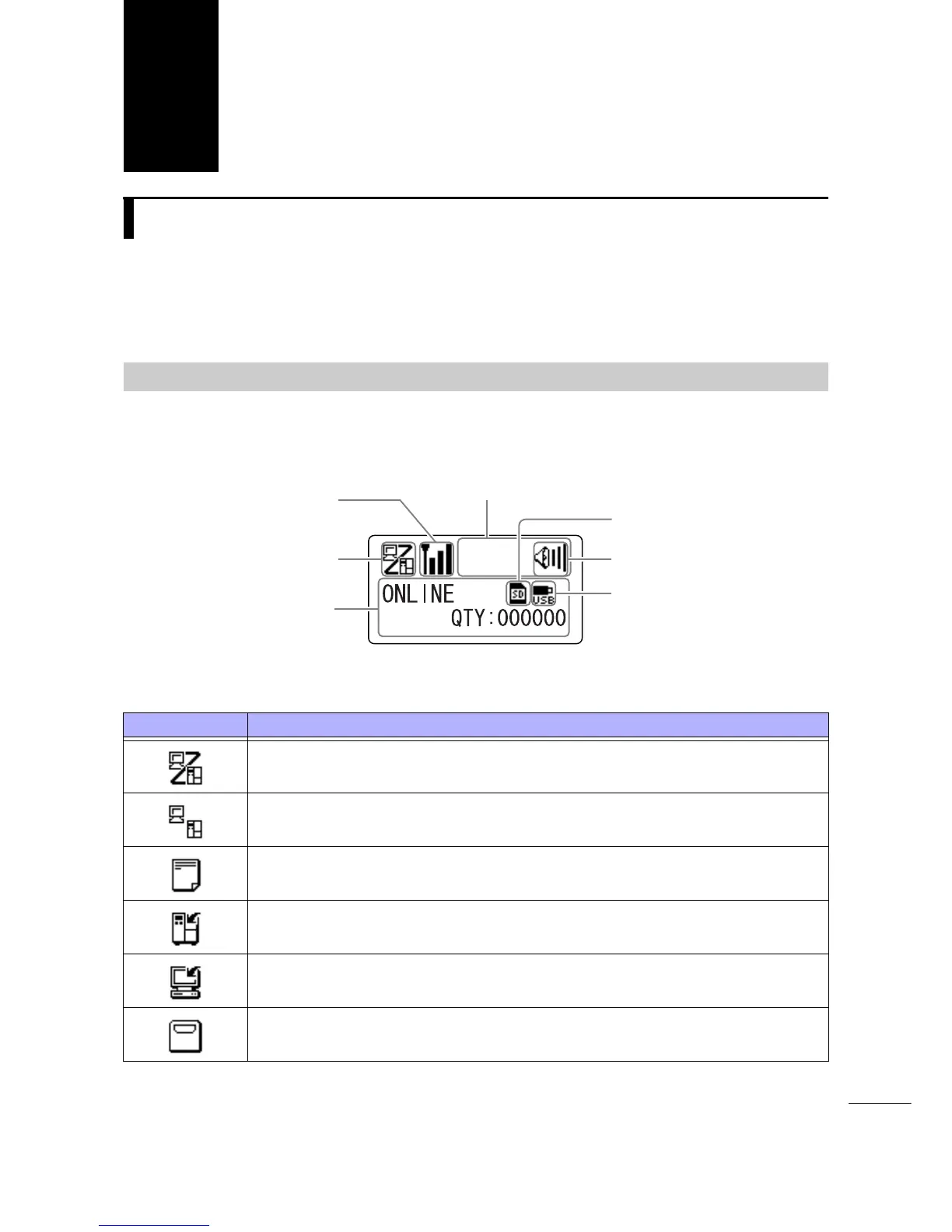

• Printer mode
4
Operation and
Configuration
Icon Description
Shows when the printer is in online mode.
Shows when the printer is in offline mode.
Shows when the printer is in test print mode and hex dump print mode.
Shows when the printer is in download mode.
Shows when the printer is in upload mode.
Shows when the printer is in memory mode.
Printer mode icon
Trace mode status icon,
WLAN field intensity
status icon or Bluetooth
connection status icon
Message display
SD card icon
USB memory icon
Buzzer volume icon
Warning icons
