7.8 Media Motion of the Printer Operation
7.8.1 Feed Motion
When the pitch sensor is disabled, media will be fed while pressing the FEED button.
When the pitch sensor is enabled, one media will be fed according to the backfeed motion setting.
7.8.2 Paper End
When the I-mark sensor level has changed to high for 15 mm (0.6”), it will be considered as the paper
end.

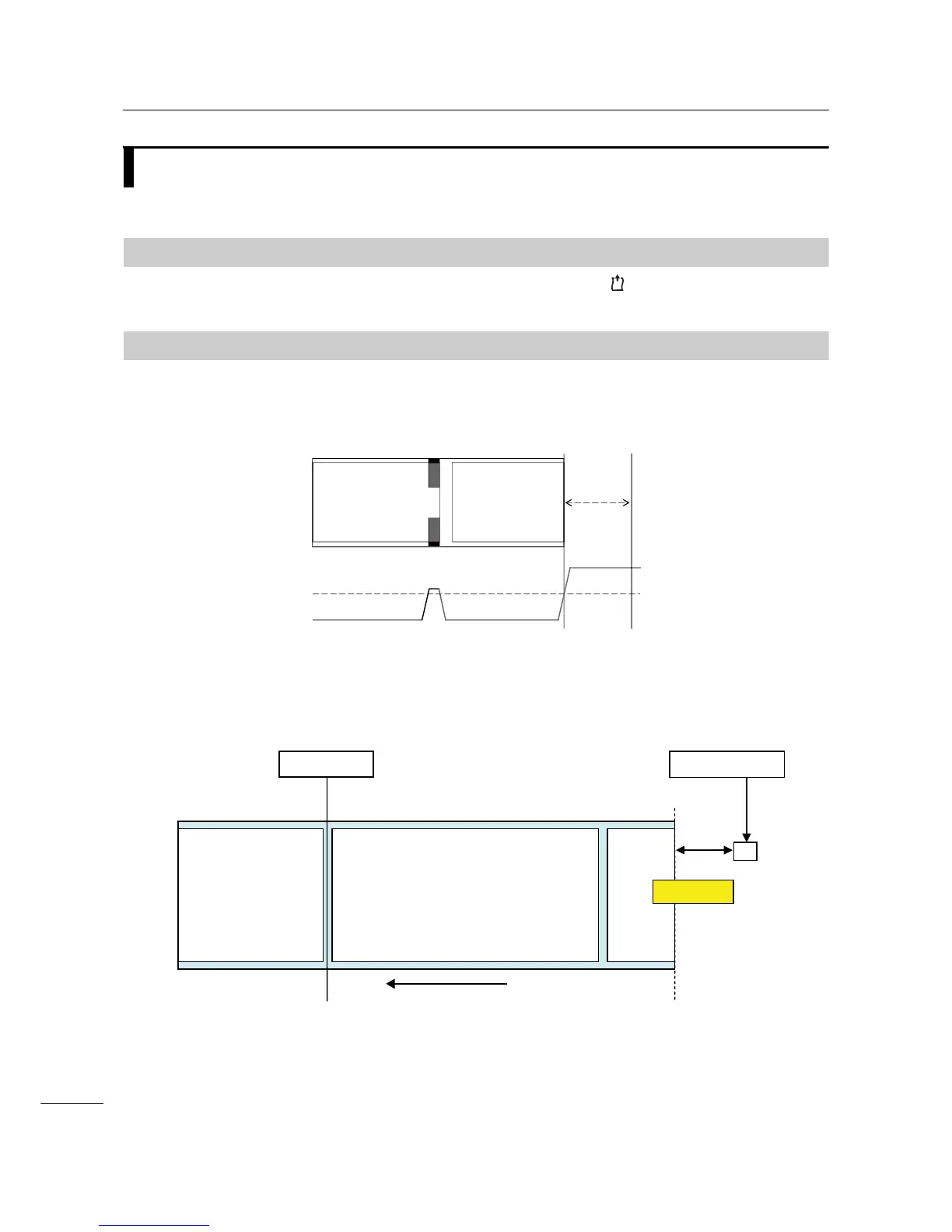

Paper End Detection in Feed Operation
After the paper end is detected, the printer stops the feed operation immediately and generates an error.
15 mm
Detection of paper end error
2.5 V
I-mark
sensor
level
Media feed direction
Print head
I-mark sensor
15 mm
(0.6”)
(1) (2)
