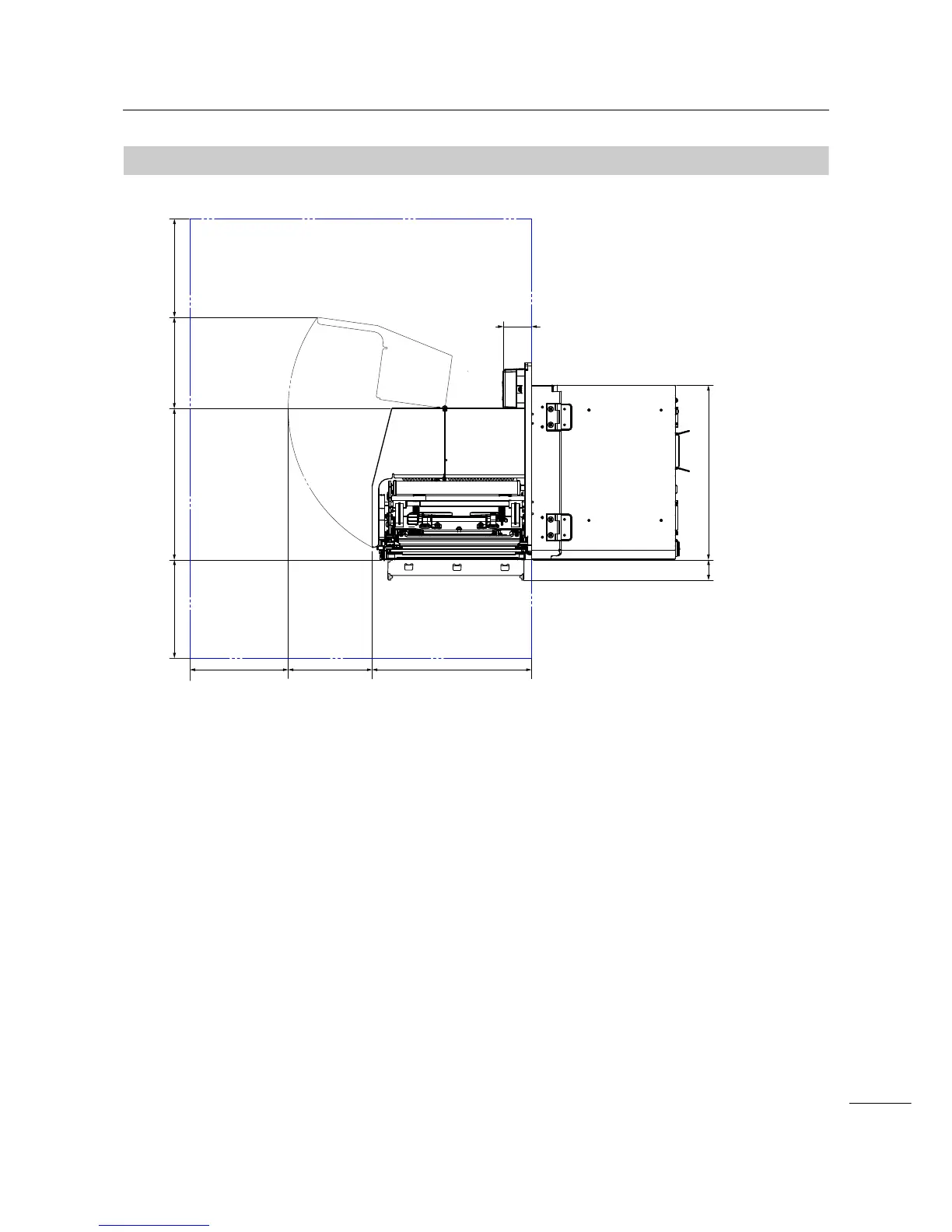

2.2.5 Media Dispensed View (S86-ex printer)
150 mm (5.9”) 150 mm (5.9”)
150 mm (5.9”)
231 mm (9.1”)
243 mm (9.6”)
266 mm (10.5”)
43 mm (1.7”)
131 mm (5.15”)
168 mm (6.6”)
Americas: Standard/Right Hand
Europe/Asia: Left Hand
36 mm
(1.4”)
