2.2 Installation Space
For easy operation and correct airflow, make sure that there is sufficient space around the printer.
The illustrations in this section show the printer from different angles, providing dimensions and spatial
requirements.

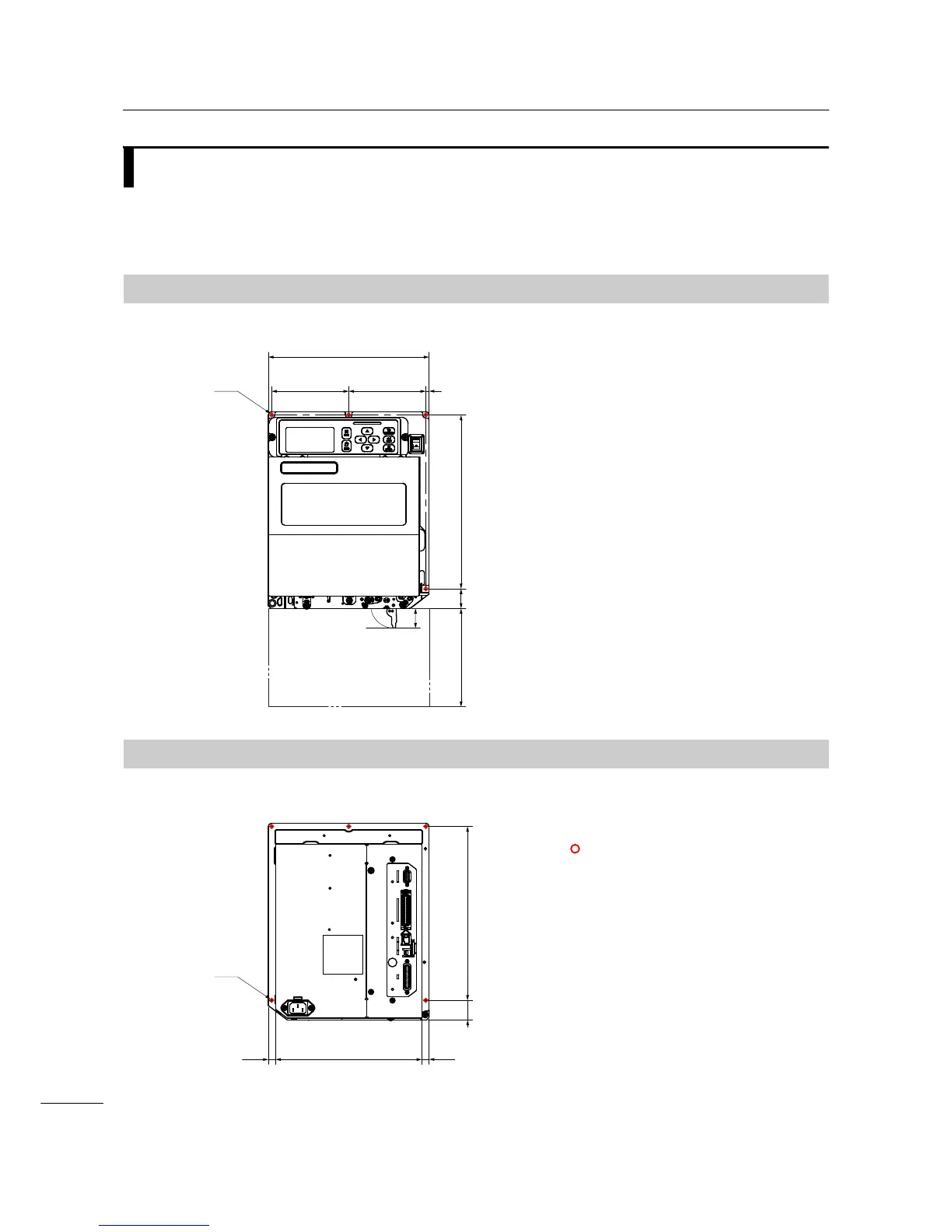

2.2.1 Front View (S84-ex/S86-ex printer)
2.2.2 Rear View (S84-ex/S86-ex printer)
245 mm (9.6”)
117.5 mm
(4.6”)
117.5 mm
(4.6”)
5 mm (0.2”)
265 mm (10.4”)
30 mm
(1.2”)
150 mm (5.9”)
Ø 5 mm (0.2”)
5 positions
36 mm
(1.4”)
Americas: Standard/Right Hand
Europe/Asia: Left Hand
223 mm (8.8”)
11 mm (0.4”)
11 mm (0.4”)
265 mm (10.4”)
Ø 5 mm (0.2”)
5 positions
30 mm
(1.2”)
indicates five positions of
bores for installing the printer
to a support structure.
Americas: Standard/Right Hand
Europe/Asia: Left Hand
